AT-6000
Advanced Wire Tracer Series
identify breakers
Locate and trace Energized and De-energized wires, automatically
The AT-6000 Series,
available in two different kits, combines
a receiver and powerful transmitter to locate Energized and
De-energized wires, breakers, fuses and easily find breaks and
shorts. Whether you’re a novice or an expert, Amprobe advanced
wire tracers will help you get the job done fast.
The AT-6000-R Receiver
detects the signal in wires and cables
using two methods: active tracing method (with the Transmitter)
and passive tracing method (without the Transmitter). In hard-to-
reach areas, the Receiver’s Tip Sensor can be used to trace wires in
corners, tight spaces and junction boxes.
The AT-6000-T Transmitter
works on Energized and De-energized
circuits up to 600 V AC/DC in Category I through Category III
electrical environments and features high signal, low signal,
and loop modes. The Breaker Identification feature eliminates
confusion of multiple false positives, common with older
technology tracing tools, by identifiying the one correct breaker
or fuse with the highest recorded signal.
The CT-400 Signal Clamp
(optional for AT-6020, included with
AT-6030) is used for applications where is no access to the bare
conductors by enabling the AT-6000-T Transmitter to induce a
signal into a wire through the insulation.

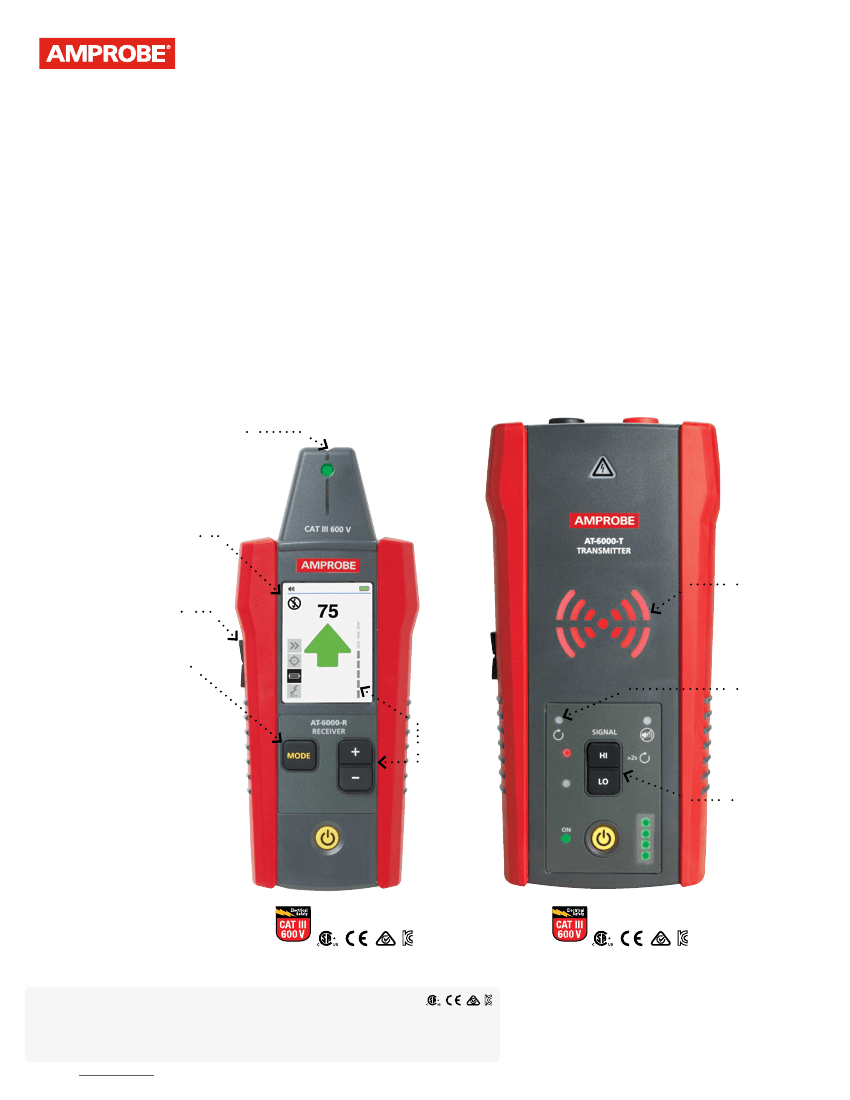

Tip Sensor
Trace wires in
tight spaces
Full Color
TFT-LCD display
Green arrow indicates
the correct breaker is
identified
Volume
Adjustment
Shows whether
transmitter is in
high, low or loop
mode
Transmission
Mode Indicator
Four Tracing Modes
Quick Scan Wire Tracing
allows for quick wire
detection at a longer
distance
Precision Wire Tracing
precisely pinpoints wires
or faults located behind
walls, floors, or ceilings
Breaker Identification
is an automatic sensitivity
feature that allows for
quick and easy breaker
locating without the
guesswork
Non-Contact Voltage
Detection
utilizes passive
tracing without the
transmitter to verify if
a wire is Energized
Loop Mode
Indicator
Sensitivity
adjustment
High Signal Mode
Loop Mode
Low
(Precision)
Mode
Receiver
AT-6000-R
AT-6000-T
Transmitter
Safety Certification
All Amprobe tools, including the Amprobe AT-6000 Series, are rigorously tested for safety, accuracy,
reliability, and ruggedness in our state-of-the-art test lab.
In addition, Amprobe products that measure
electricity are listed by a 3rd party safety lab, either UL or CSA. This system assures that Amprobe products meet or
exceed safety regulations and will perform in a tough, professional environment for many years to come.
Amprobe
®
| info@amprobe.com | Fluke Corporation, Everett, WA 98203 | Tel: 877-AMPROBE (267-7623)
©2018 Amprobe
®
For detailed specifications and ordering go to amprobe.com 6009730 A
amprobe.com
Most accurate wire tracing in its class with
eight sensitivity modes
Reduce downtime with immediate and
unambiguous breaker identification
Intuitive transmitter automatically senses
whether the system is energized or
de-energized

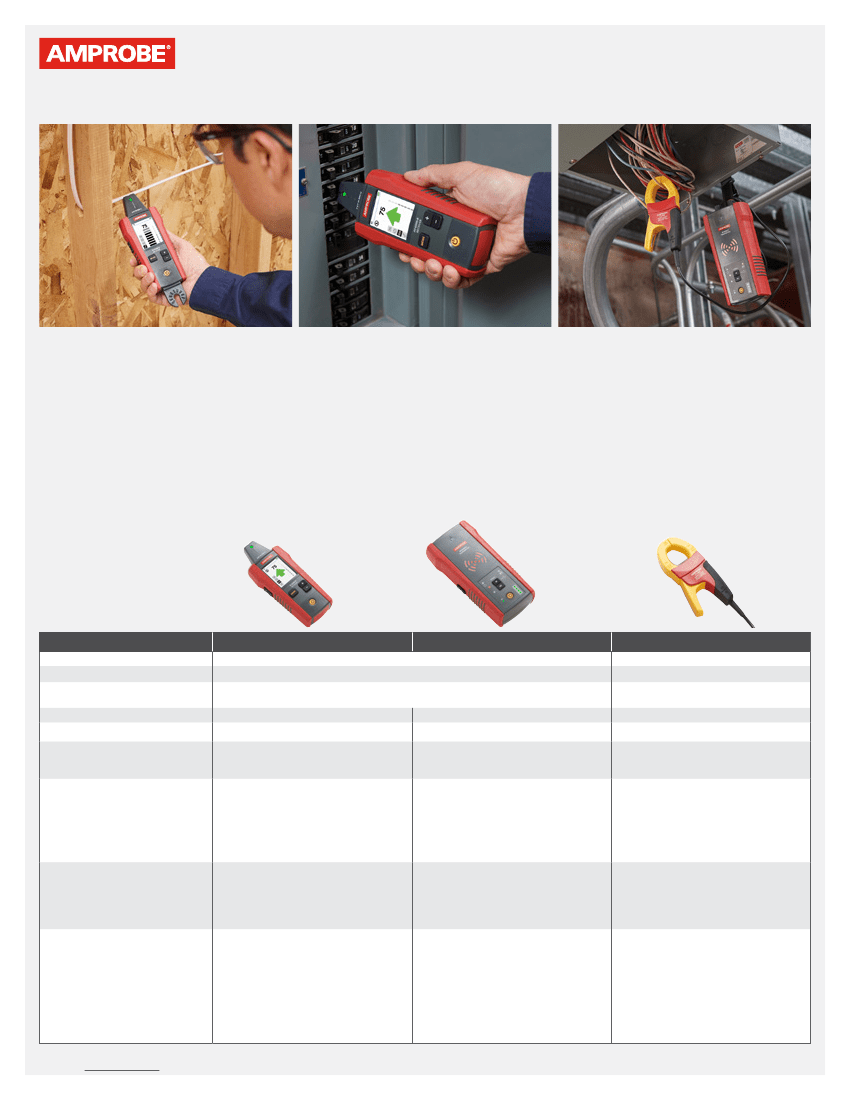

Main Applications
• Trace Energized and De-energized wires
behind walls, ceilings or floors
• Identify breakers and fuses quickly and
accurately
• Non-contact voltage mode and passive
tracing without the use of the transmitter
Special Applications
•
•
•
•
•
GFCI-protected circuit wire tracing
Find breaks, openings, and shorts
Trace wires in metal conduit
Trace non-metallic pipes and conduits
Trace shielded wires through signal
detection in junction boxes
• Trace underground wires
• Trace low voltage wires and data cables
• Sort bundled wires
• Map circuits using test leads connection
• Trace breakers on system with light
dimmers
• CT-400 signal clamp (AT-6030 kit) to
improve accuracy and performance when
there is no access to bare conductors
Features
AT-6000-R Receiver
Measurement category
Operating voltage
Operating frequency
Hazardous voltage detection
Signal indications
Response time
See NCV detection
Numeric, bar graph display and audible beep
Tip Sensor (energized/de-energized): 500 ms
NCV: 500 ms
Battery voltage monitoring: 5 sec
CAT III 600 V
0 to 600 V AC/DC
Energized: 6.25 kHz
De-Energized: 32.768 kHz
> 30 V AC/DC
LEDs and audible beep
Line voltage monitoring: 1 sec
Battery voltage monitoring: 5 sec
Energized circuit:
HI mode: 60 mA RMS
LO mode: 30 mA RMS
De-energized circuit:
HI mode: 130 mA RMS
LO mode: 40 mA RMS
Loop mode: 160 mA RMS
De-energized circuit:
LOW: 29 V RMS, 120 Vp-p
HIGH: 33V RMS, 140 Vp-p
With CT-400:
loop model: 31 V RMS, 120 Vp-p
AT-6000-T Transmitter
CT-400 Signal Clamp
CAT IV 600 V, CAT III 1000 V
0 to 1000 V AC
Wire tracing: 32.768 kHz
AC current measurement: 45 Hz to 400 Hz
–
–
Instantaneous
Current output of signal (typical)
–
1 mA/A for AC current measurement with
multimeter
Signal voltage output (nominal)
–
De-energized circuit:
2.4 V RMS, 24 Vp-p
Range detection (open air)
Tip sensor (Energized):
Max distance via air: up to 20 ft (6.1 m)
Pinpointing: approx. 1.97 in (5 cm)
Tip sensor (De-energized):
Max distance via air: up to 14.7 ft (4.5 m)
Pinpointing: approx. 1.97 in (5 cm)
NCV detection (40 to 400 Hz):
Max. sensitivity: 90 V up to 6.56 ft (2 m)
Min. sensitivity: 600 V up to 0.39 in (1 cm)
–
–
Amprobe
®
| info@amprobe.com | Fluke Corporation, Everett, WA 98203 | Tel: 877-AMPROBE (267-7623)
©2018 Amprobe
®
For detailed specifications and ordering go to amprobe.com 6009730 A
amprobe.com
Specifications
AT-6000-R Receiver
Display size
Display dimensions
(W x H)
Display resolution
Display type
Display color
Booting time
Backlight
Operating temperature
LCD 2.5 in (6.35 cm)
1.45 x 1.93 in (36.72 x 48.96 mm)
240(RGB) x 320 pixels
TFT-LCD (262 K)
AT-6000-T Transmitter
CT-400 Signal Clamp
–
–
–
–
–
–
–
32 °F to 122 °F (0 °C to 50 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to <122 °F (40 °C to <50 °C)
LEDs
–
–
LEDs
Operating mode LEDs: red
True, 16bit/color
Battery status LEDs: green, yellow, red
< 3 sec
< 2 sec
•
–
-4 °F to 122 °F (-20 °C to 50 °C)
45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH
–
IP 52
3.28 ft (1 m)
0 to 6561 ft (2000 m)
6.00 kV (1.2/50μS surge)
2
IP 40
8 x AA (alkaline or NiMH rechargeable)
Hi/Lo mode: 70 mA
Loop mode with Clamp: 90 mA Consumption
without signal transmission: 10 mA
Hi/Lo mode: approx. 25 h
Loop mode: approx. 18 h
•
1.6 A, 700 V, fast-acting, Ø 6x32mm
–
Approx. 7.2 x 3.66 x 1.97 in
(183 x 93 x 50 mm)
Approx. 6.18 lb (2.8 kg)
Operating humidity
Storage temperature and humidity
Operating altitude
Transient protection
Pollution degree
IP rating
Drop test
Power supply
Power consumption (typical)
Battery life
Low battery indication
Fuse
Maximum conductor Size
Dimensions
(L x W x H)
Weight
Certifications
NOTE:
Refer to user manual for ADPTR-SCT and TL-6000 specifications.
4 x AA (alkaline or NiMH rechargeable)
110mA
Approx. 16 h
•
–
–
Approx. 7.2 x 2.95 x 1.69 in
(183 x 75 x 43 mm)
Approx. 1.25 lb (0.57 kg)
–
–
–
–
–
–
1.26 in (32 mm)
Approx. 5.9 x 2.75 x 1.18 in
(150 x 70 x 30 mm)
Approx. 0.25 lb (0.114 kg)

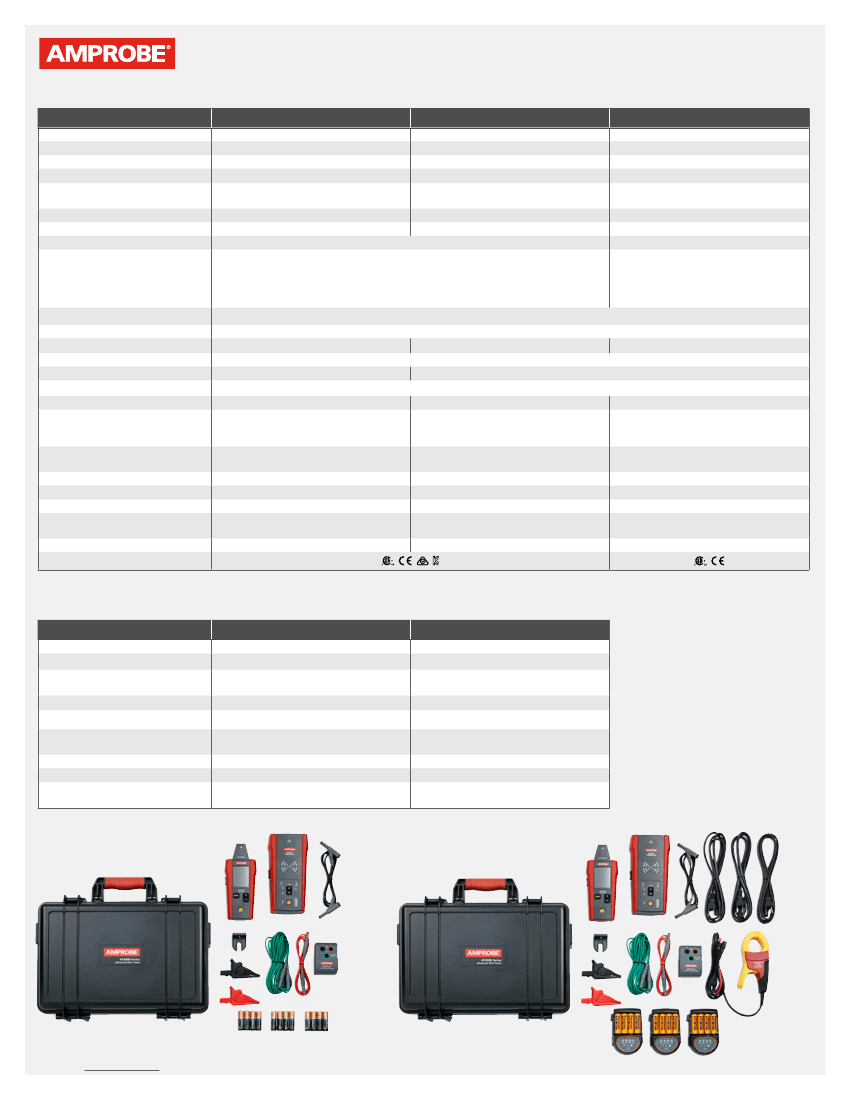

Included in Wire Tracer Kits
AT-6020
AT-6000-R Receiver
AT-6000-T Transmitter
TL-6000 Test Lead and
Accessory Kit
CC-6000 Hard Carrying Case
User Manual
12 - Rechargeable Batteries
(not installed)
3 - Battery Chargers
CT-400 Signal Clamp
12 - 1.5 V AA (IEC R6) Batteries
(not installed)
•
•
•
•
•
–
–
(Optional)
•
AT-6030
•
•
•
•
•
•
•
•
–
Battery chargers and batteries are not available to order separately.
AT-6020
AT-6030
©2018 Amprobe
®
For detailed specifications and ordering go to amprobe.com 6009730 A
Amprobe
®
| info@amprobe.com | Fluke Corporation, Everett, WA 98203 | Tel: 877-AMPROBE (267-7623)
