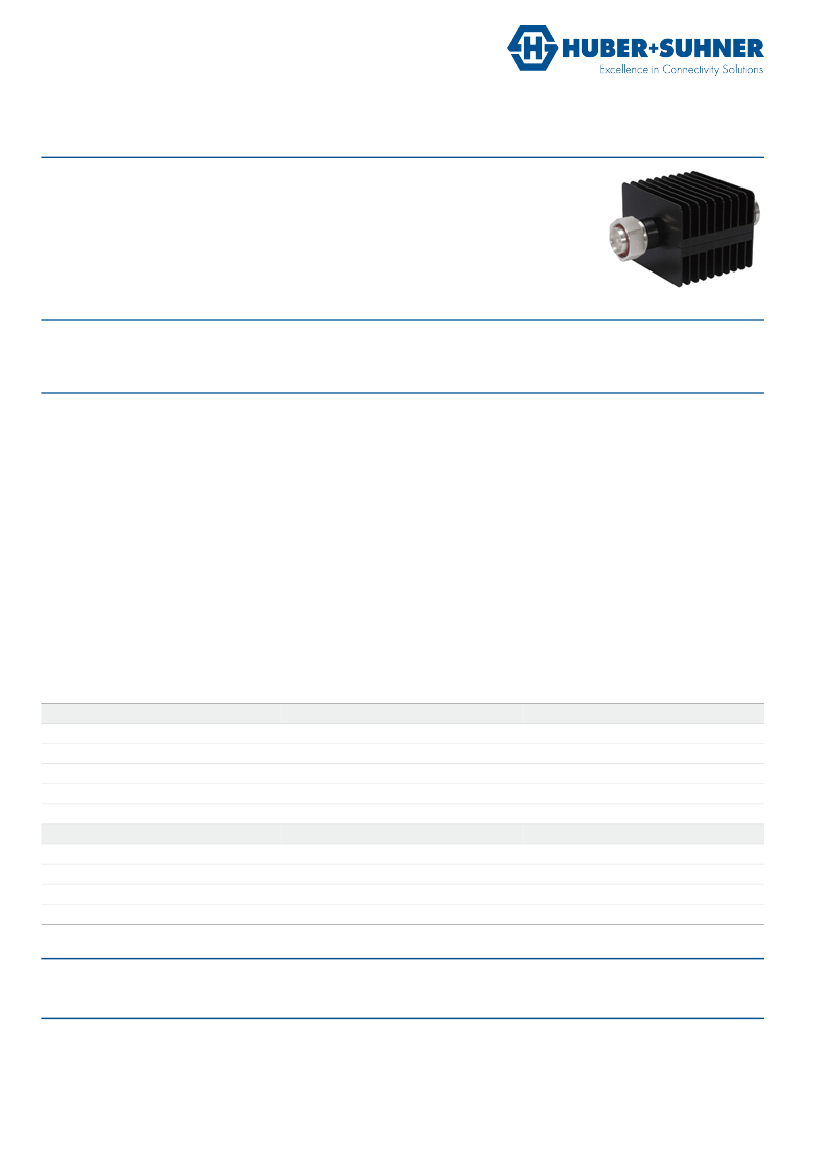

Data Sheet
RF Attenuator
5910_716-50-050/00-_N
Description
Standard Attenuator, High Power
Product Configuration
Connector (side 1 / side 2)
Interface Standards
7/16 plug (male) / 7/16 jack (female)
IEC 60169-4_CECC 22190_DIN 47223_VG 95250
Technical Data
Electrical Data
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
50 Ω
10 dB
DC to 6 GHz
DC to 4
0.75
1.25
4 to 6
0.75
1.45
50 Watt average power up to 25 ˚C ambient temperature, linearly derated to 10 Watt at 125 ˚C ambient
temperature.
Free airflow convection necessary to ensure power performance. Unit is unidirectional, therefore don't swap
input with output (note: input is usually on the male side, otherwise follow instructions on the heatsink)
500 Watt peak power, 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.665 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 125 °C
compliant
Material Data
Piece Part (side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part (side2)
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Aluminium
PTFE (Polytetrafluoroethylene)
Brass
Material
Copper Beryllium Alloy
Brass
Aluminium
PTFE (Polytetrafluoroethylene)
Silver Plating
Surface Plating
Silver Plating
Silver Plating
Anodized
Surface Plating
Silver Plating
Silver Plating
Anodized
Related Documents
Outline drawing
DOU-00122395
Ordering Information
Single packaging
5910_716-50-050/00-_NE
Document: DOC-0000280422 H / PDO H / date of publication: 08.10.2014 18:20:04 / uncontrolled copy
Page 1/2
Data Sheet
RF Attenuator
5910_716-50-050/00-_N
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
