5910_N-50-025/19-_NE

Description
Attenuators - Interconnects
CategoryWireless rf/communication    Radio frequency and microwave
File Size101KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

5910_N-50-025/19-_NE Overview

Attenuators - Interconnects

5910_N-50-025/19-_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
Reach Compliance Codecompliant
Other featuresN-F; N-M, I/P POWER-MAX(PEAK)=500W
Nominal attenuation10 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)43.98 dBm
JESD-609 codee4
Maximum operating frequency6000 MHz
Minimum operating frequency
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Terminal surfaceGold (Au)
Maximum voltage standing wave ratio1.2
Base Number Matches1

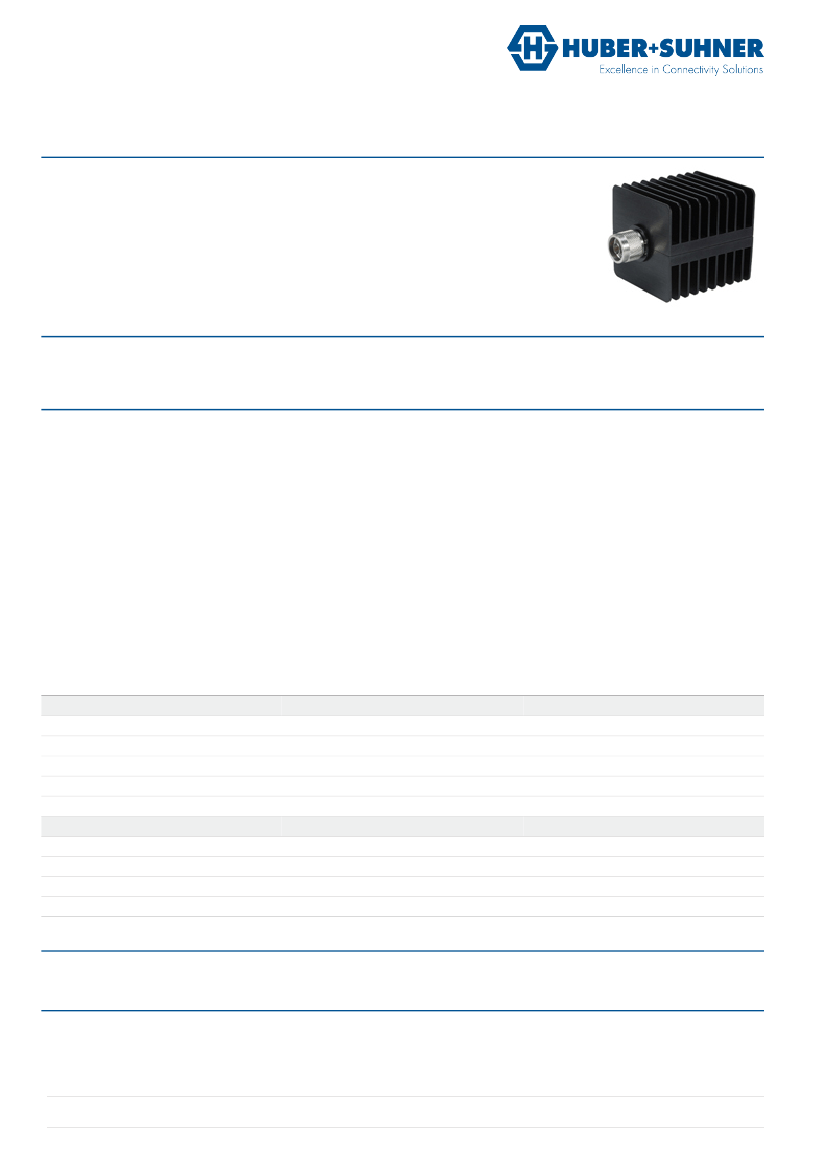

Data Sheet
RF Attenuator
5910_N-50-025/19-_N
Description
Standard Attenuator, High Power
Product Configuration
Connector (side 1 / side 2)
Interface Standards
N plug (male) / N jack (female)
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Nominal impedance
Nominal attenuation
Frequency range
Attenuation deviation (±dB)
VSWR max.
Power rating
50 Ω
10 dB
DC to 6 GHz
0.5
1.2
25 Watt average power up to 25 ˚C ambient temperature, linearly derated to 5 Watt at 85 ˚C ambient
temperature.
Free airflow convection necessary to ensure power performances
500 Watt peak power, 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.42 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 125 °C
compliant
Material Data
Piece Part (side 1)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Part (side2)
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
PTFE (Polytetrafluoroethylene)
Stainless Steel
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
PTFE (Polytetrafluoroethylene)
Passivated (Plating)
Surface Plating
Gold Plating (without Nickel underplating)
Passivated (Plating)
Anodized
Surface Plating
Gold Plating (without Nickel underplating)
Passivated (Plating)
Anodized
Related Documents
Outline drawing
DPA-00122131
Ordering Information
Single packaging
5910_N-50-025/19-_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000279399 J / PDO E / date of publication: 08.10.2014 18:32:36 / uncontrolled copy
Page 1/1
