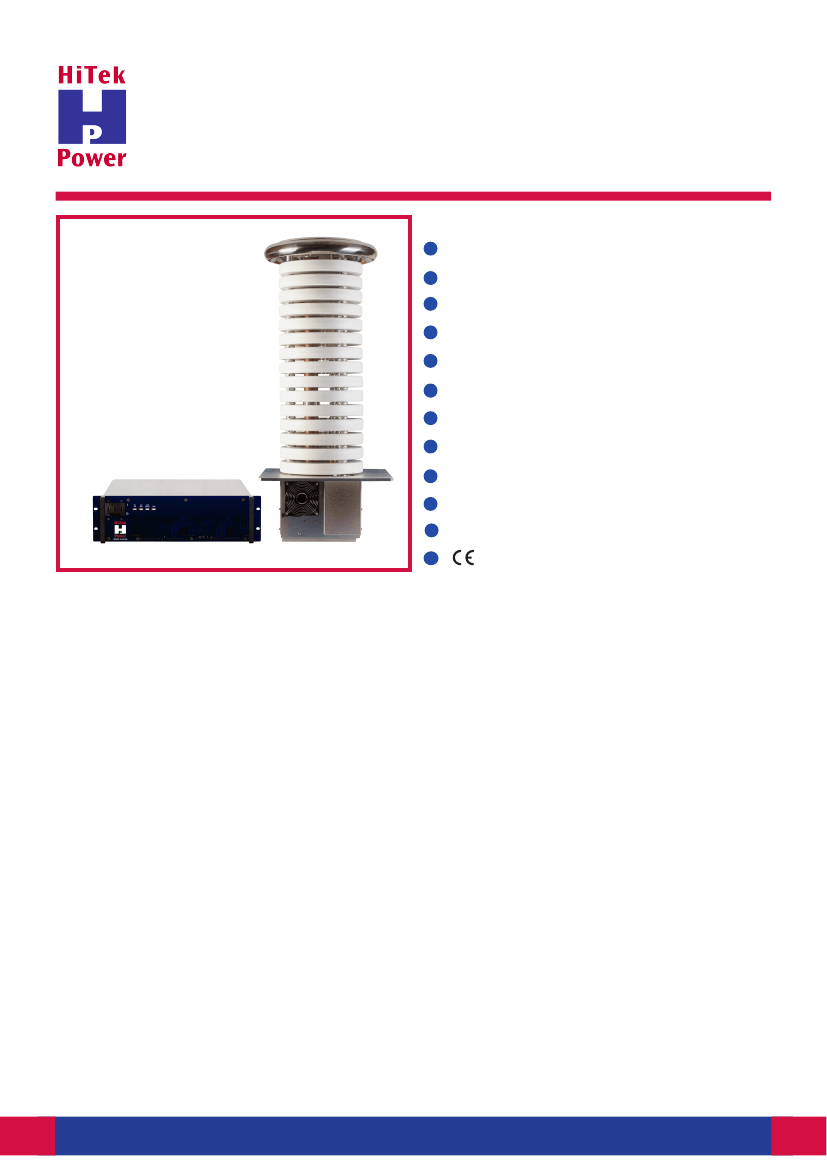

10kW HIGH VOLTAGE POWER SUPPLIES

Series OLH10K

FEATURES

10kW of output power

Output voltages from 60kV to 500kV

Robust IGBT converter design

Exceptional reliability

High Stability

Arc Count and Extinguish (ACE)

Full Local & Remote control and monitoring

Analogue or RS232 remote control

Voltage or current control

RoHS compliant to EU Directive 2002/95/EC

Custom options available

Marked

DESCRIPTION

The Series OLH10K is a range of high reliability single output high

voltage power supplies designed to meet the rigorous requirements of

ion and electron beam systems, ion implantation and X-ray equipment.

There are three different input voltage variants available to order: the

OLH10K (208VAC), the OLH10KC (380VAC) and the OLH10KE (400VAC).

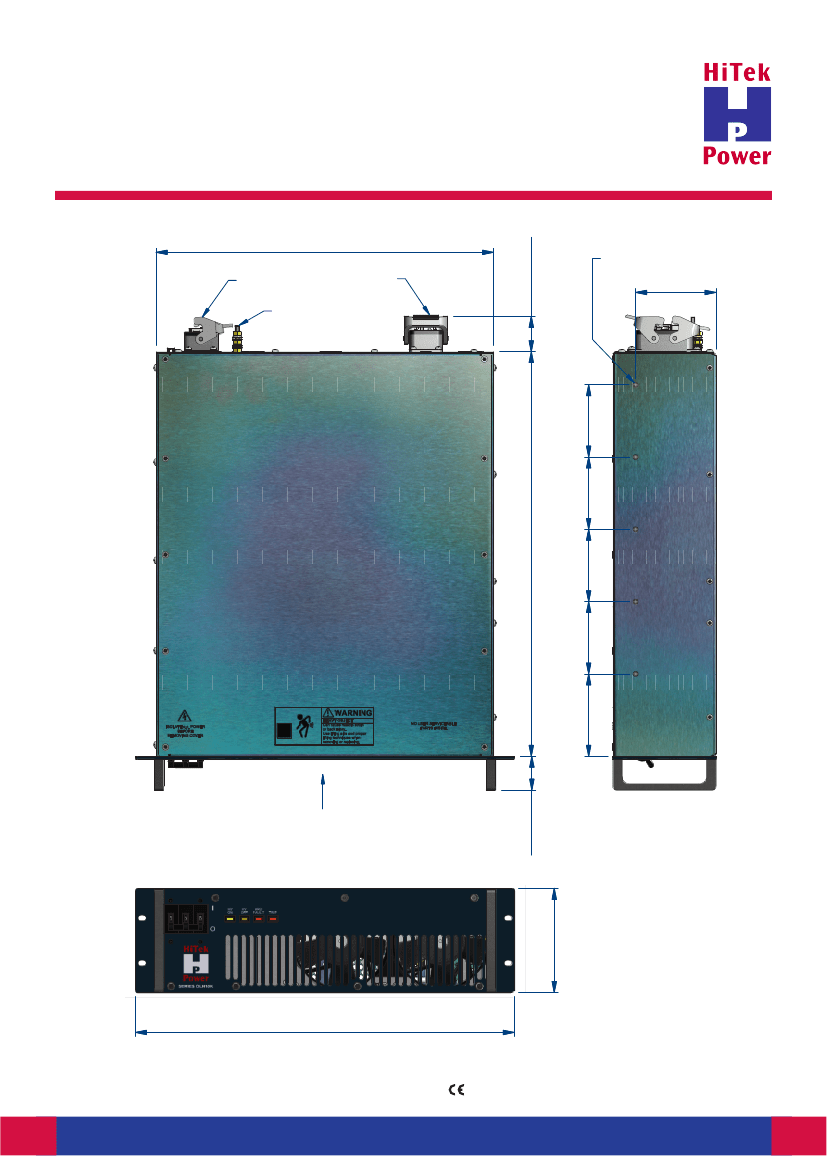

The systems consist of two units: a rack mounting power

converter through which both local and remote controls can be

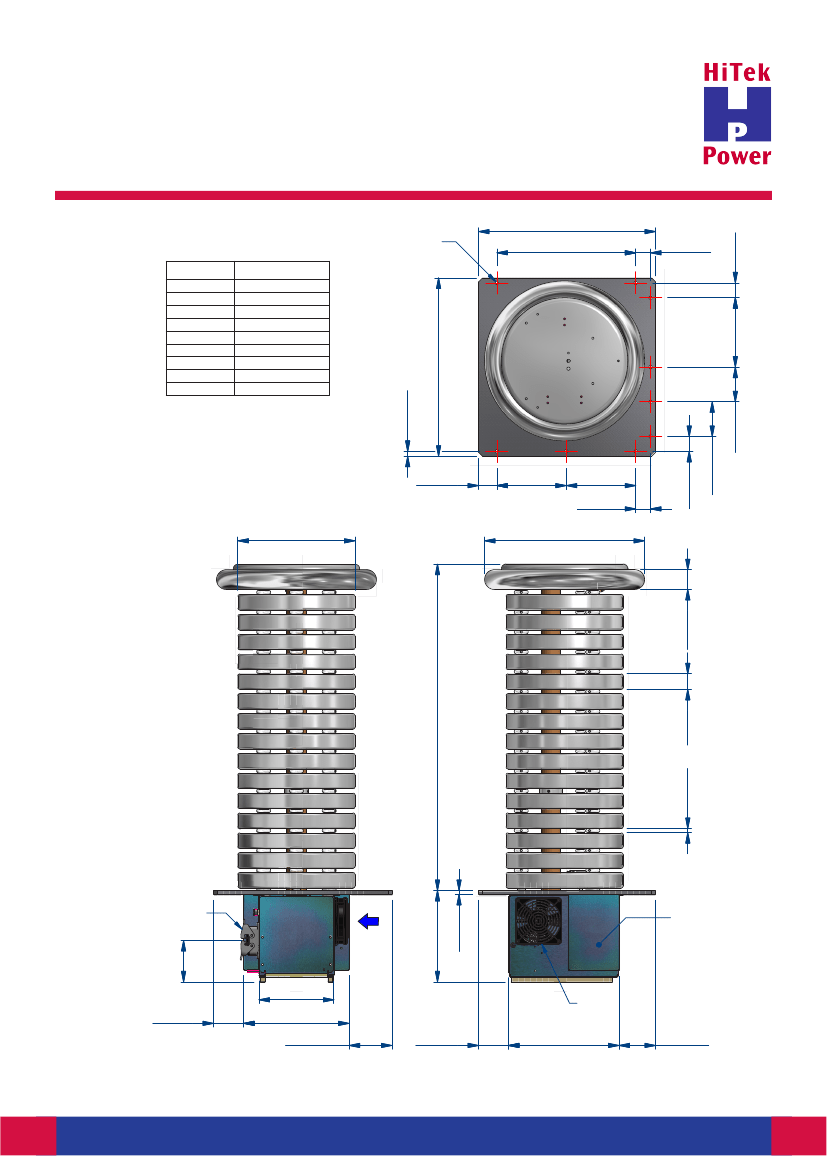

facilitated, and a separate HV unit employing a modular disc

construction. Numerous features are incorporated to ensure

system integrity is maintained during adverse operating conditions,

including HiTek Power’s unique Arc Count and Extinguish (ACE)

system for managing systems where load arcing is endemic.

If none of the models listed below suit your requirements, please

contact our Sales Team to discuss a custom version.

Output Power:

10kW maximum at full rated output voltage and current.

Output Voltage:

Units available with maximum output voltages from 60kV to 500kV.

Output Current:

Up to 166mA for 60kV and 10mA for 500kV.

Input Voltage:

OLH10K:

208VAC ±10% (187VAC to 229VAC) 47-63Hz 3 phase

plus protective earth.

OLH10KC:

OLH10KE:

Input Current:

OLH10K:

OLH10KC:

OLH10KE:

380VAC ±10% (342VAC to 418VAC) 47-63Hz 3 phase

plus protective earth.

400VAC ±10% (360VAC to 440VAC) 47-63Hz 3 phase

plus protective earth.

Less than 36A per phase.

Less than 22A per phase.

Polarity:

Positive or negative to order.

Minimum Voltage:

5% of rated output voltage. The unit may be turned down below this but

the specifications are not guaranteed below this level.

Voltage Ripple:

Voltage Mode:

Current Mode:

Less than 0.1% of rated voltage +2V, peak to peak

or less than 0.02% of rated voltage +1V, rms.

Less than 0.5% of rated voltage peak to peak

or less than 0.1% of rated voltage rms.

Voltage Regulation:

Line:

Less than 0.01% +0.5V change in output voltage for a 10%

change in line voltage.

Load:

Less than 0.01% +0.5V change in output voltage for 0 to

100% change in load current.

Current Regulation:

Line:

Less than 0.5% of rated current for a ±10% change in line

voltage.
