CE2200A-LZ-40.000-T-LP datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CE2200A-LZ-40.000-T-LP

CE2200A-LZ-40.000-T-LP: DescriptionCLOCK; CategoryPassive components oscillator; File Size229KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/

Download Datasheet Parametric Compare View All

CE2200A-LZ-40.000-T-LP Overview

CLOCK

CE2200A-LZ-40.000-T-LP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Raltron
Reach Compliance Code	compli
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e0
Manufacturer's serial number	CE2200A-LZ-40.000-T-LP
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Nominal operating frequency	40 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
Package body material	METAL
Encapsulate equivalent code	DIP4/8,.3
physical size	12.5mm x 12.5mm x 5.08mm
power supply	5 V
Certification status	Not Qualified
longest rise time	5 ns
Maximum slew rate	50 mA
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

CLOCK

CE2200A-LZ-40.000-T-LP

APPROVALS

RALTRON

Eng. approval, date:

Sales approval, date:

Created by, date: PartGenerator

Revision:

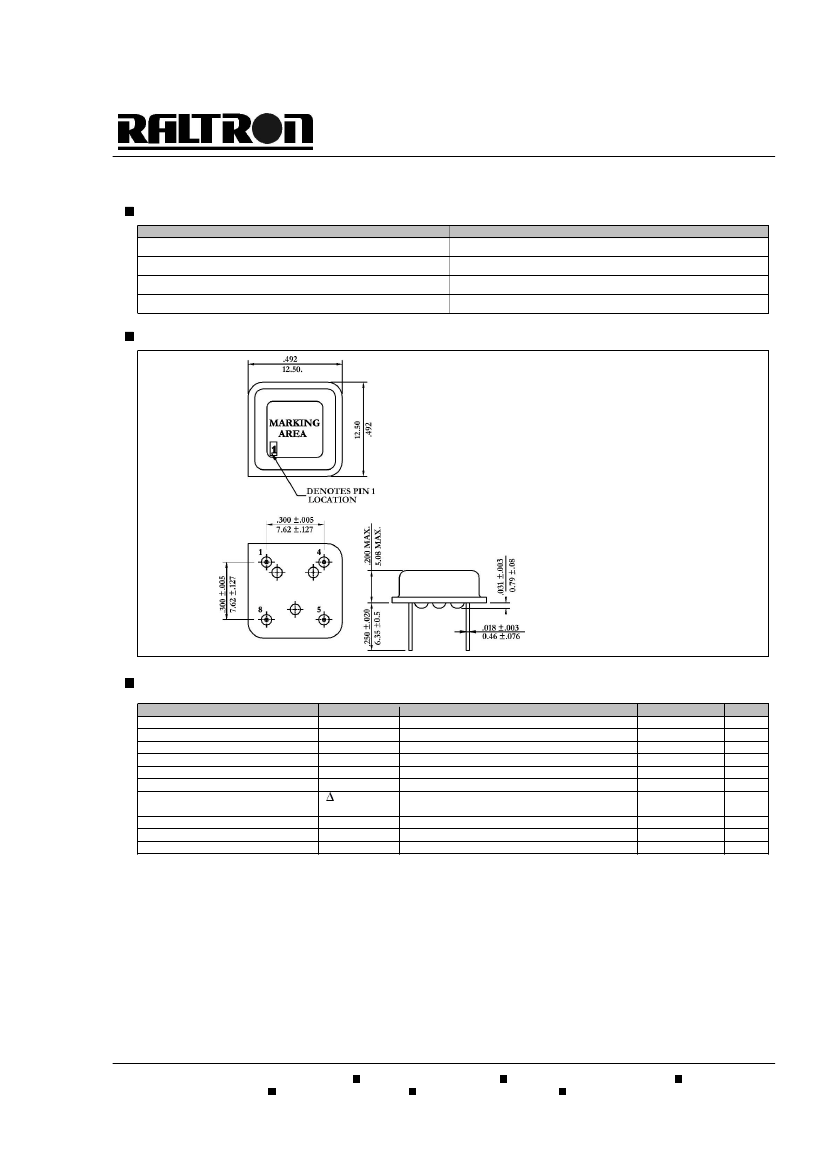

MECHANICAL SPECIFICATION

Name (please print):

Title (please print):

Signature, date:

OUTLINE TOLERANCE:

+0.015" / 0.4mm

(Unless otherwise specified)

PIN FUNCTIONS:

MARKING:

CE2200A-LZ

40.000-T-LP

RAL D/C

ELECTRICAL SPECIFICATION

PARAMETER

SYMBOL

CONDITIONS

VALUE

UNIT

Frequency, nom

Supply Voltage, max.

Supply Current, max.

HCMOS output levels

Duty Cycle

Rise- / fall time, max.

Overall freq. stability, max.

Operating temperature range

Storage temperature range

Absolute voltage Range

Vcc

VOH / VOL

tr / tf

f/fc

T(stg)

Vcc (abs)

40.000

Vcc ±5%

+5.0

Vcc=±5%, Ta=+25°C, 15 pF load

50.0

Vcc=+5.0VDC, load=15 pF

4.5/0.5

load=15pF / @ 50%Vcc, Ta=+25°C

45...55

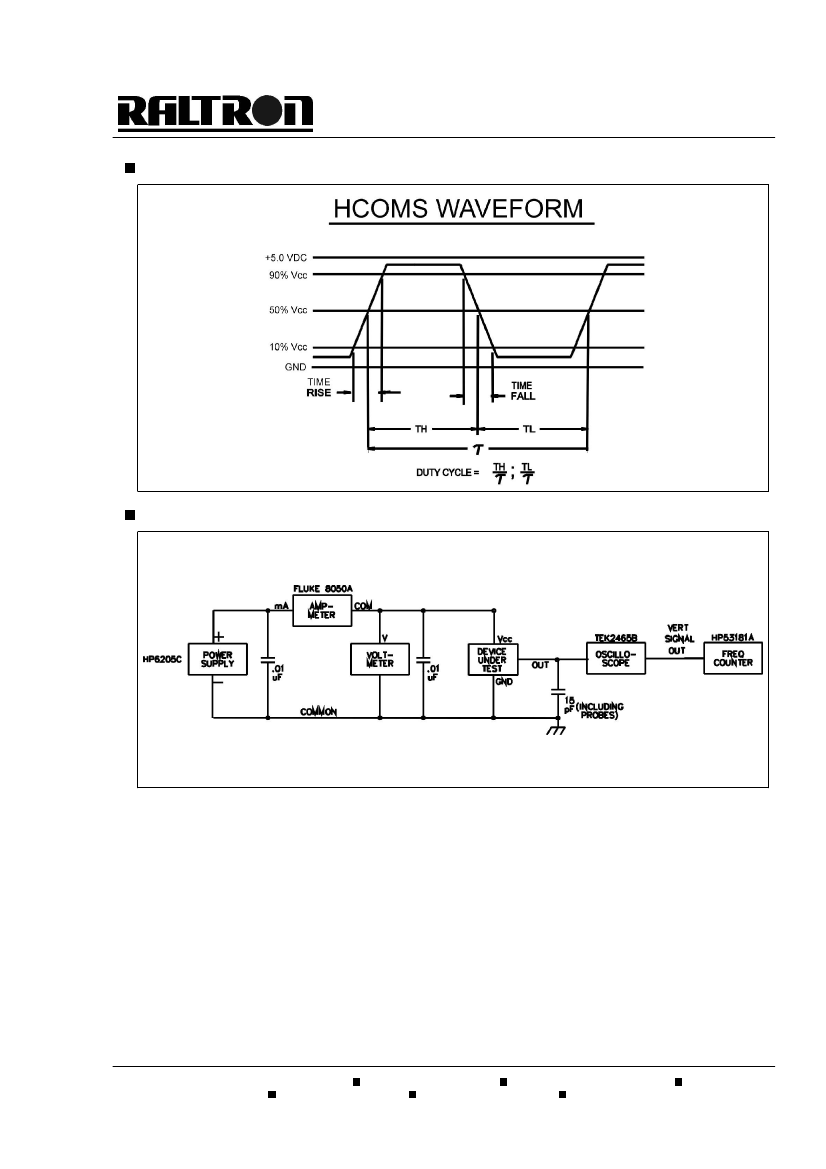

20%~80% Vout, 80%~20% Vout

5.00

Including temp., ±5% load & supply variations, 100.0

calibration @+25°C and 10 year aging

0...70

-55...125

Non-destructive, DC

-0.5...+7.0

MHz

ppm

°C

R A L T R O N E L E C T R O N I C S C O R P.

1 0 6 5 1 N. W. 1 9 th S t

M i a m i, F l o r i d a 3 3 1 7 2

U. S. A.

phone: +001(305) 593-6033

fax: +001(305)594-3973

e-mail: sales@raltron.com

internet: http://www.raltron.com

CE2200A-LZ-40.000-T-LP Related Products

	CE2200A-LZ-40.000-T-LP	CE2200A-LZ-20.480-T-LP
Description	CLOCK	CLOCK
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Raltron	Raltron
Reach Compliance Code	compli	compli
maximum descent time	5 ns	10 ns
Frequency Adjustment - Mechanical	NO	NO
frequency stability	100%	100%
JESD-609 code	e0	e0
Manufacturer's serial number	CE2200A-LZ-40.000-T-LP	CE2200A-LZ-20.480-T-LP
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	4	8
Nominal operating frequency	40 MHz	20.48 MHz
Maximum operating temperature	70 °C	70 °C
Oscillator type	HCMOS	HCMOS
Output load	15 pF	15 pF
Package body material	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	DIP4/8,.3	DIP8,.3
physical size	12.5mm x 12.5mm x 5.08mm	12.5mm x 12.5mm x 5.08mm
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
longest rise time	5 ns	10 ns
Maximum slew rate	50 mA	35 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
maximum symmetry	55/45 %	55/45 %
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
