B65675B0005X000

Description
Ferrite Cores & Accessories MOUNTING ASSY P26X16
CategoryPassive components
File Size485KB,14 Pages
ManufacturerEPCOS (TDK)
Environmental Compliance
Download Datasheet Parametric Compare View All

B65675B0005X000 Online Shopping

Suppliers Part Number Price MOQ In stock
B65675B0005X000 - - View Buy Now

B65675B0005X000 Overview

Ferrite Cores & Accessories MOUNTING ASSY P26X16

B65675B0005X000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerEPCOS (TDK)
Product CategoryFerrite Cores & Accessories
RoHSDetails
ProductHardware & Accessories
TypeMounting Assembly
CoreP Core
Core SizeP 26 x 16
Inductance-
Tolerance-
Accessory TypeYoke, Terminal Carrier
Number of Pins8
Core MaterialGFR Polyterephthalate
Termination StylePin
PackagingBulk
Inside Diameter-
Maximum DC Current-
Maximum DC Resistance-
Outside Diameter-
Outside Height19 mm
Outside Width27.8 mm
Inside Height-
Inside Length-
Inside Width-
Lead Diameter1.3 mm
Lead Spacing5.08 mm
Outside Length28.5 mm
Factory Pack Quantity200
Unit Weight0.811301 oz
Ferrites and accessories

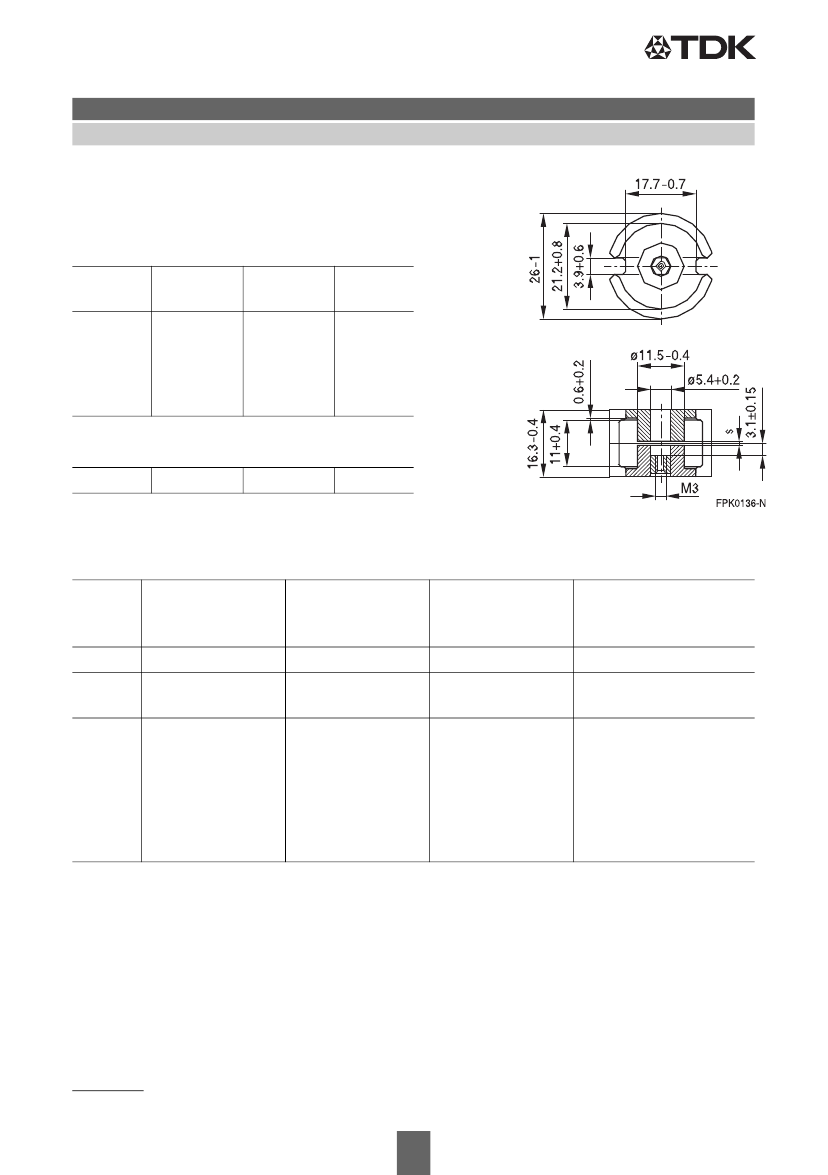

P 26 × 16

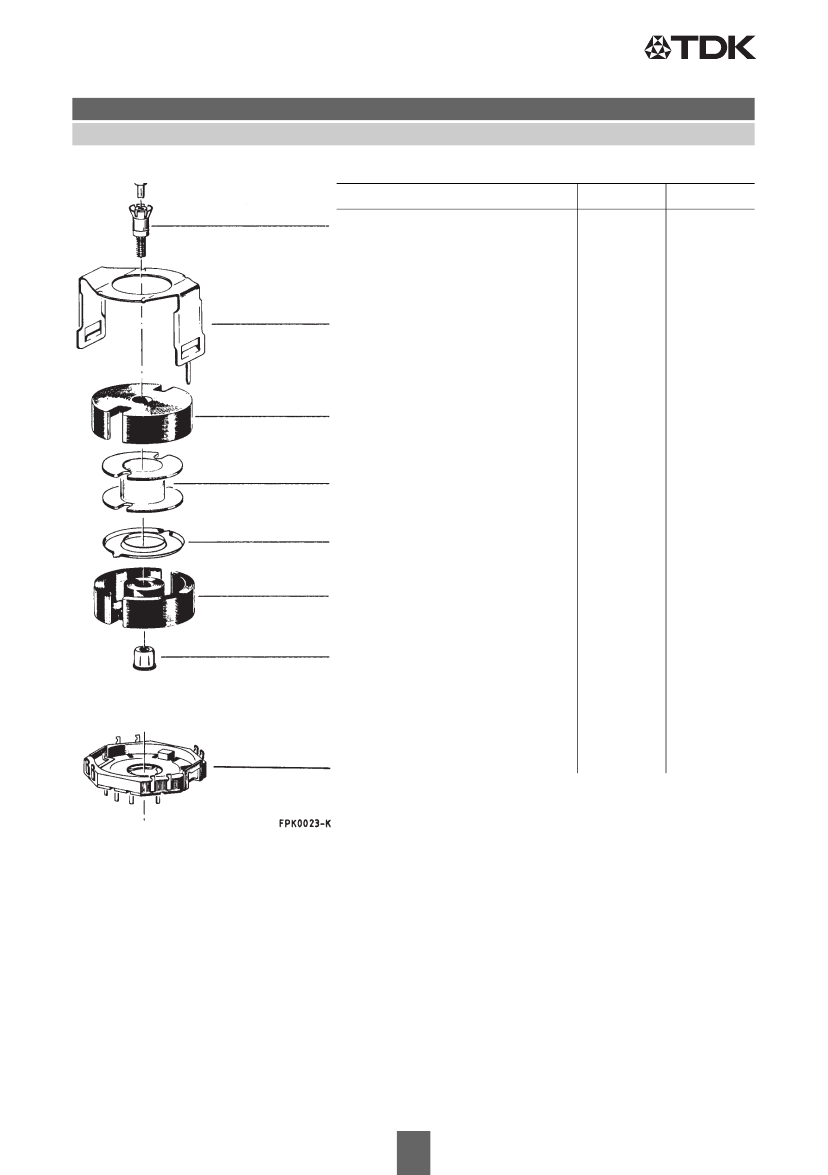

Core and accessories
Series/Type:
Date:
B65671, B65672, B65675, B65679
May 2017
EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.

B65675B0005X000 Related Products

B65675B0005X000 B65671T0100A033 B65671T0800A048 B65671W0000R030 B65671T0063A001 B65671T0400A048 B65671W0000Y038 B65671W0000R087 B65671D0630A048
Description Ferrite Cores & Accessories MOUNTING ASSY P26X16 Ferrite Cores & Accessories P 26X16 M33 100 +3%- 3% Ferrite Cores & Accessories P 26X16 N48 800 +3%- 3% Ferrite Cores & Accessories P 26X16 N30 9700 +30%-20% Ferrite Cores & Accessories P 26X16 K 163 +3%- 3% Ferrite Cores & Accessories P 26X16 N48 400 +3%- 3% Ferrite Cores & Accessories P 26X16 T3822000 +40%-30% Ferrite Cores & Accessories P 26X16 N87 5500 +30%-20% Ferrite Cores & Accessories P 26X16 N48 630 +3% -3%
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK) EPCOS (TDK)
Product Category Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories Ferrite Cores & Accessories
RoHS Details Details Details Details Details Details Details Details Details
Product Hardware & Accessories Ferrite Cores Ferrite Cores Ferrite Cores Ferrite Cores Ferrite Cores Ferrite Cores Ferrite Cores Ferrite Cores
Type Mounting Assembly Gapped Gapped Ungapped Gapped Gapped Ungapped Ungapped Gapped
Core P Core P Core P Core P Core P Core P Core P Core P Core P Core
Core Size P 26 x 16 P 26 x 16 26 x 16 P 26 x 16 26 x 16 26 x 16 P 26 x 16 P 26 x 16 26 x 16
Inductance - 100 nH 800 nH 9.7 uH 63 nH 400 nH 22 uH 5.5 uH 630 nH
Tolerance - 3 % 3 % - 20 %, + 30 % 3 % 3 % - 30 %, + 40 % - 20 %, + 30 % 3 %
Core Material GFR Polyterephthalate M33 N48 N30 K1 N48 T38 N87 N48
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Factory Pack Quantity 200 200 200 200 200 200 200 200 200
Outside Height 19 mm 16.3 mm - 16.3 mm 16.3 mm - 16.3 mm 16.3 mm -
Unit Weight 0.811301 oz 0.740753 oz - 0.811301 oz - - 0.811301 oz 0.176370 oz -
