ＳＰＥＣＩＦＩＣＡＴＩＯＮ
SUMIDA TYPE

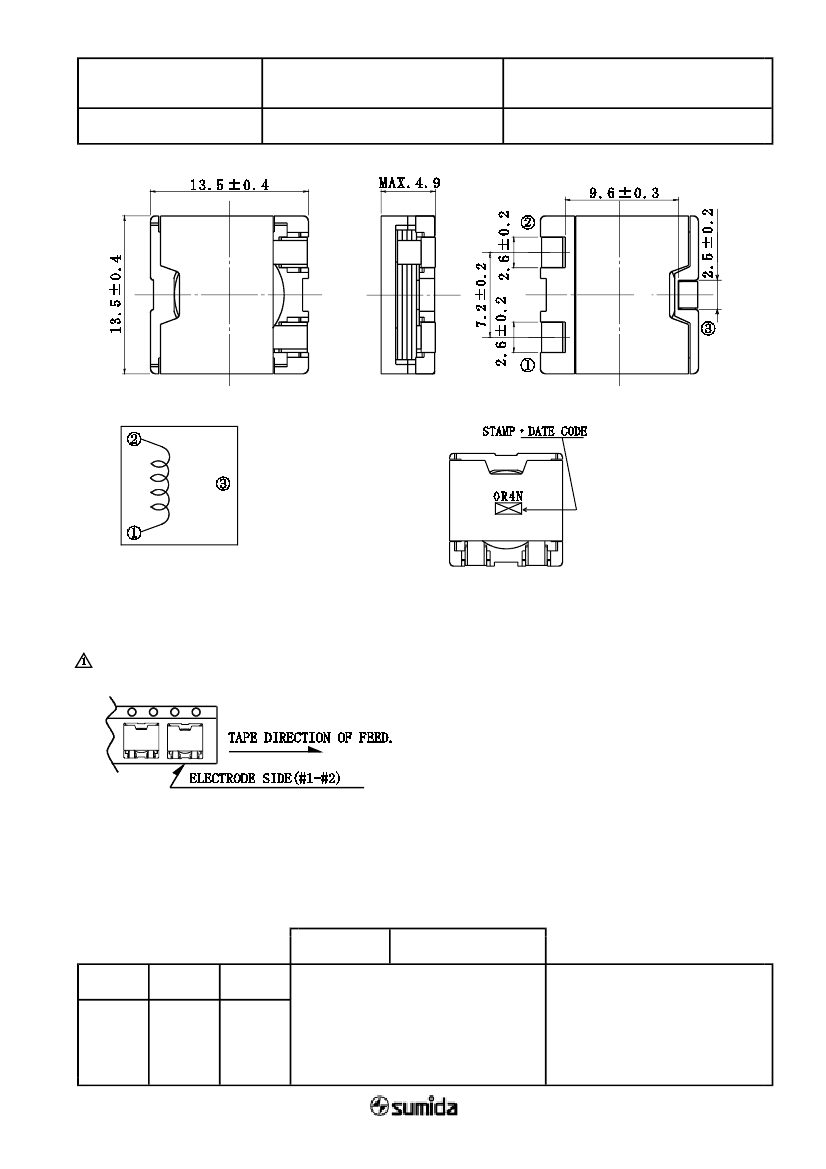

1.DIMENSION （mm）
ＣＤＥＰ１３４
PART NO. REF. TO THE ATTACHED SHEET.
2.CONNECTION
(BOTTOM)
3. STAMP (Ex.)
4. NOTE
＊ PLEASE DO NOT USE A WASHING AGENT.
＊ PLEASE PAY ATTENTION TO THE SUITABILITY OF THE PATTERN FOR THE CURRENT IN DESIGN.
＊ RECOMMENDED REFLOW CONDITION TO BE ACCORDING TO S-074-5003.
＊ TERMINAL TO BE SOLDERED WHEN USED.
＊ ENCLOSING CONDITION OF COILS.
＊ CARRIER TAPE PACKING SPECIFICATION IN DETAIL.（S-074-5102)
＊ PLEASE PAY ATTENTION TO SAFETY DISTANCE BETWEEN COIL PERIPHERY AND OTHER PARTS OR COPPER
PATTERN, BECAUSE Mn-Zn SERIES FERRITE CORE IS USED IN THE PRODUCTS.
１３½½，Ｆ½½．，２０００ SUMIDA
ＣＨＫ．
CHEN
WEIMING
ＣＨＫ． ＤＲＧ．
HE
GUOGAO
ZHONG
ZIJIAN
F
CODE ４７６９
DRG. NO.
２/６
Ｓ−０７４−６０８７
ＴＹＰＥ
ＧＥＮＥＲＡＬ ＣＨＡＲＡＣＴＥＲＩＳＴＩＣＳ
1．STORAGE TEMPERATURE RANGE : −４０℃∼ ＋１００℃
ＣＤＥＰ１３４
2．OPERATING TEMPERATURE RANGE: −４０℃∼ ＋１００℃ (INCLUDING SELF TEMPERATURE RISE)
3.EXTERNAL APPEARANCE
: NO VISUAL INSPECTION, THE COIL HAS NO EXTERNAL DEFECTS .
4.ELECTRODE STRENGTH
: AFTER SOLDERING, BETWEEN COPPER PLATE AND
ELECTRODE OF COIL, PUSH IN TWO DIRECTIONS OF
X,Y WITHSTANDING 5.0N FOR 10.0±1 SECONDS.
ELECTRODE SHOULD NOT PEEL OFF.
(REFER TO FIGURE AT RIGHT)
5.HEAT ENDURANCE TEST
: REFER TO S-074-5002.
6.TEMPERATURE FEATURE
: INDUCTANCE COEFFICIENT IS (0∼2000)×10
−６
/℃ ( -40℃∼+100℃ )
7.HUMIDITY TEST
: INDUCTANCE DEVIATION IS WITHIN ±5.0% AFTER PUTTING THE COIL INTO THE
ENVIRONMENT OF 90∼95% RELATIVE HUMIDITY AND TEMPERATURE OF 40±2℃
FOR 96±4 HOURS, THEN DRYING UNDER NORMAL CONDITION FOR 2 HOUR.
8.VIBRATION TEST
: INDUCTANCE DEVIATION WITHIN ±3.0% VIBRATION FOR 1 HOUR IN EACH OF
THE THREE ORIENTATIONS VERTICALLY EACH OTHER (X.Y.Z.) AT SWEEP VIBRATION
(10∼55∼10Hz) WITH 1.5mm P-P AMPLITUDE.
9.SHOCK TEST
: INDUCTANCE DEVIATION WITHIN ±3.0% TESTED IN EACH OF THE THREE
ORIENTATIONS VERTICALLY FOR 1 TIME AT THE SHOCK ACCELERATION OF
981m/s
２
, USING RUBBER BLOCK SHOCK TESTING MACHINE.
１３½½，Ｆ½½．，２０００
ＣＨＫ．
CHEN
WEIMING
ＣＨＫ． ＤＲＧ．
HE
GUOGAO
ZHONG
ZIJIAN
F
DRG. NO.
３/６
Ｓ−０７４−６０８７
ＴＹＰＥ
ＳＰＥＣＩＦＩＣＡＴＩＯＮ
ELECTRICAL CHARACTERISTICS-1
THE SATURATION
CURRENT
（Ａ）※3
(at 100℃)
27.0
18.4
13.8
11.0
9.1
8.0
6.8
6.1
ＣＤＥＰ１３４
NO.
PART NO.
STAMP
INDUCTANCE
［WITHIN½
※1
0.4μH±30％
0.9μH±20％
1.6μH±20％
2.5μH±20％
3.6μH±20％
4.8μH±20％
6.4μH±20％
8.0μH±20％
D.C.R.
(mΩ)
[MAX.]※2
(at 20℃) (at 20℃)
1.9(1.6)
2.5(2.1)
3.7(3.1)
6.6(5.5)
10.8(9.0)
12.0(10.0)
16.3(13.6)
18.4(15.3)
32.0
21.6
16.0
12.8
10.9
9.3
8.0
7.2
TEMPERATURE
RISE
（Ａ）
※4
△T=40℃
18.5
17.0
15.0
10.5
8.0
7.5
7.0
6.5
SUMIDA
CODE
01 CDEP134-
Ø
R4NC 0R4N
02 CDEP134-
Ø
R9MC 0R9M
03 CDEP134-1R6MC 1R6M
04 CDEP134-2R5MC 2R5M
05 CDEP134-3R6MC 3R6M
06 CDEP134-4R8MC 4R8M
07 CDEP134-6R4MC 6R4M
08 CDEP134-8R
Ø
MC 8R0M
-0009
-0010
-0013
-0014
-0015
※１ MEASURING CONDITION
※２ D.C.R.(
at
100kHz
1V
)TYPICAL VALUE.
※３ THE SATURATION CURRENT: THIS INDICATES THE VALUE OF CURRENT WHEN THE INDUCTANCE IS
75% (INDUCTANCE TO LERANCE IS 20% TIME)
OVER {
}OF THE NOMINAL VALUE.
65% (INDUCTANCE TO LERANCE IS 30% TIME)
※４ THE TEMPERATURE RISE: THE VALUE OF D.C. CURRENT WHEN THE TEMPERATURE RISE IS △t＝40℃
(Ta＝20℃).
１３½½，Ｆ½½．，２０００ SUMIDA
ＣＨＫ．
CHEN
WEIMING
ＣＨＫ． ＤＲＧ．
HE
GUOGAO
ZHONG
ZIJIAN
F
CODE
４７６９
DRG. NO.
４/６
Ｓ−０７４−６０８７
ＴＹＰＥ
ＳＰＥＣＩＦＩＣＡＴＩＯＮ
ELECTRICAL CHARACTERISTICS-2
THE SATURATION
CURRENT
（Ａ）※3
ＣＤＥＰ１３４
NO.
PART NO.
STAMP
INDUCTANCE
［WITHIN½
※1
D.C.R.
(mΩ)
[MAX.]※2
(at 20℃) (at 20℃)
1.9(1.6)
2.5(2.1)
3.7(3.1)
6.6(5.5)
10.8(9.0)
12.0(10.0)
16.3(13.6)
18.4(15.3)
35.0
29.0
21.0
17.6
14.7
12.5
11.0
9.6
TEMPERATURE
RISE
（Ａ）
※4
(at 100℃)
△T=40℃
32.0
24.0
17.6
14.4
12.0
10.2
9.0
8.0
18.5
17.0
15.0
10.5
8.0
7.5
7.0
6.5
SUMIDA
CODE
09 CDEP134-
Ø
R3NC-H 0R3NH
10 CDEP134-
Ø
R6NC-H 0R6NH
11 CDEP134-1R2MC-H 1R2MH
12 CDEP134-1R8MC-H 1R8MH
13 CDEP134-2R7MC-H 2R7MH
14 CDEP134-3R6MC-H 3R6MH
15 CDEP134-4R8MC-H 4R8MH
16 CDEP134-6R
Ø
MC-H 6R0MH
0.3μH±30％
0.66μH±30％
1.2μH±20％
1.8μH±20％
2.7μH±20％
3.6μH±20％
4.8μH±20％
6.0μH±20％
-0017
-0008
-0020
-0022
-0023
※１ MEASURING CONDITION
※２ D.C.R.(
at 100kHz
1V
)TYPICAL VALUE.
※３ THE SATURATION CURRENT: THIS INDICATES THE VALUE OF CURRENT WHEN THE INDUCTANCE IS
75% (INDUCTANCE TO LERANCE IS 20% TIME)
OVER {
}OF THE NOMINAL VALUE.
65% (INDUCTANCE TO LERANCE IS 30% TIME)
※４ THE TEMPERATURE RISE: THE VALUE OF D.C. CURRENT WHEN THE TEMPERATURE RISE IS △t＝40℃
(Ta＝20℃).
１３½½，Ｆ½½．，２０００ SUMIDA
ＣＨＫ．
CHEN
WEIMING
ＣＨＫ． ＤＲＧ．
HE
GUOGAO
ZHONG
ZIJIAN
F
CODE
４７６９
DRG. NO.
５/６
Ｓ−０７４−６０８７
ＴＹＰＥ
ＳＰＥＣＩＦＩＣＡＴＩＯＮ
DIMENSION RECOMMENDED (mm)
ＣＤＥＰ１３４
REVISION
１３½½，Ｆ½½．，２０００
ＣＨＫ．
CHEN
WEIMING
ＣＨＫ． ＤＲＧ．
HE
GUOGAO
ZHONG
ZIJIAN
F
DRG. NO.
６/６
Ｓ−０７４−６０８７
