SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / DOUBLE ROW / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM

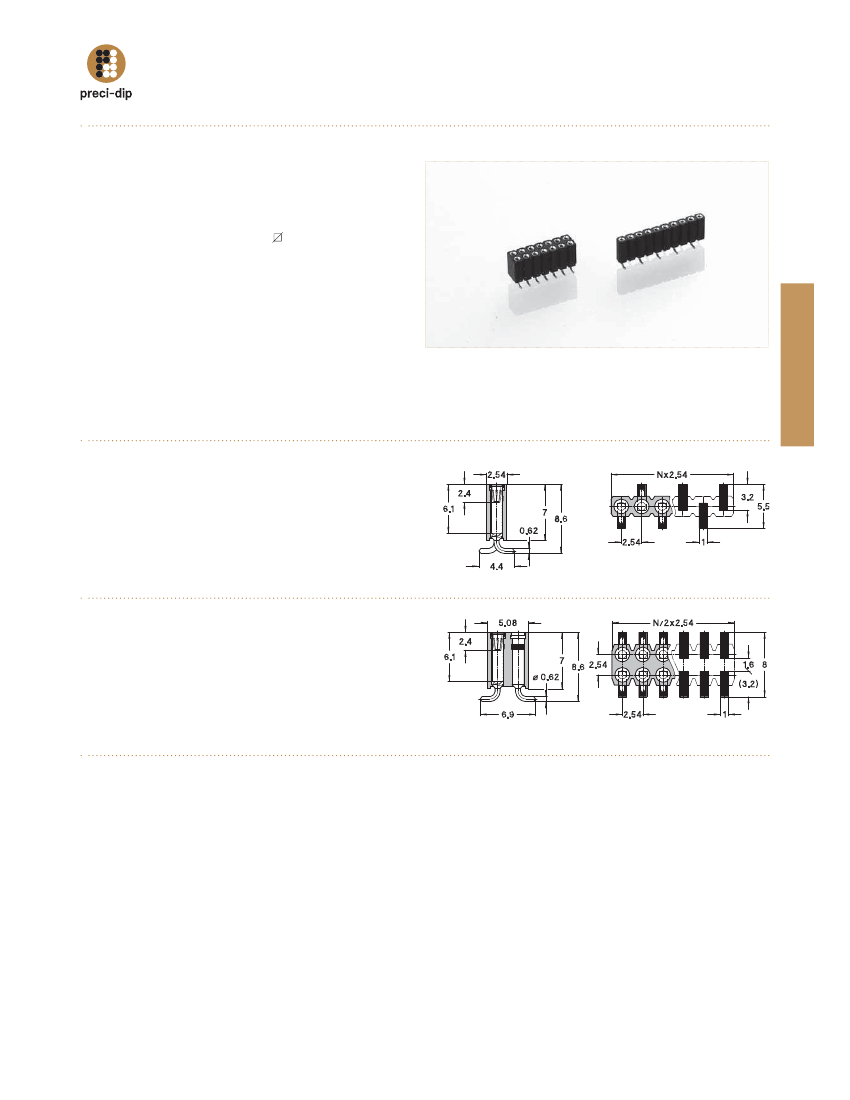

Socket connectors, SMD perpendicular mount.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
FL AMMABILIT Y
SLEEVE
CONTACT CLIP (6 FINGER)
MATING PINS
FORCES
MECHANICAL LIFE
RATED CURRENT
CONTACT RESISTANCE
DIELECTRIC STRENGTH
COPL ANARIT Y
SMD TERMINATIONS
Max. 0.1 mm (measured on 25 mm long connectors)
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 803-87-NNN-30-001101 for a double row version with 16 pins
becomes 803-87-016-30-001101.
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
87
83
Bulk :
Tin
Tin
Flash gold
0.75 μm gold
T & R Packaging with pick & place cap* :
801-PP-NNN-30-001101
801-PP-NNN-30-001191
SMD socket connector, single row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
3 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging with pick & place cap* :
803-PP-NNN-30-001101
803-PP-NNN-30-001191
SMD socket connector, double row, perpendicular mount with gull-wing
terminations
AVAIL ABILIT Y FROM
4 to 100 contacts
(standard number of contacts: 100)
For connectors having more than 9 contacts per row,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Due to technical progress, all information provided is subject to change without prior notice.
95
PCB CONNECTORS
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
Beryllium copper (C17200)
Ø 0.70 to 0.90 mm,
0.635 mm
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
Min. 500 cycles
3A
Max. 10 m
Min. 1’000 V
RMS
