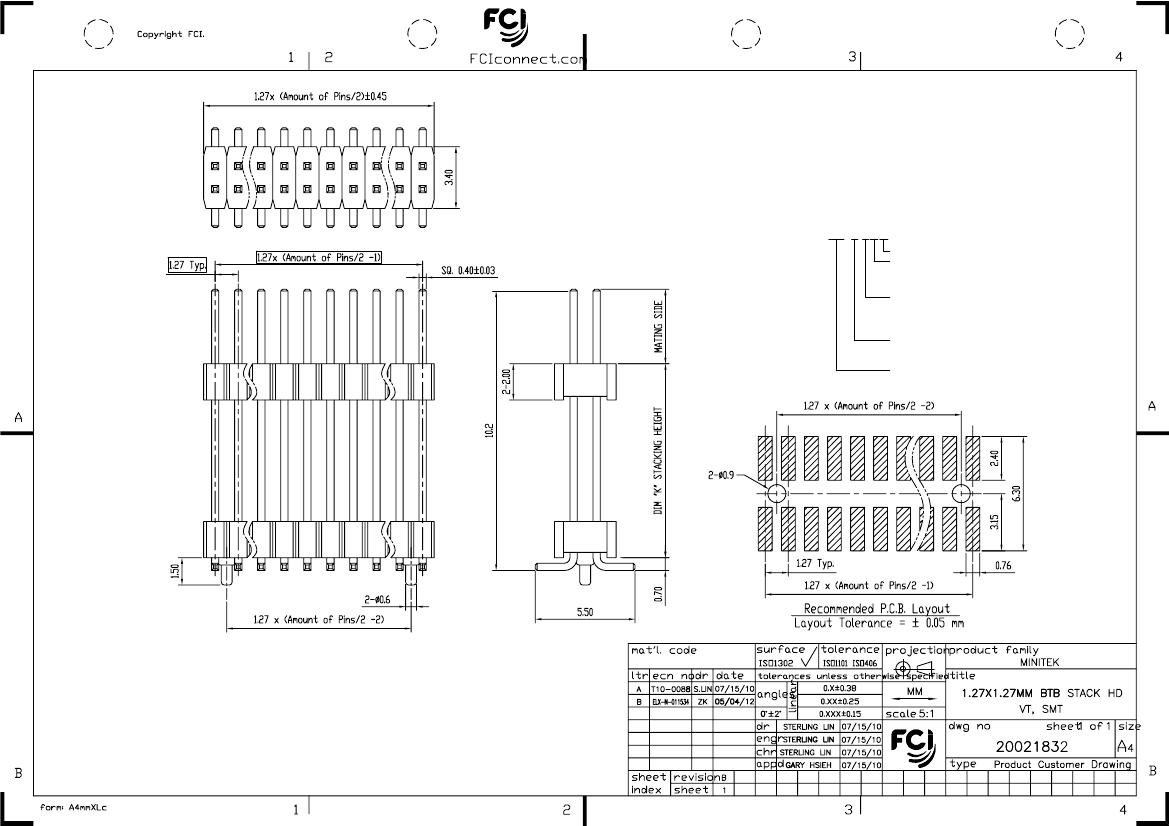

NOTE:
1. MATERIAL,
HOUSING: NYLON 6T (E630NK), UL94V-0
TERMINAL: C2700 H
2. FINISH:
TERMINAL: GOLD AT CONTACT,
G/F OVER 1um(40u") MIN Ni OVER ALL
3. SPEC.:
PRODUCT SPEC: GS-12-629
PACKING SPEC: GS-14-1517
4. THE HSG. WILL WITHSTAND EXPOSURE TO 260C
PEAK TEMP. FOR 10 SEC. IN A CONVECTION, INFRA-RED
OR VAPOR PHASE REFLOW OVEN.
5. MATING SIDE LENGTH: 2.50MM MIN.
6. PRODUCT NUMBERING:
200218 3 2 - XXX XX X X LF
LEAD FREE
PLATING:
1:G/F ALL OVER
4:0.25um(10U")GOLD AT CONTACT
8:0.76um(30U") GOLD AT CONTACT
PACKING
T: TUBE
D: TUBE + CAP
C: REEL + CAP (16 PIN)
PIN COUNT
04, 06, 08,..., 48, 50
( EVERY EVEN PIN )
STACK HEIGTH "K"
EXAMPLE: 045=4.5MM
IN 0.5MM INCREMENT
PDS: Rev :B
STATUS:Released
Printed: May 14, 2012
