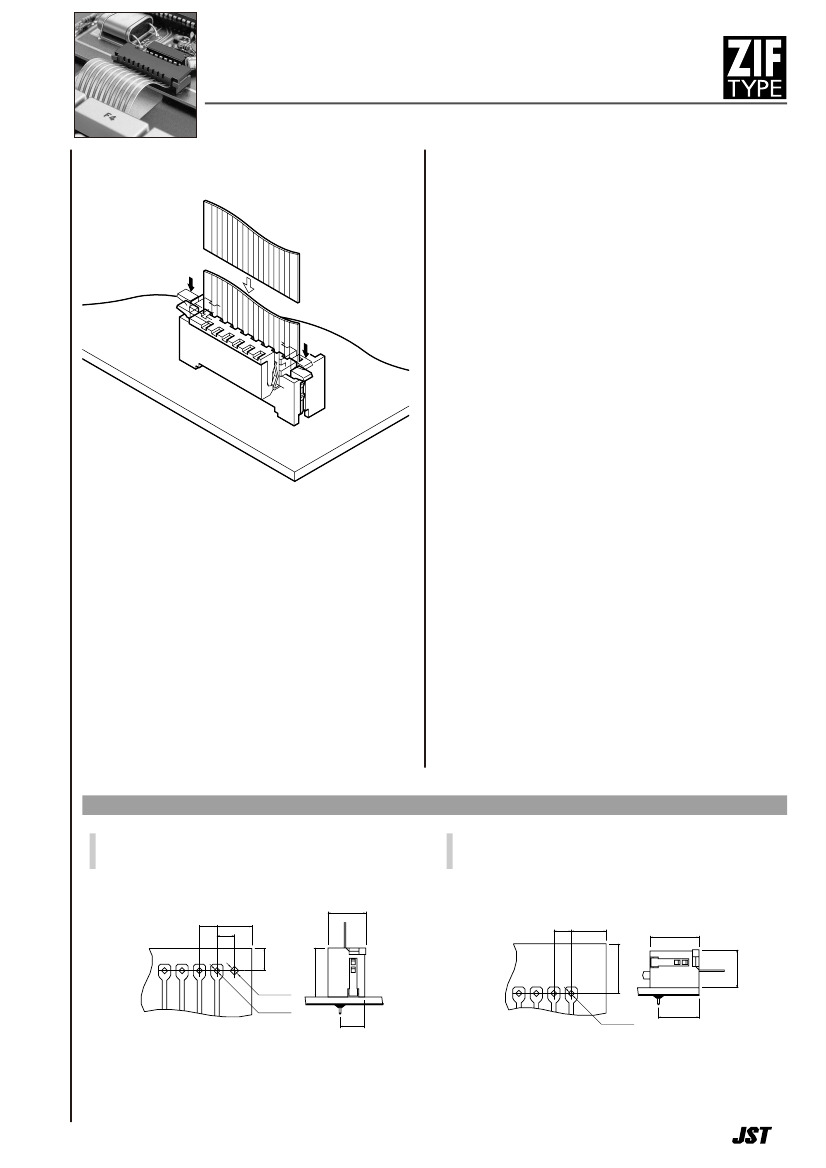

FDZ
CONNECTOR
2.54mm pitch/Connectors for FPC and membrane switch leads
Specifications –––––––––––––––––––
• Current rating:
Tin-plated copper foil lead/1.0A AC, DC
Silver paste carbon-printed lead/50mA AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -40˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: <Tin-plated copper foil lead>
lnitial value/30m
Ω
max.
After environmental testing/50m
Ω
max.
<Silver paste carbon-printed lead>
lnitial value/10
Ω
max.
After environmental testing/15
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,200V AC/minute
• Applicable FPC and membrane switch lead:
Conductor pitch/2.54mm
Conductor width/1.3mm
Mating part thickness/125 micron
• Applicable PC board thickness: 1.6mm
Note
:
FPC to be actually used should be checked for applicability.
The FDZ connector, a Zero Insertion Force
(ZIF) connector, was developed to connect
FPC and membrane switch leads. This
combination of features allows greater
freedom in internal wiring designs. No
force is required to insert the leads. Once
inserted, the leads are securely held and
locked by moving the slide. The contact is
double-sided to ensure greater reliability.
• Double-sided contact
• Zero insertion force and locking mechanism
• Temporary board retention feature
• Boss for polarity identification
• Flux is not a problem
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
1
Certified LR20812
Side entry type
0
Recognized E60389
PC board layout (viewed from soldering side) and Assembly layout
Top entry type
7.7
2.54
±0.05
5.3
min
2.54
5.1
min
2.54
±0.05
5.3
min
10.2
8.2
φ1.8
±0.05
φ0.9
±0.05
5.1
φ0.9
±0.05
8.2
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
10.2
7.7
1
FDZ CONNECTOR
Connector
Top entry type
(Before slide lock)
B
7.7
Circuits
5
6
8
9
10
10.2
12.7
Hook
11
12
13
17
19
Boss
1.5
φ1.5
2.54
2.54
A
0.6
5.3
2.6
Model No.
Top entry type
Side entry type
05FDZ-BT(S)
05FDZ-ST(S)
06FDZ-BT(S)
06FDZ-ST(S)
08FDZ-BT(S)
08FDZ-ST(S)
09FDZ-BT(S)
09FDZ-ST(S)
10FDZ-BT(S)
10FDZ-ST(S)
11FDZ-BT(S)
11FDZ-ST(S)
12FDZ-BT(S)
12FDZ-ST(S)
13FDZ-BT(S)
13FDZ-ST(S)
17FDZ-BT(S)
17FDZ-ST(S)
19FDZ-BT(S)
ー
Dimensions (mm)
A
B
10.16
12.70
17.78
20.32
22.86
25.40
27.94
30.48
40.64
45.72
23.56
26.10
31.18
33.72
36.26
38.80
41.34
43.88
54.04
59.12
Q'ty / box
100
100
100
100
100
50
50
50
50
50
3.5
Material and Finish
Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
Housing: Glass-filled PBT, UL94V-0
Side entry type
(After slide lock)
B
3.1
7.7
RoHS compliance
This product displays (LF)(SN) on a label.
Note: 19FDZ-BT(S) is not UL/CSA approved.
1.5
2.54
φ1.5
2.54
A
5.3
2.6
Lead section dimensions of FPC
（
N
＋1）
×2.54
2.54
2.54
（
N
−1）
×2.54
1.3
3.81
2.54
125μm
（75∼200μm）
2.0
10.2
1.2
Note: N --- Number of circuits
2
3.0 5.0
