1-1623838-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 1-1623838-1

1-1623838-1: DescriptionTrimmer, Cermet, 0.5W, 20000ohm, 10% +/-Tol, 1 Turn(s), ROHS COMPLIANT; CategoryPassive components The resistor; File Size190KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1623838-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1623838-1	-	-	View	Buy Now

1-1623838-1 Overview

Trimmer, Cermet, 0.5W, 20000ohm, 10% +/-Tol, 1 Turn(s), ROHS COMPLIANT

1-1623838-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1666346944
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Actuator direction	HORIZONTAL
Actuator type	SCREW
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.5 W
resistance	20000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
surface mount	NO
technology	CERMET
Terminal shape	WIRE
Tolerance	10%

Preview

Download Datasheet

View All

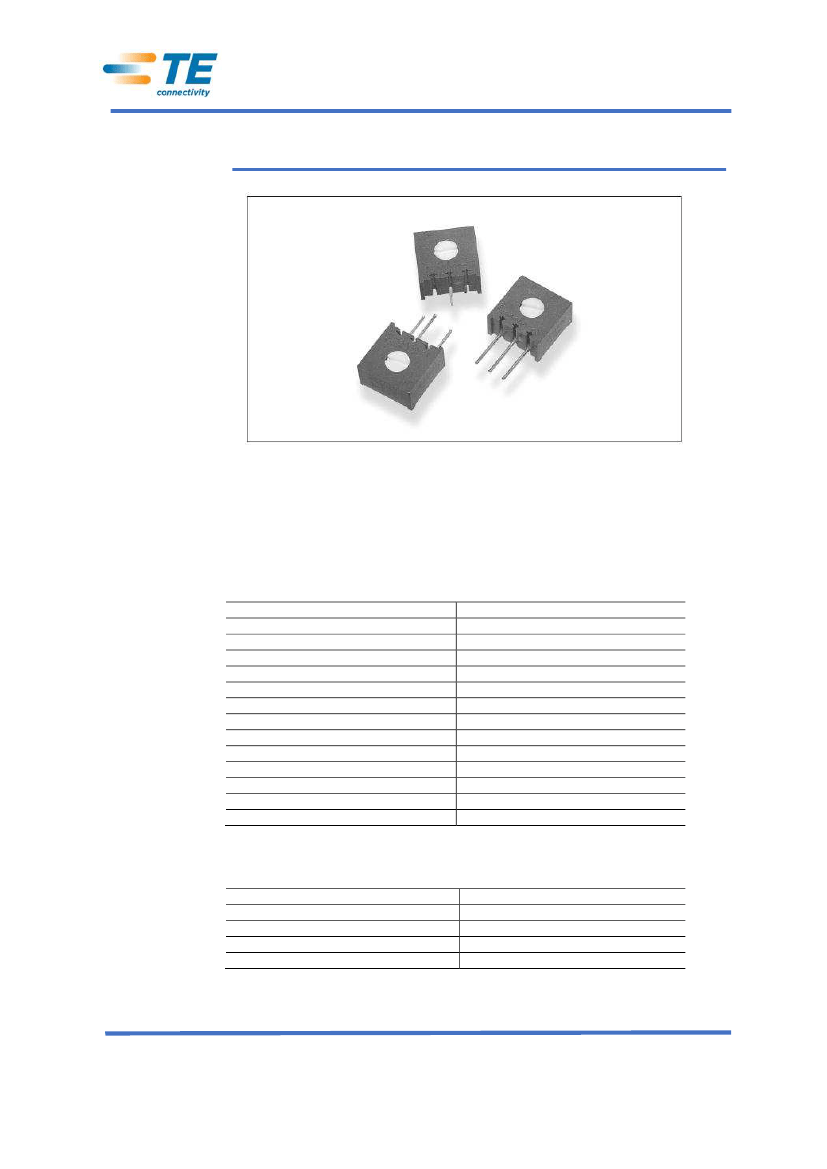

Professional Trimmers

Type 4295 Series

Key Features

High

Resolution

Cermet

Element

Enclosure

Sealed

0.5 Watt Rating

at 85°C

Flame

Retardant

Robust

Construction

Vertical or

Horizontal

Adjustments

Available

Finger

Adjustment

Available

These long established 10mm square, single turn potentiometers will meet a

wide range of industrial and professional applications. Cermet element

technology ensures stability and reliability. This P.C.B. mounted package has

easy top or side adjustment, or finger adjust styles. All components are

sealed to withstand printed circuit board washing solvents.

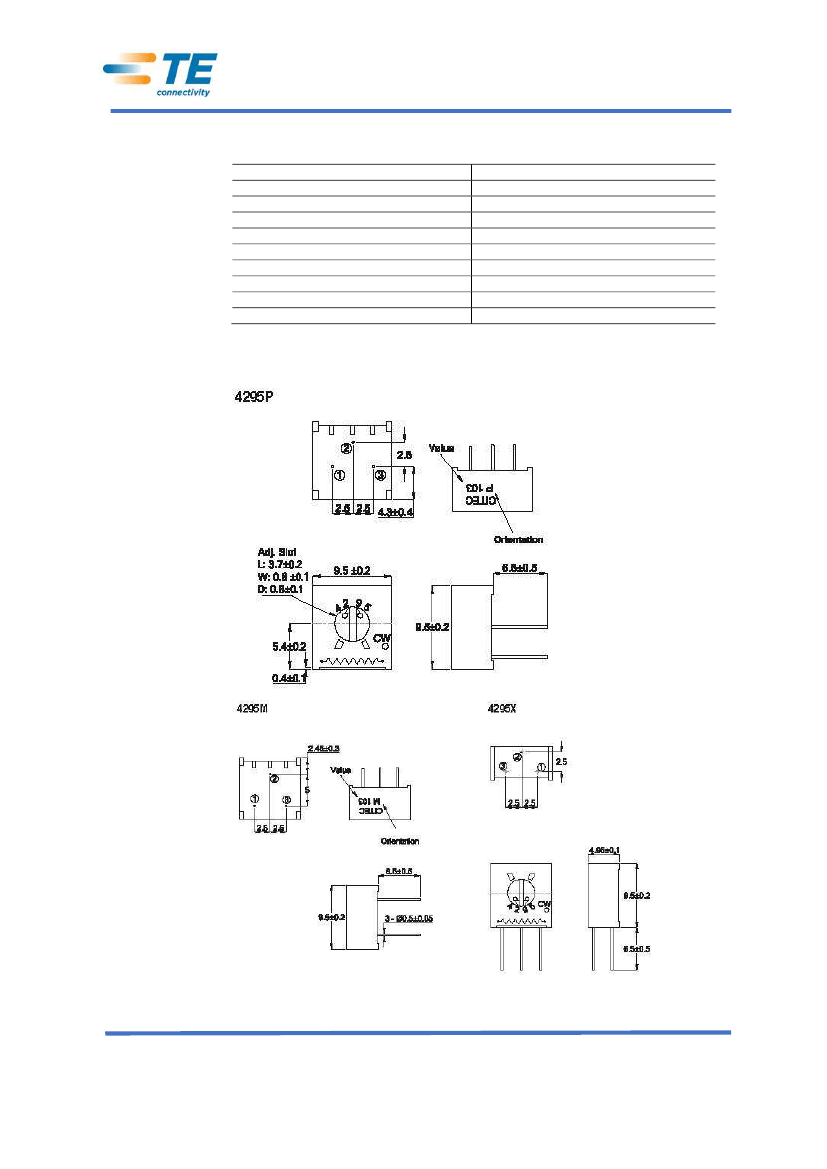

Characteristics

–

Electrical

Resistance range

STD resistance values

STD resistance tolerance

End resistance

Slider current

Power rating

Isolation voltage

Limiting element voltage

Breakdown voltage (sea level)

Insulation resistance

Resolution

Rotational noise (CRV)

Temperature coefficient

Electrical adjustment

100R to 2M0

1, 2 and 5 in each decade

±10%

Ω or % hiche er is lo er

100mA or within power rating, Max.

0.5W @ 85°C derating to zero at 125°C

300VDC or AC peak

220VDC or AC RMS Max.

900VAC for 1 minute

MΩ@ 5 VDC Min.

Essentially infinite

Ω or % Min

±250ppm/°C Max.

280° nominal

Characteristics

–

Mechanical

End stop

Starting Torque

Mechanical adjustment

Weight

Solderability

40mNm Min.

35mNm Max.

300° nominal

0.85g nominal

MIL Std 202 Method 208A

1773170 CIS BI 01/2016

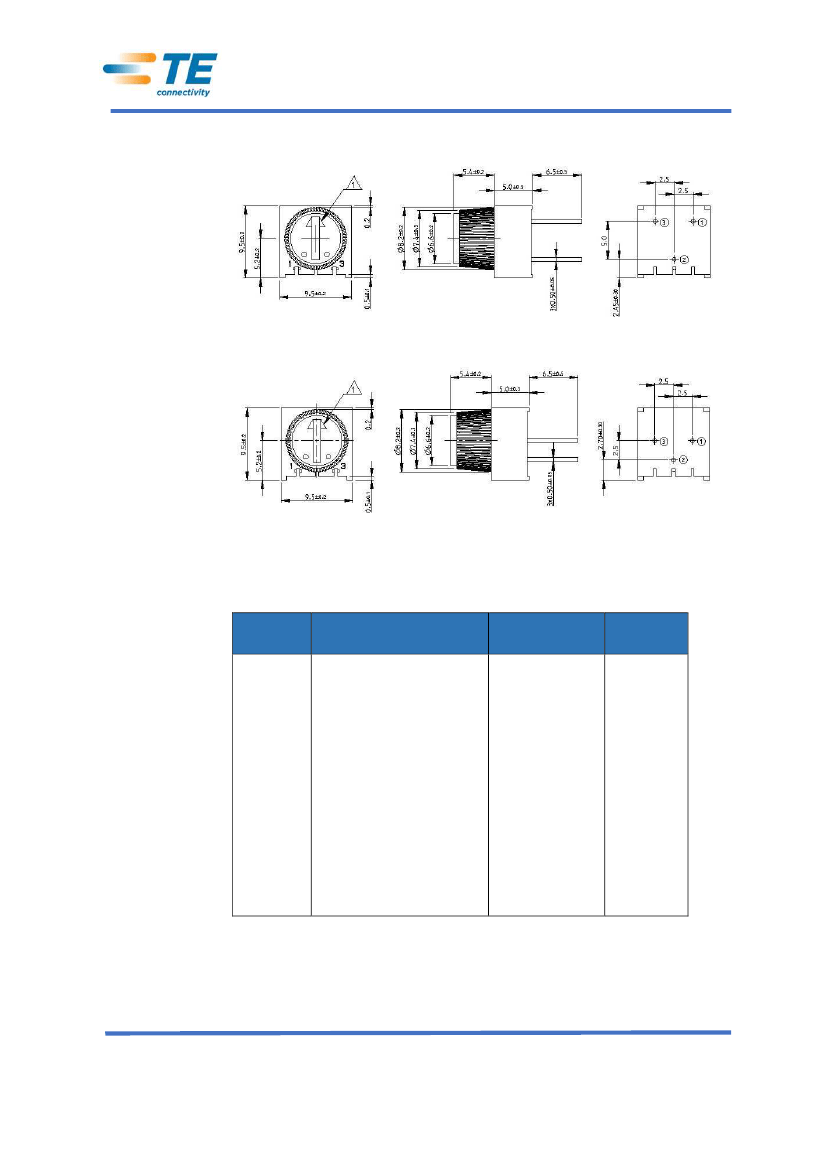

Dimensions in

millimetres unless

otherwise specified

Dimensions Shown for

reference purposes only.

Specifications subject to

change

For Email, phone or live chat,

go to: www.te.com/help
