Technical Data Sheet
FAKRA-HF
PLASTIC HOUSING
59Z074-C00-Y
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification

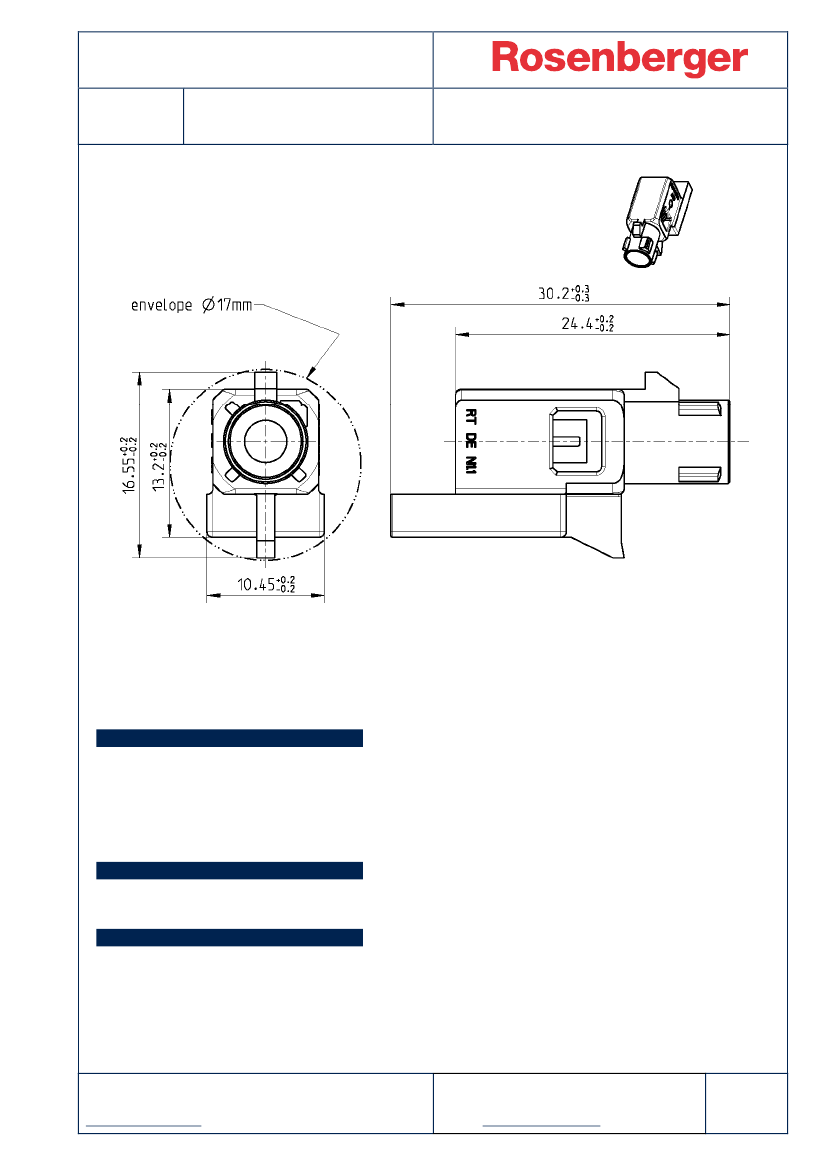

Interface and coding
According to
Clip slot suitable for
DIN 72594-1, USCAR 17
Raymond clip 212482000 (drawing dated 02/July/08;
Ford part no. 9U5T-14EO2-KA)
Material and plating
Connector parts
Housing
Material
PBT GF23
≥
25
≥
110 N
≥
40 N
Mechanical data
Mating cycles
Retention force primary lock
Coding efficiency
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
FAKRA-HF
PLASTIC HOUSING
59Z074-C00-Y
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
compliant
6.2
6.3
6.1
6.4
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
Application
Applicable e.g. for following connectors:
59S16A-1**, 59S10O**,
Packing
Standard
Weight
400 pcs in box
1,31 g/pce

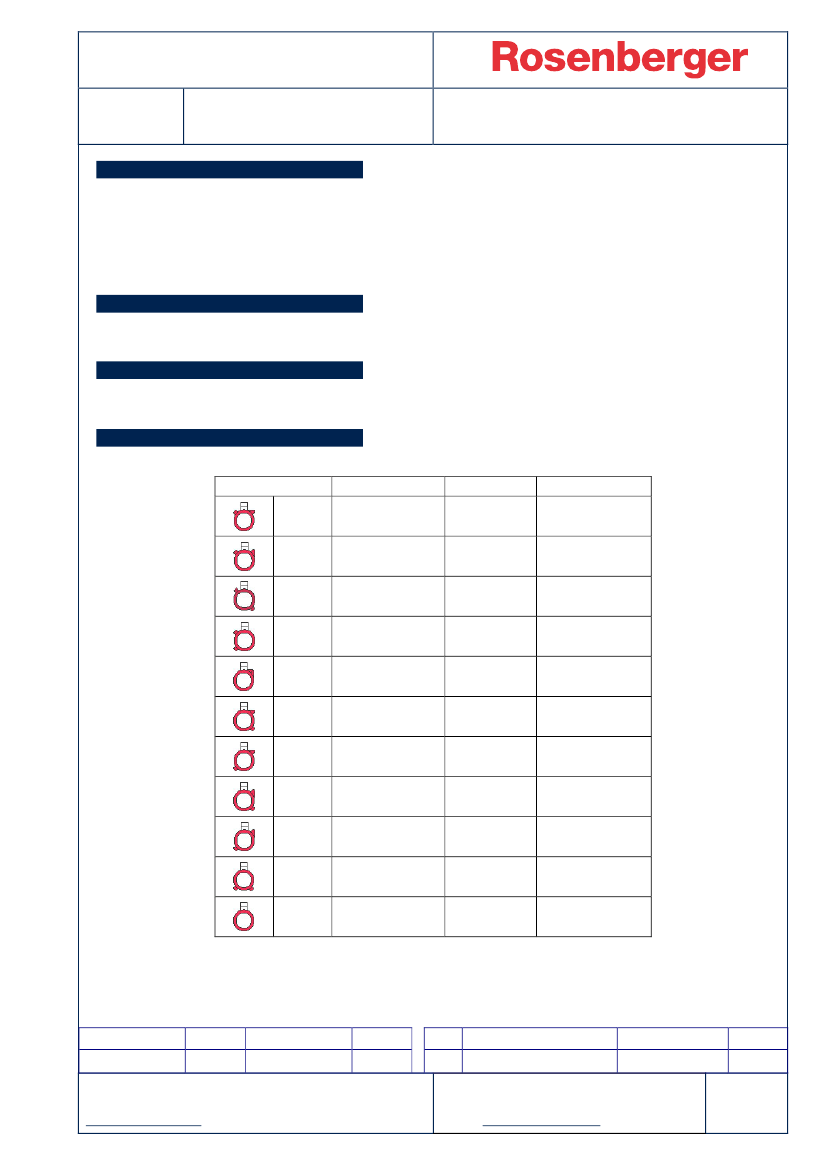

Coding
Part Number has to be accomplished by codification
Coding
A
B
C
D
E
F
G
H
I
K
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
waterblue
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 5021
Part-Number
59Z074-C00-A
59Z074-C00-B
59Z074-C00-C
59Z074-C00-D
59Z074-C00-E
59Z074-C00-F
59Z074-C00-G
59Z074-C00-H
59Z074-C00-I
59Z074-C00-K
59Z074-C00-Z
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
M_Singhammer
Date
12/08/09
Approved
R.Bippus
Date
28/06/12
Rev.
a00
Engineering change number
12-s275
Name
F. Hohenadl
Date
28/06/12
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Fax : +49 8684 18-499
Email : info@rosenberger.de
Page
2/2
