D37S33E6RL09LF: DescriptionD-Sub Standard Connectors 37P SKT RA US STAND M3 INSERT; CategoryThe connector; File Size162KB，2 Pages; ManufacturerFCI / Amphenol; Environmental Compliance

Download Datasheet Parametric Compare View All

D37S33E6RL09LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D37S33E6RL09LF	-	-	View	Buy Now

D37S33E6RL09LF Overview

D-Sub Standard Connectors 37P SKT RA US STAND M3 INSERT

D37S33E6RL09LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI / Amphenol
Product Category	D-Sub Standard Connectors
RoHS	Details
Number of Positions	37 Position
Contact Gender	Socket (Female)
Termination Style	Through Hole
Mounting Angle	Right Angle
Number of Rows	2 Row
Shell Size	4 (C)
Contact Plating	Gold
Packaging	Tray
Current Rating	5 A
Gender	Female
Type	Receptacle
Voltage Rating	300 V
Pitch	2.84 mm
Shell Plating	Semi bright Nickel
Insert Arrangement	C37
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Factory Pack Quantity	15

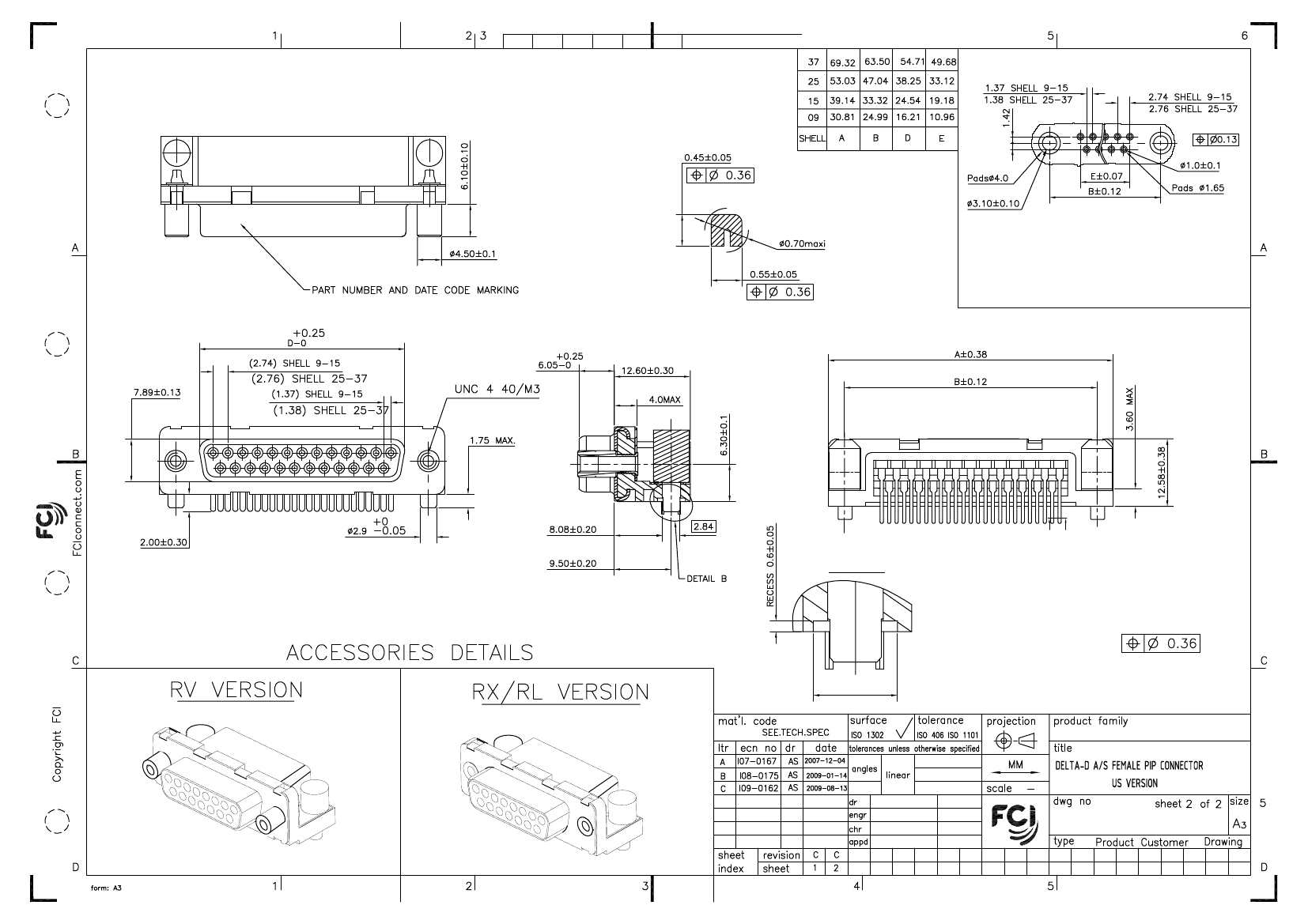

Preview

Download Datasheet

View All

SERIES

NO.OF CONTACTS

09,15,25,37

SEE NOTE RoHS

PACKAGING SPECIFICATION

09- TRAY PACKAGING

MOUNTING OPTIONS

TYPE OF CONTACTS

S-SOCKET

TYPE OF TERMINATION

33-ANGLED SPILL

PITCH 2.84 USA

FOOT PRINT 8.08 USA

HEIGHT OF TERMINATION

E-2.00mm COMPATIBLE FOR 1.6mm PCB

RoHS INFORMATIONS

"This LF product meets European Union Directives and other country

regulations as described in GS-22-008"

The housing will withstand exposure to 260°C peak temperature for 30 seconds

in a convection,infra-red or vapor reflow oven solder application.

Packaging as per GS-14-920

RV->LIF METAL PEG +F.SCREW LOCK UNC 4 40+METAL BRACKET

RL->LIF METAL PEG+ INSERT M3+METAL BRACKET

RX->LIF METAL PEG + INSERT UNC 4-40 +METAL BRACKET

PLATING

6->500 Mating/Un-mating performance

4->200 Mating/Un-mating performance

PRODUCT SPECIFICATION

See :- GS-12-433

PACKAGING SPECIFICATION

See :- GS-14-1157

.00±0.1

0°±1°

ANISH.SALAM

.000±.00X

2007-12-04

2009-08-13

DELTA-D

C-DD-0099

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

D37S33E6RL09LF Related Products

	D37S33E6RL09LF	D37S33E6RV09LF	D25S33E6RL09LF	D15S33E6RV09LF	D37S33E6RX09LF	D15S33E6RX09LF	D25S33E6RV09LF
Description	D-Sub Standard Connectors 37P SKT RA US STAND M3 INSERT	D-Sub Standard Connectors 37P SKT RA US STAND UNC 4-40 FM SCREW	D-Sub Standard Connectors 25 POS R/A SOCKET SHELL SZ B M3 INSERT	D-Sub Standard Connectors Right angle 15 way Socket	D-Sub Standard Connectors 37P SKT RA US STAND UNC 4-40 INSERT	D-Sub Standard Connectors Right angle 15 way Socket	D-Sub Standard Connectors Right angle 25 way Socket
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol	FCI / Amphenol
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub Standard Connectors
RoHS	Details	Details	Details	Details	Details	Details	Details
Number of Positions	37 Position	37 Position	25 Position	15 Position	37 Position	15 Position	25 Position
Contact Gender	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)
Termination Style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Mounting Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Number of Rows	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row	2 Row
Shell Size	4 (C)	4 (C)	3 (B)	2 (A)	4 (C)	2 (A)	3 (B)
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Packaging	Tray	Tray	Tray	Tray	Tray	Tray	Tray
Current Rating	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Gender	Female	Female	Female	Female	Female	Female	Female
Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Voltage Rating	300 V	300 V	300 V	300 V	300 V	300 V	300 V
Shell Plating	Semi bright Nickel	Semi bright Nickel	Semi bright Nickel	Semi bright Nickel	Semi bright Nickel	Semi bright Nickel	Semi bright Nickel
Insert Arrangement	C37	C37	B25	A15	C37	A15	B25
Maximum Operating Temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum Operating Temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
Factory Pack Quantity	15	15	20	25	15	25	20
