1775953001

Description
Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE
CategoryThe connector    The connector
File Size27KB,1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1775953001 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE

1775953001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionHALOGEN FREE
Reach Compliance Codecompli
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceYES
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts5
UL Flammability Code94V-0
Base Number Matches1

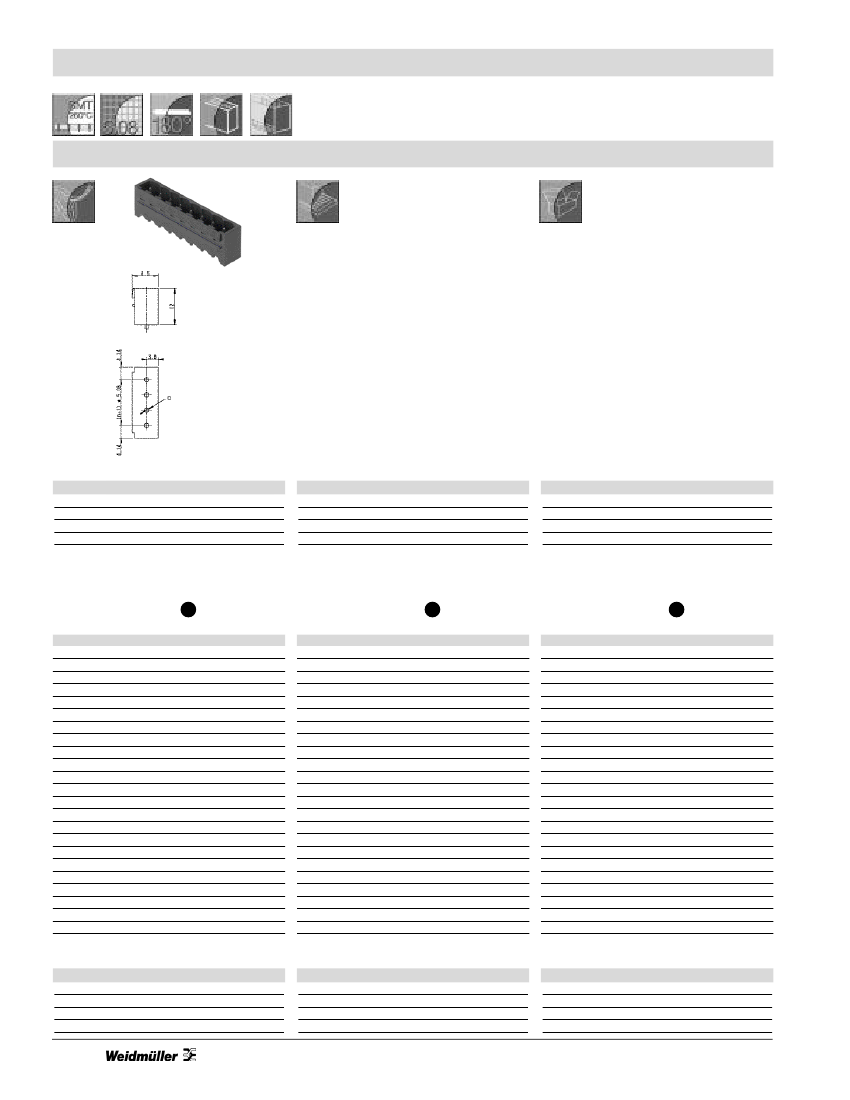

Omnimate Range - 5.08 mm Pitch
Pin headers SL-SMT 5.08/180G
D = up to 8 poles Ø 1.4
+0.1
from 9 poles Ø 1.5
+0.1
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
Solder pin length
Tape-on-Reel
Color: Black
Tape width
Poles Type
2
SL-SMT 5.08/2/180G
3
SL-SMT 5.08/3/180G
4
SL-SMT 5.08/4/180G
5
SL-SMT 5.08/5/180G
6
SL-SMT 5.08/6/180G
7
SL-SMT 5.08/7/180G
1.5 mm
Solder pin length
Tray
Color: Black
Qty.
200
200
200
200
200
200
Poles
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SL-SMT 5.08/4/180G
SL-SMT 5.08/5/180G
SL-SMT 5.08/6/180G
SL-SMT 5.08/7/180G
SL-SMT 5.08/8/180G
SL-SMT 5.08/9/180G
SL-SMT 5.08/10/180G
SL-SMT 5.08/11/180G
SL-SMT 5.08/12/180G
SL-SMT 5.08/13/180G
SL-SMT 5.08/14/180G
SL-SMT 5.08/15/180G
SL-SMT 5.08/16/180G
SL-SMT 5.08/17/180G
SL-SMT 5.08/18/180G
SL-SMT 5.08/19/180G
SL-SMT 5.08/20/180G
SL-SMT 5.08/21/180G
SL-SMT 5.08/22/180G
SL-SMT 5.08/23/180G
SL-SMT 5.08/24/180G
1.5 mm
Solder pin length
Standard Box
Color: Black
Qty.
66
54
48
42
36
30
30
24
24
24
18
18
18
18
12
12
12
12
12
12
12
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SL-SMT 5.08/2/180G
SL-SMT 5.08/3/180G
SL-SMT 5.08/4/180G
SL-SMT 5.08/5/180G
SL-SMT 5.08/6/180G
SL-SMT 5.08/7/180G
SL-SMT 5.08/8/180G
SL-SMT 5.08/9/180G
SL-SMT 5.08/10/180G
SL-SMT 5.08/11/180G
SL-SMT 5.08/12/180G
SL-SMT 5.08/13/180G
SL-SMT 5.08/14/180G
SL-SMT 5.08/15/180G
SL-SMT 5.08/16/180G
SL-SMT 5.08/17/180G
SL-SMT 5.08/18/180G
SL-SMT 5.08/19/180G
SL-SMT 5.08/20/180G
SL-SMT 5.08/21/180G
SL-SMT 5.08/22/180G
SL-SMT 5.08/23/180G
SL-SMT 5.08/24/180G
1.5 mm
56 mm
Part No.
1775924001
1775934001
1775944001
1775954001
1775964001
1775974001
Part No.
1775943001
1775953001
1775963001
1775973001
1775983001
1775993001
1776003001
1776013001
1776023001
1776243001
1776253001
1776263001
1776273001
1776283001
1776293001
1776303001
1776313001
1776323001
1776333001
1776343001
1776353001
Part No.
1775922001
1775932001
1775942001
1775952001
1775962001
1775972001
1775982001
1775992001
1776002001
1776012001
1776022001
1776242001
1776252001
1776262001
1776272001
1776282001
1776292001
1776302001
1776312001
1776322001
1776332001
1776342001
1776352001
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Additional pole numbers and tape widths on request.
Minimum order quantities may apply.
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
14
Page
190
192,193
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
Page
190
192,193
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
Page
190
192,193
