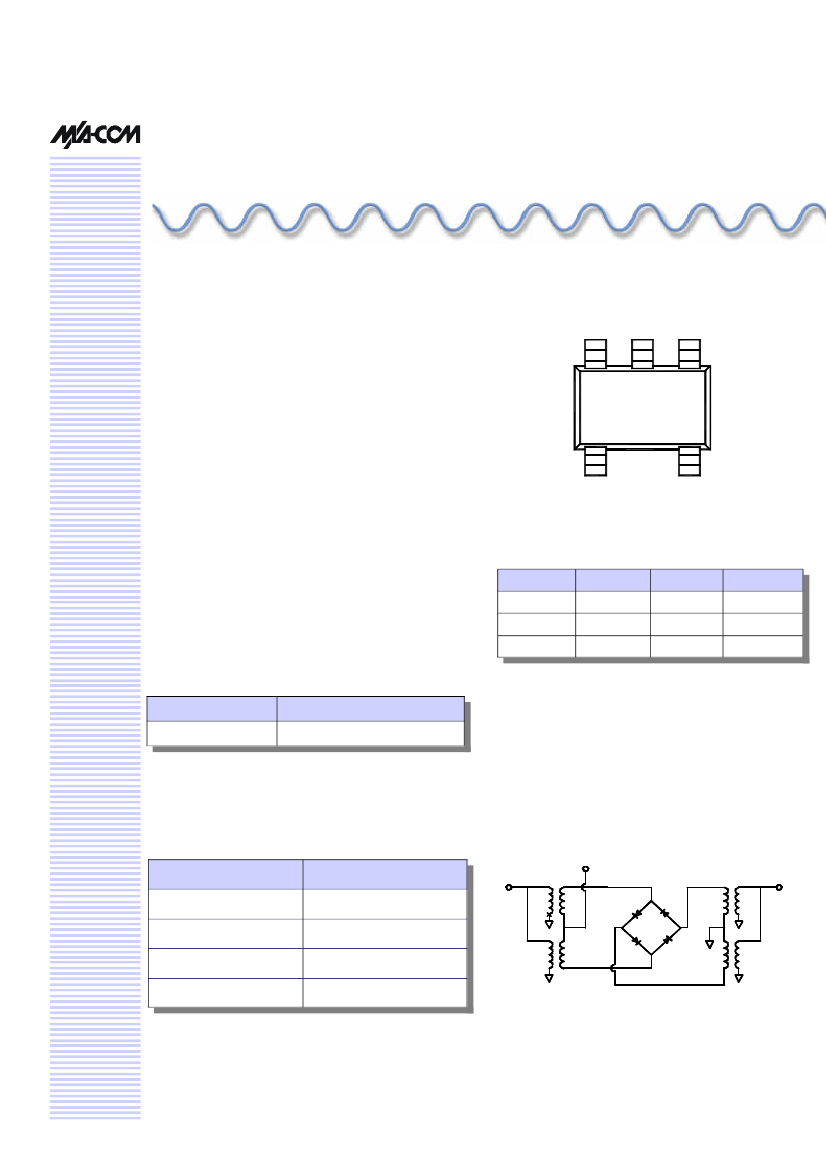

Silicon Double Balanced HMIC
TM
Mixer
LO=3300 MHz, RF=5800 MHz
V 2.00
MA4EX585L-1225T
Features
n
n
n
n
n
n
LO = 3300 MHz, RF = 5800 MHz
+3 dBm to +7 dBm LO Drive
8.3 dB Typical Conversion Loss
Double Balanced Passive Mixer
NO External Matching Required
Low Cost SOT-25 Miniature Plastic Package
Outline SOT 25 -
Top View
3
2
1
Description
M/A-COM's MA4EX585L-1225T is a silicon monolithic
double balanced mixer in a low cost miniature surface
mount SOT25 package. The die uses M/A-COM’s unique
HMIC silicon/glass process to realize low loss passive
elements while retaining the advantages of low barrier
silicon Schottky barrier diodes to produce a compact device.
4
5
Applications
These mixers are well suited for high volume cordless
phone and WLAN applications where small size and
repeatability are required. Typical applications include
frequency conversion, modulation, and demodulation in
wireless receivers and transmitters.
PIN Configuration
PIN
1
2
3
Function
RF
Gnd
LO
PIN
4
5
Function
Gnd
IF
Ordering Information
Part Number
MA4EX585L-1225T
Package
Tape and Reel
Absolute Maximum Ratings
1
Parameter
Operating Temperature
Storage Temperature
Incident LO Power
Incident RF Power
Maximum Ratings
Schematic
IF
RF
LO
-40 °C to +85 °C
-65 °C to +150 °C
+20 dBm
+20 dBm
1. Exceeding these limits may cause permanent damage.
Silicon Double Balanced HMIC
TM
Mixer, LO=3300 MHz, RF=5800 MHz
MA4EX585L-1225T
V 2.00
Electrical Specifications: @ + 25 °C
Parameter
Conversion Loss
Frequency Range
LO = 3.3+/-0.2 GHz
RF = 5.8+/-0.2 GHz
Test Conditions
LO Drive = +5 dBm
RF = -10 dBm
LO Drive = +5 dBm
Units
dB
Min.
-
Avg.
8.3
Max.
9.0
L - R Isolation
LO = 3.3 GHz
dB
-
28.0
-
R - L Isolation
RF = 5.8 GHz
LO Drive = +5 dBm
RF = -10 dBm
dB
-
24.0
-
L - I Isolation
LO = 3.3 GHz
LO Drive = +5 dBm
dB
dB
-
-
-
24.0
-
-
R - I Isolation
RF = 5.8 GHz
LO Drive = +5 dBm
RF = -10 dBm
dB
12.0
-
RF VSWR
RF = 5.8 GHz
LO Drive = +5 dBm
RF = -10 dBm
Ratio
-
2.4:1
-
LO VSWR
LO = 3.3 GHz
LO Drive = +5 dBm
Ratio
-
-
1.8:1
-
IF VSWR
IF = 2.5 GHz
LO Drive = +5 dBm
IF = 0 dBm
Ratio
-
1.6:1
-
Input IP3
LO = 3.3 GHz
RF = 5.8 GHz
LO Drive = +5 dBm
RF = -10 dBm
LO Drive = +5 dBm
dBm
-
11.0
-
Input 1 dB Compression
LO = 3.3 GHz
RF = 5.8 GHz
dBm
-
1.1
-
2
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1908) 574 200, Fax+44 (1908) 574 300
Silicon Double Balanced HMIC
TM
Mixer, LO=3300 MHz, RF=5800 MHz
MA4EX585L-1225T
V 2.00

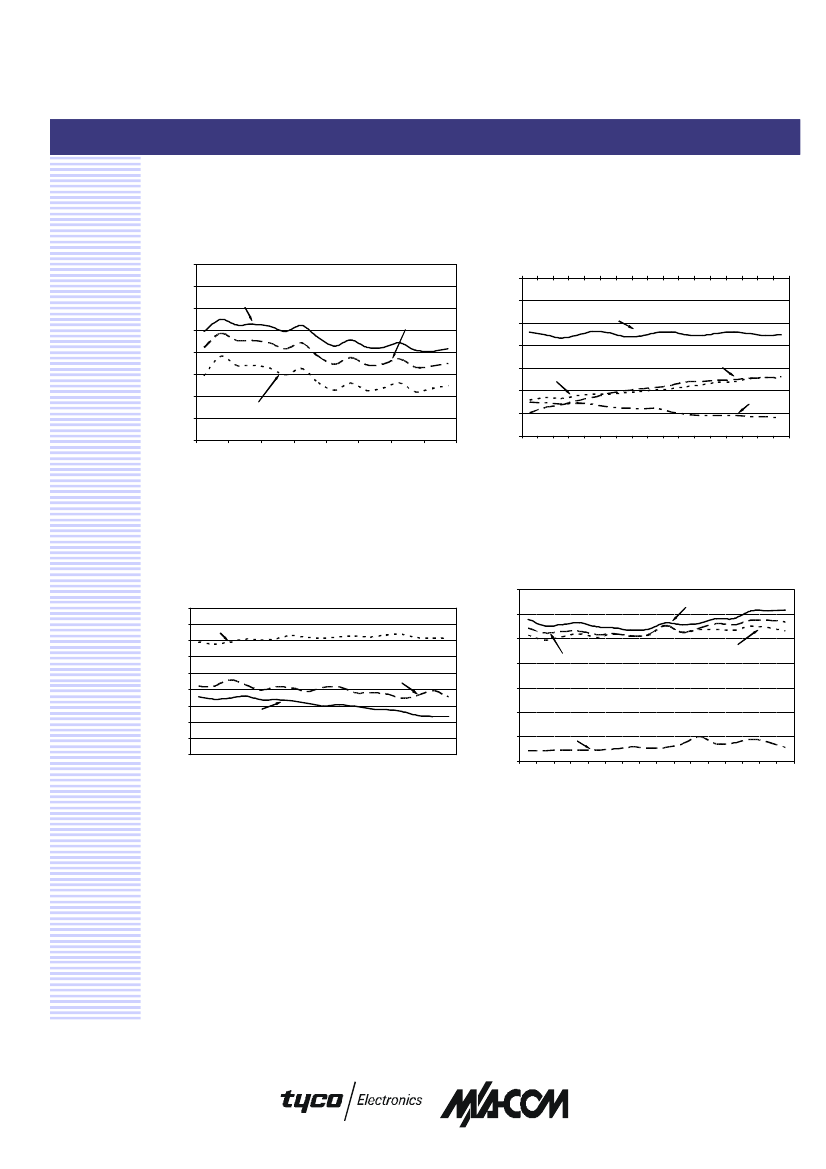

Typical Performance Curves (LO Drive = +5 dBm, RF = -10 dBm, IF = 2500 MHz)
Conversion Loss
6.000
Isolation
LO FREQUENCY (MHz)
3100
0
3150
3200
3250
3300
3350
3400
3450
3500
6.500
PLO = 7dBm
7.000
-5
LOSS (DB)
7.500
ISOLATION(dB)
PLO = 5dBm
R-I
-10
-15
8.000
L-I
-20
8.500
R-L
-25
9.000
L-R
PLO = 3dBm
-30
9.500
10.000
5600
5650
5700
5750
5800
5850
5900
5950
-35
5600
5650
5700
5750
5800
5850
5900
5950
6000
RF FREQUENCY (MHz)
FREQUENCY (MHz)
VSWR
IF FREQUENCY (MHz)
2300
2.80
2350
2400
2450
2500
2550
2600
2650
2700
INPUT IP3 & 1 dB Compression Power
14
PLO = 7dBm
12
2.60
2.40
RF Port
10
PLO = 3dBm
IP3 (dBm)
2.20
8
PLO = 5dBm
VSWR
2.00
1.80
1.60
IF Port
1.40
1.20
1.00
5600
3100
5650
3150
5700
3200
5750
3250
5800
3300
5850
3350
5900
LO Port
6
4
1db Compression Pt.
2
5950
3450
6000
3500
0
5600
5650
5700
5750
5800
5850
5900
5950
3400
RF & LO FREQUENCY (MHz)
FREQUENCY (MHz)
3
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1908) 574 200, Fax+44 (1908) 574 300
Silicon Double Balanced HMIC
TM
Mixer, LO=3300 MHz, RF=5800 MHz
Case Style - SOT-25
SOT-25
INCHES
MA4EX585L-1225T
V 2.00
MILLIMETERS
Dim
A
B
C
D
E
F
G
H
J
Min.
.106
.100
-
.032
.014
.003
.000
Max.
.122
.118
.051
.043
.020
Min.
2.70
2.54
-
.80
.35
.08
.00
Max.
3.10
3.00
1.30
.063 REF.
1.60 REF.
1.10
.50
-
.006
-
.15
.018 REF.
.45 REF.
Notes: 1. Leads Coplanarity should be 0.003 (0.08) max.
4
M/A-COM Inc. and its affiliates reserve the right to make changes to the product(s)
or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1908) 574 200, Fax+44 (1908) 574 300
