TECHNICAL DATA SHEET
FAKRA - HF
PLASTIC HOUSING
59Z064-000-Y
All dimensions are in mm; tolerances according to ISO 2768 m-H
Y = Part number has to be accomplished by codification

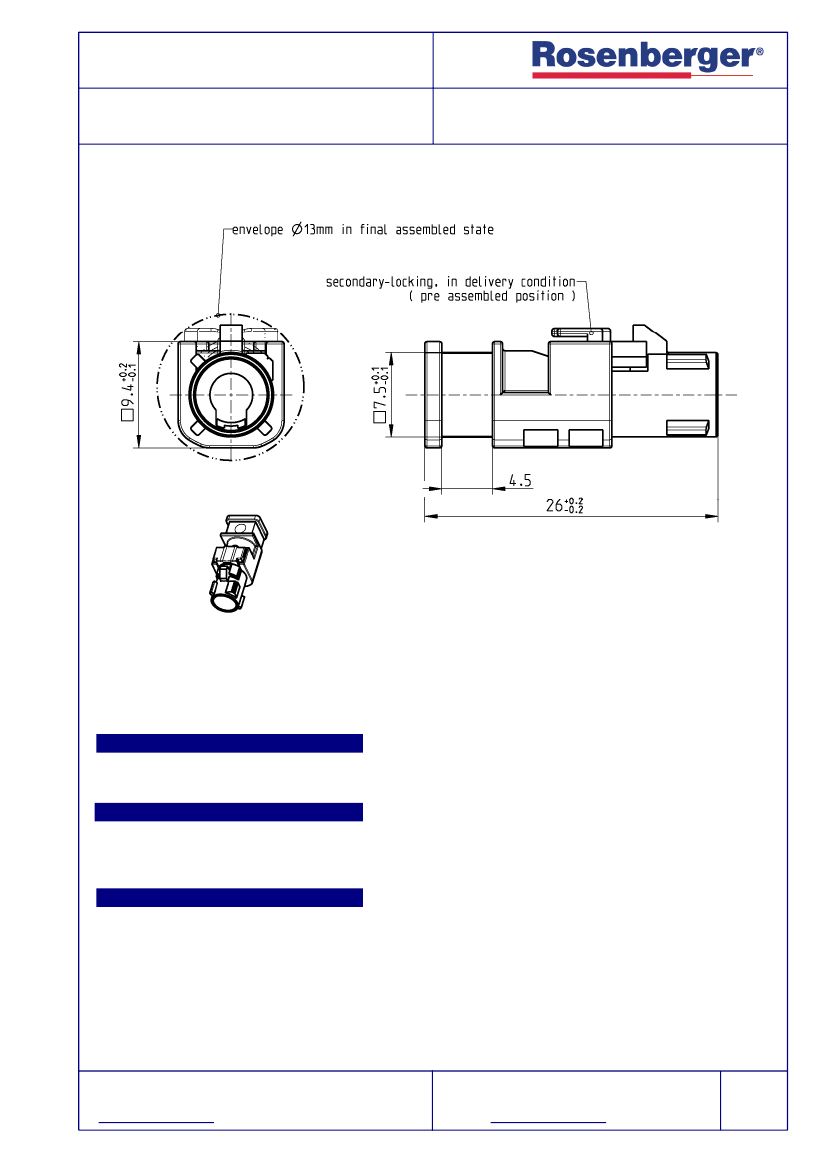

Interface and coding
According to
DIN 72594-1
Material
Housing
Secondary Lock
PBT
PBT
Mechanical data
Mating cycles
Retention force latch
Retention force primary lock
Retention force secondary lock
Coding efficiency
≥
≥
≥
≥
≥
25
110 N
80 N
60 N
40 N
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
FAKRA - HF
PLASTIC HOUSING
59Z064-000-Y
Environmental data
Temperature range
Thermal shock
Temperature and humidity
Vibration and mechanical shock
Dry heat
2002/95/EC (RoHS)
-40°C to +105°C
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
DIN 72594-2 clause
compliant
6.2
6.3
6.1
6.4
Application
Applicable e.g. for following connectors:
* xx
-for all available cable variations
59S10E-1xx *, 59S10L-1xx *, 59S10O-1xx *, 59S16A-1xx*
Packing
Standard
Weight
500 pcs in box; 2000 pcs in returnable box
1.07 g/pce
Coding
Part Number has to be accomplished by codification
Coding
A
B
C
D
E
F
G
H
I
K
L
M
N
Z
Color
black
white
blue
bordeauxviolet
green
brown
grey
violet
beige
curry
Carmine red
pastel orange
pastel green
waterblue
traffic purple
RAL
sim. 9005
sim. 9001
sim. 5005
sim. 4004
sim. 6002
sim. 8011
sim. 7031
sim. 4003
sim. 1001
sim. 1027
sim. 3002
sim. 2003
sim. 6019
sim. 5021
sim. 4006
Part-Number
59Z064-000_A
59Z064-000_B
59Z064-000_C
59Z064-000_D
59Z064-000_E
59Z064-000_F
59Z064-000_G
59Z064-000_H
59Z064-000_I
59Z064-000_K
59Z064-000_L
59Z064-000_M
59Z064-000_N
59Z064-000_Z
secondary lock
