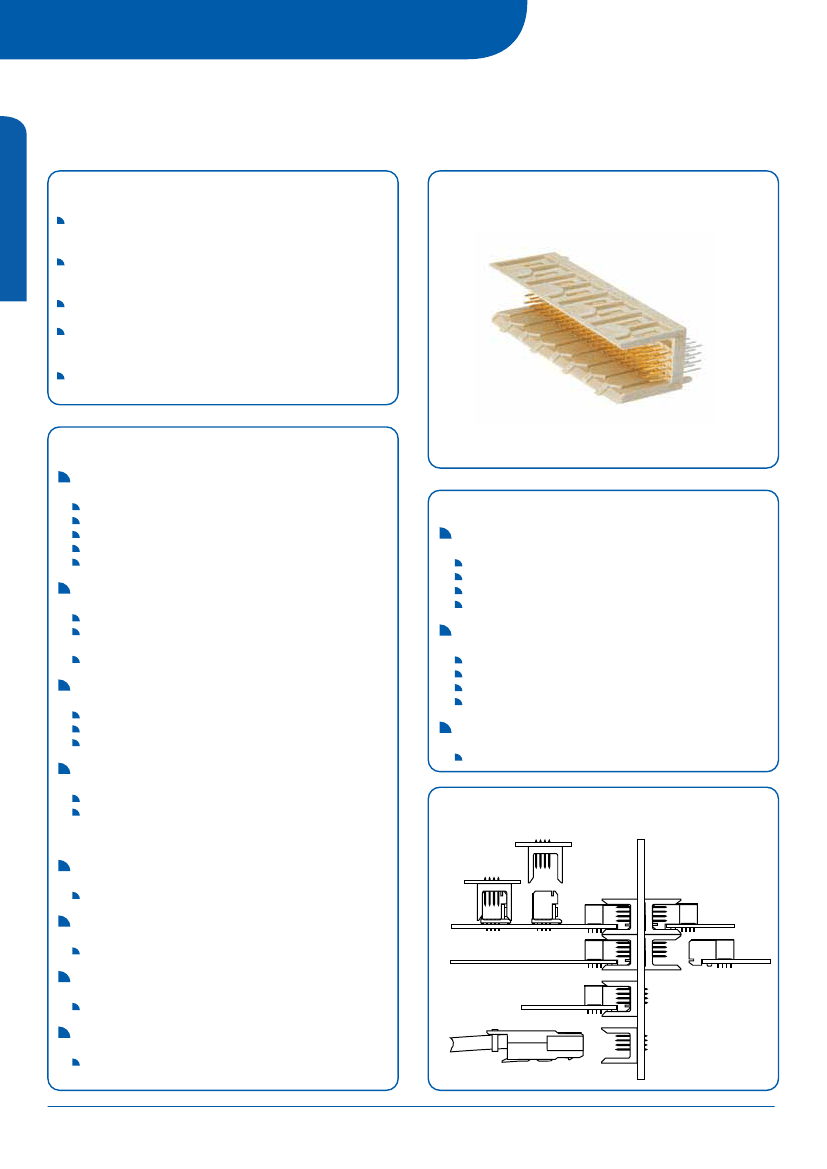

Header, 4 row, signal, straight, solder to board, wide body
FEATURES
In accordance with IEC 60917 and IEC 61076-4-104
(Futurebus+)
4 Rows and 2 mm pitch permit high signal density
(200 contacts per 100 mm connector length).
Stackable end-to-end without loss of positions.
Stackable with other METRAL™ function modules
(e.g. power, coax, guide pin).
First Make Last Break options.
TECHNICAL DATA
PHYSICAL
spacing: 2,00 mm x 2,00 mm
housing: glass-filled LCP, colour natural
flammability rating: UL 94 V-0
pin material: phosphor bronze
performance level: Telcordia CO
ELECTRICAL
current rating: 1 A
insulation resistance: 5x10
3
MΩ initially,
1x10
3
MΩ after tests
withstanding voltage: 1000 V rms (sea level)
MECHANICAL PERFORMANCE
insertion force: 0,45 N
max. per individual signal contact (mating)
withdrawal force: 0,15 N
max. per individual signal contact (unmating)
recommended hole diameter: 0,65-0,80 mm
ENVIRONMENTAL
Operating temperature range: -55˚C to +125˚C
RoHs information, this product is compatible
according to the European Union Directive
2002/95/IEC
PACKAGING
standard: tubes
PROCESSING INFORMATION
applicable soldering process: wave, IR, vapor phase
REFERENCE DATA
product specification.: GS-12-180
APPLICATION EQUIPMENT
for application equipment, check out the application
equipment table on page 217-223
MATING DATA
Receptacle, right angle, press-fit, page 34
1 mod – part number 88945-102LF
2 mod – part number 88946-102LF
4 mod – part number 88947-102LF
8 mod – part number 88948-102LF
Receptacle, right angle, solder-to-board, page 32
1 mod – part numbers 89035-102LF
2 mod – part numbers 89036-102LF
4 mod – part numbers 89037-102LF
8 mod - part numbers 89038-102LF
Receptacle, right angle, Pin-in-Paste, page 36
1 mod – part numbers 52048-101LF
TYPICAL APPLICATIONS
24
www.fci.com/metral
PRODUCT
1 Module
88951-1yyLF
11.93
1.4
6
2
23.93
1
2
10
2.3
6
D
C
B
A
17
3.45
15.8
0.5
B
A
11.5
2
2 Module
88952-1yyLF
47.93
4 Module
88953-1yyLF
95.93
8 Module
88954-1yyLF

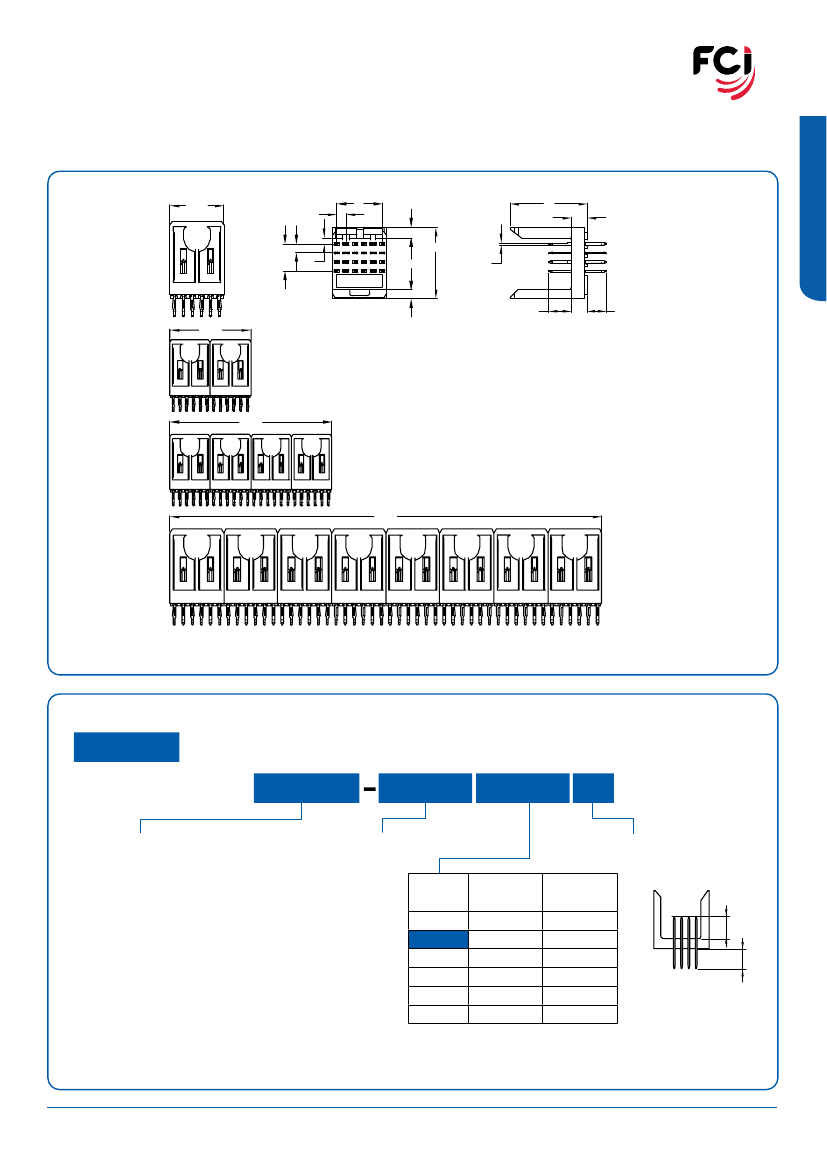

PCB pattern P5, see chapter PCB layouts
PARTNUMBERS
8895x - 1yyLF
Base Part Number
Performance
Pin Configuration
LF
88951
= 1 module (4 x 6 pos.)
88952
= 2 module (4 x 12 pos.)
88953
= 4 module (4 x 24 pos.)
88954
= 8 module (4 x 48 pos.)
1
= Telcordia CO
LF
= lead free
yy
01
05
31
35
61
mating
length (A)
5,00 mm
6,50 mm
5,00 mm
6,50 mm
5,00 mm
tail
length(B)
4,25 mm
4,25 mm
3,30 mm
3,30 mm
2,65 mm
A
B
Note:
for other special patterns or loadings, please check drawings, all other configurations on request only
www.fci.com/metral
25
SIGNAL CONNECTORS

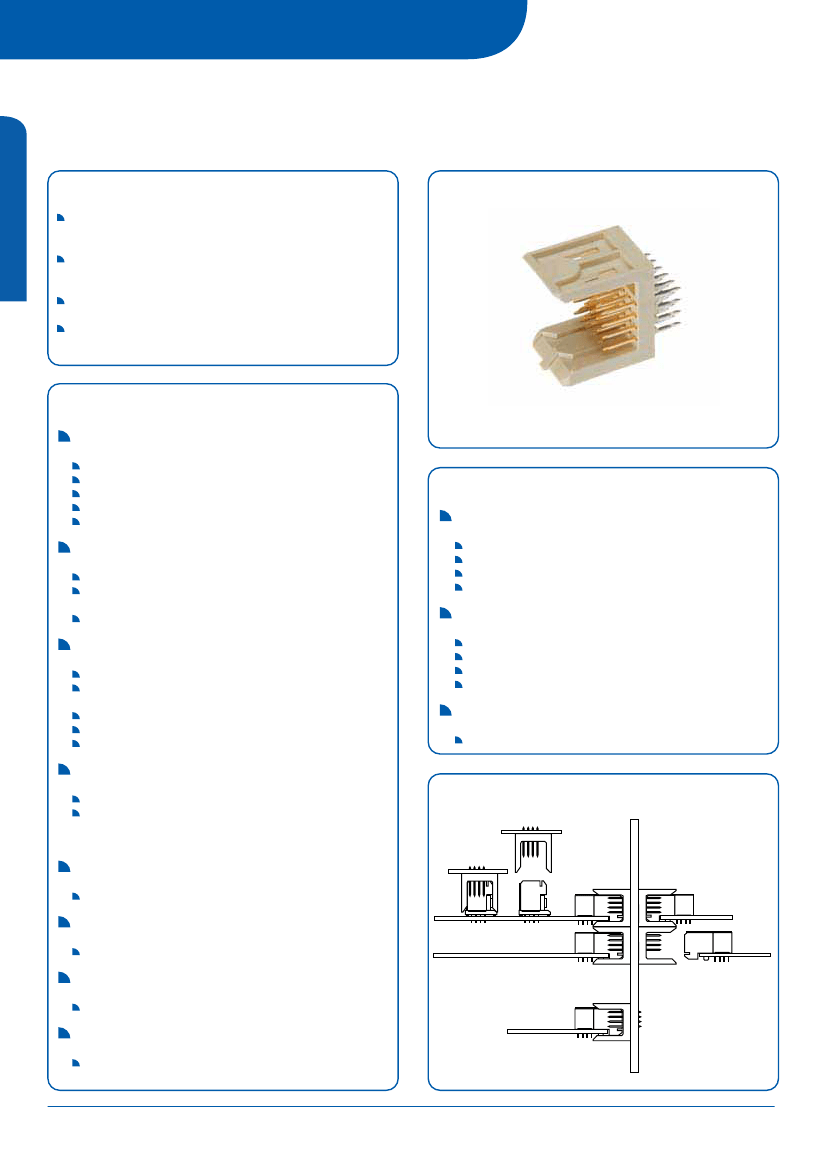

Header, 4 row, signal, straight, solder to board, wide body
METRAL
®
SIGNAL CONNECTORS STANDARD
SIGNAL CONNECTORS
Header, 4 row, signal, straight, press-fit, wide body
FEATURES
In accordance with IEC 60917 and IEC 61076-4-104
(Futurebus+)
4 row and 2 mm pitch permit high signal density
( 200 contacts per 100mm connector length)
Modular design guarantees flexibility
Eye of the needle press-fit contact
TECHNICAL DATA
PHYSICAL
spacing: 2,00 mm x 2,00 mm
housing: glass-filled LCP, colour natural
flammability rating: UL 94 V-0
pin material: phosphor bronze
performance level: Telcordia CO
ELECTRICAL
current rating: 1 A
insulation resistance: 5x10
3
MΩ initially,
1x10
3
MΩ after tests
withstanding voltage: 1000 V rms (sea level)
MECHANICAL PERFORMANCE
insertion force: 0,45 N
max. per individual signal contact (mating)
withdrawal force: 0,15 N
max. per individual signal contact (unmating)
press-fit contact insertion: 65 N
max. per pin
press-fit pin withdrawal: 15 N
min. per pin
recommended hole diameter: 0,65-0,80 mm
ENVIRONMENTAL
Operating temperature range: -55˚C to +125˚C
RoHs information, this product is compatible
according to the European Union Directive
2002/95/IEC
PACKAGING
standard: tubes
PROCESSING INFORMATION
Applicable process: press-fit
REFERENCE DATA
product specification.: GS-12-180
APPLICATION EQUIPMENT
for application equipment, check out the application
equipment table on page 217-223.
MATING DATA
Receptacle, right angle, press-fit, page 34
1 mod – part number 88945-102LF
2 mod – part number 88946-102LF
4 mod – part number 88947-102LF
8 mod – part number 88948-102LF
Receptacle, right angle, solder-to-board, page 32
1 mod – part numbers 89035-101LF
2 mod – part numbers 89036-101LF
4 mod – part numbers 89037-101LF
8 mod - part numbers 89038-101LF
Receptacle right angle, Pin-in-Paste, page 36
1 mod – part numbers 52048-101LF
TYPICAL APPLICATIONS
26
www.fci.com/metral
PRODUCT
1
11.93
6
1
2
10
6
D
C
B
A
17
3.45
2.30
15.80
11.50
2
A
B
0.5
1 Module
70232-1yyLF
6
2
1.4
1
23.93
12
2 Module
70233-1yyLF
1
47.93
24
4 Module
70234-1yyLF
95.93
1
48
8 Module
70235-1yyLF

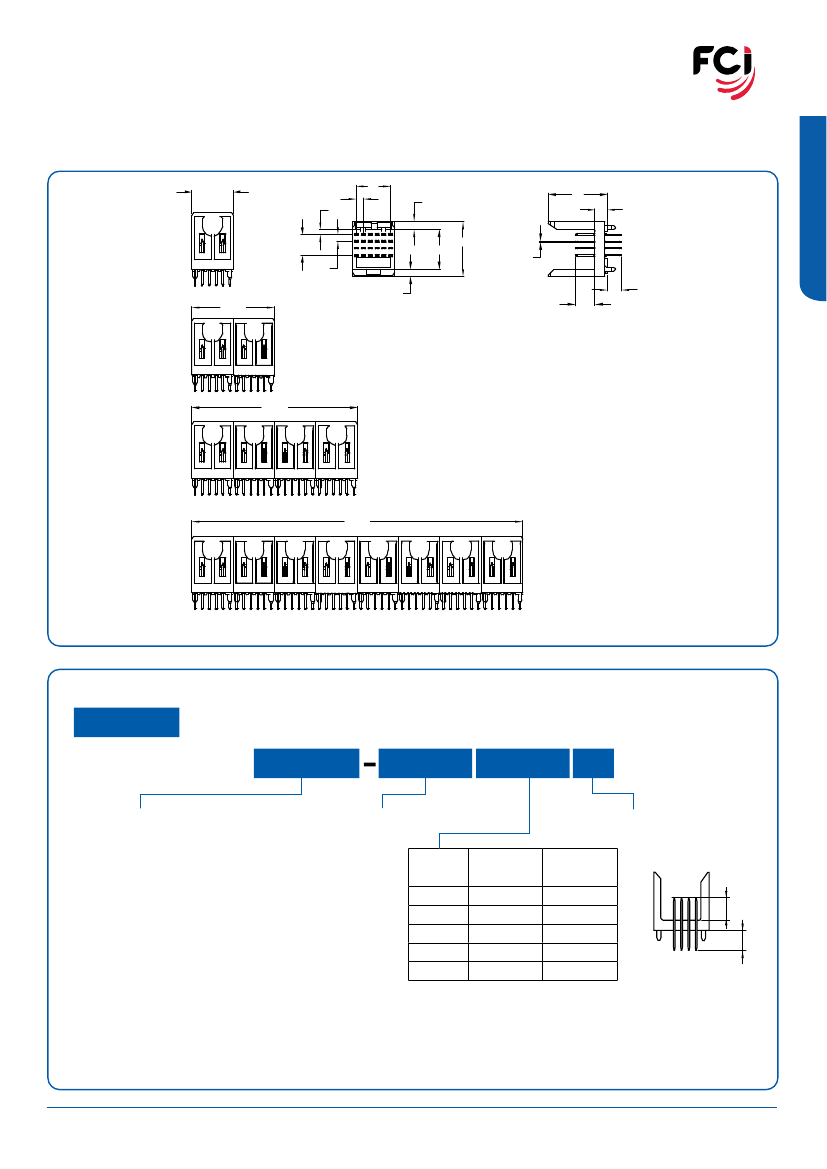

PCB pattern P6, see chapter PCB layouts
PARTNUMBERS
7023x - 1yyLF
Base Part Number
Performance
Pin Configuration
LF
70232
= 1 module (4 x 6 pos.)
70233
= 2 module (4 x 12 pos.)
70234
= 4 module (4 x 24 pos.)
70235
= 8 module (4 x 48 pos.)
1
= Telcordia CO
LF
= lead free
yy
11
16
15
21
26
25
mating
length (A)
5,00 mm
5,75 mm
6,50 mm
5,00 mm
5,75 mm
6,50 mm
tail
length (B)
4,30 mm
4,30 mm
4,30 mm
13,60 mm
13,60 mm
13,60 mm
A
B
Note:
blue marked in
pin configuration
is the preferred recommended standard
for other special patterns or loadings, please check drawings, all other configurations on request only
www.fci.com/metral
27
SIGNAL CONNECTORS
Header, 4 row, signal, straight, press-fit, wide body
