DRAFT
Basler Accessories
Technical Specification

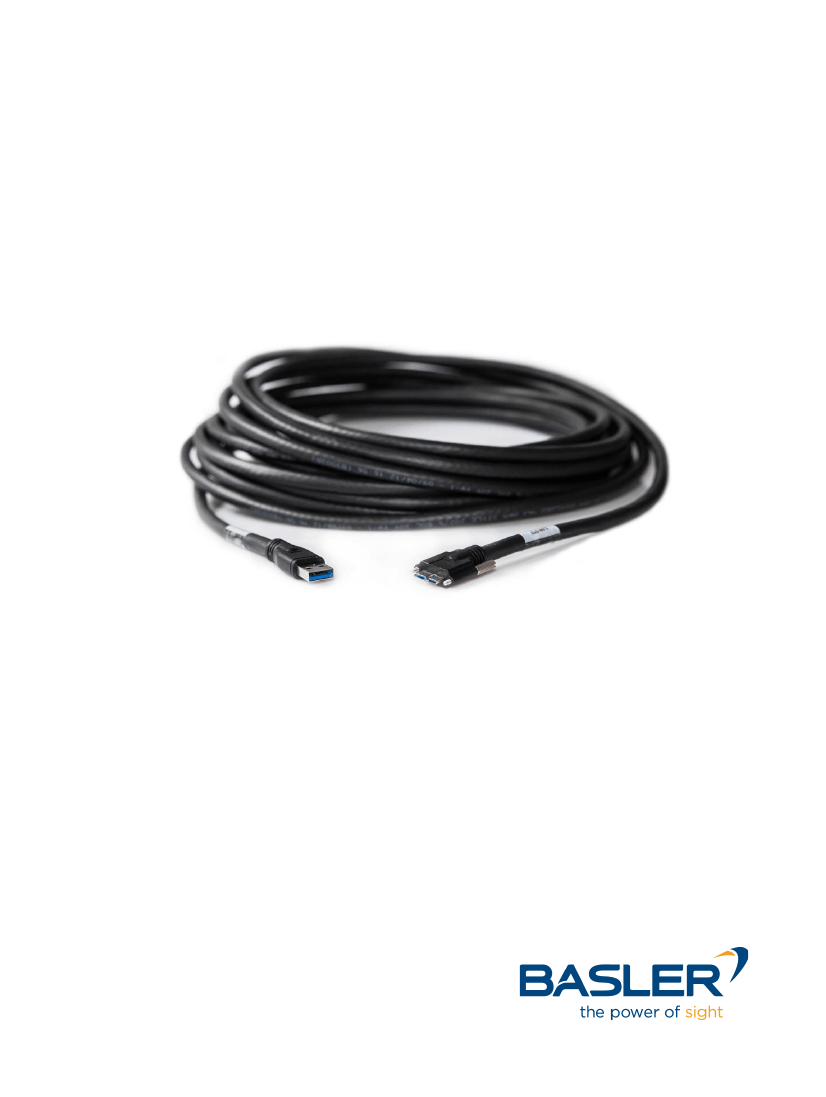

CABLE USB 3.0, MICRO B SCREW LOCK/A
Order Numbers
2000033239
2000033241
2000034891
Document Number: DG001429
Version: 01 Language: 000 (English)
Release Date: 12 December 2014
Contacting Basler Support Worldwide
Europe
Basler AG
An der Strusbek 60-62
22926 Ahrensburg
Germany
Tel. +49 4102 463 515
Fax +49 4102 463 599
support.europe@baslerweb.com
The Americas
Basler, Inc.
855 Springdale Drive, Suite 203
Exton, PA 19341
USA
Tel. +1 610 280 0171
Fax +1 610 280 7608
support.usa@baslerweb.com
Asia
Basler Asia Pte. Ltd.
35 Marsiling Industrial Estate Road 3
# 05 - 06
Singapore 739257
Tel. +65 6367 1355
Fax +65 6367 1255
support.asia@baslerweb.com
www.baslerweb.com
All material in this publication is subject to change without notice and is copyright
Basler AG.
DG00142901000
Basler Technical Specification
Order Number
2000033239
2000033241
2000034891
Table 1: Cable Types
Description
Data cable USB 3.0, Type A plug to
Micro B plug, 3 m
Data cable USB 3.0, Type A plug to
Micro B plug, 5 m
Data cable USB 3.0, Type A plug to
Micro B plug, 8 m
Applicable Cameras
ace USB 3.0
ace USB 3.0
ace USB 3.0
11 max.
16 max.
40 max.
45 max.
4 max.
11 max.
9 max.
Length depending on order number
8.5 max.
18
Dimensions in mm
Fig. 1: Cable Overview
Basler Cable USB 3.0, Micro B Screw Lock/A
22
1
Basler Technical Specification
DG00142901000
Transfer Rates
2000033239
USB 2.0
USB 3.0
Table 2: Transfer Rates
2000033241
480 Mbps
5 Gbps
2000034891
Physical Specifications
2000033239
Camera-Side
Connector
Host-Side
Connector
Cable Diameter
Minimum
Bending Radius
Maximum
Bending Cycles
Suitable for
Drag Chain
Applications
Suitable for
Robotics
Applications
Table 3: Physical Specifications
6.2 mm max.
124 mm (20 x cable
diameter), fixed installation
Micro B with screw lock,
USB3 Vision-compliant
2000033241
Micro B with screw lock,
USB3 Vision-compliant
2000034891
Micro B with screw lock
Type A connector, USB-IF-compliant
6.7 mm max.
134 mm (20 x cable
diameter), fixed installation
None (fixed installation only)
No
7.3 mm max.
125 mm, fixed installation
No
Electrical Specifications
2000033239
Maximum
Operating
Voltage
Table 4: Electrical Specifications
2000033241
See camera user’s manual
2000034891
2
Basler Cable USB 3.0, Micro B Screw Lock/A
DG00142901000
Basler Technical Specification
Environmental Specifications
2000033239
Operating
Temperature
Table 5: Environmental Specifications
2000033241
+80 °C max. (not moving)
2000034891
General Information
2000033239
RoHS
Compliance
CE Conformity
UL Conformity
Warranty
Table 6: General Information
UL 20272
2000033241
Yes
Yes (RoHS compliance)
UL 20272
1 year
UL 20276
2000034891
The cables are intended for use with the cameras specified in
Table 1
only.
Read the camera user’s manual including the safety warnings before connecting the cable to the
camera. The user’s manual also contains further information about pin assignments, power
requirements, as well as comprehensive information about installing and using the camera.
You can download the user’s manual and related documents for your camera free of charge from
the Basler website:
www.baslerweb.com.
Basler Cable USB 3.0, Micro B Screw Lock/A
3
