Surge Arrester
3-Electrode-Arrester
T90-A230XF
Ordering code:
B88069X6710C253
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
3)
Tip or ring electrode to center electrode
4)
Tip to ring electrode
5)
Total current through center electrode, half value through
tip respectively ring electrode
6)
Total current through center electrode, same value through
tip respectively ring electrode
7)
Total current from ring to tip electrode
8)
Test in accordance with ITU-Rec. K.12
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE 0845
2)
1)
Arrester fail safe works at temperatures > 260 °C. The arrester has to be
fixed mechanically, if the arrester is contacted by soldering and if the solder
temperature is less than 260 °C.

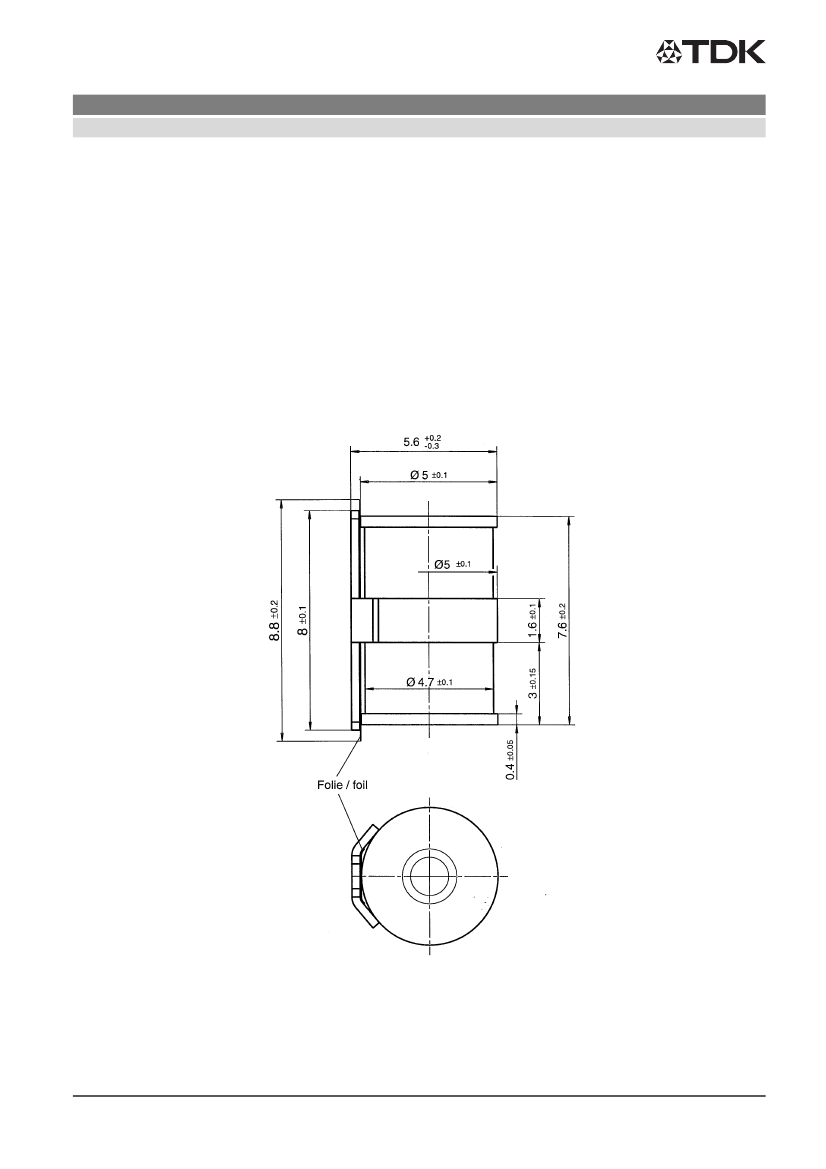

Not to scale
Dimensions in mm
