Surge arrester
2-electrode arrester
B88069X1620T602
A80-A230XSMD
Features
Standard size
Fast response time
High current rating
Stable performance over life
Very low capacitance
High insulation resistance
Excellent SMD handling
RoHS-compatible
Applications
Branch exchange (MDF)
Line protection
Subscriber protection
Electrical specifications
DC spark-over voltage
1) 2)
Impulse spark-over voltage
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
50 Hz; 1 s
50 Hz; 0.18 s (9 cycles)
8/20 µs
8/20 µs
10/350 µs
10/1000 µs
230
20
< 500
< 450
< 650
< 550
20
100
20
25
2.5
200
> 10
< 1.5
~ 15
~ 0.5
~ 60
~ 1.5
-40 ... +90
40/ 90/ 21
230 YY O
230
YY
O
1)
2)
V
%
V
V
V
V
A
A
kA
kA
kA
A
G
pF
V
A
V
g
°C
Service life
8)
10 operations
1 operation
10 operations
1 operation
1 operation
300 operations
Insulation resistance at 100 V
DC
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, blue negative
- Nominal voltage
- Year of production
- Non radioactive
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 5
Issue 05 / 2014-01-08
Surge arrester
2-electrode arrester
B88069X1620T602
A80-A230XSMD

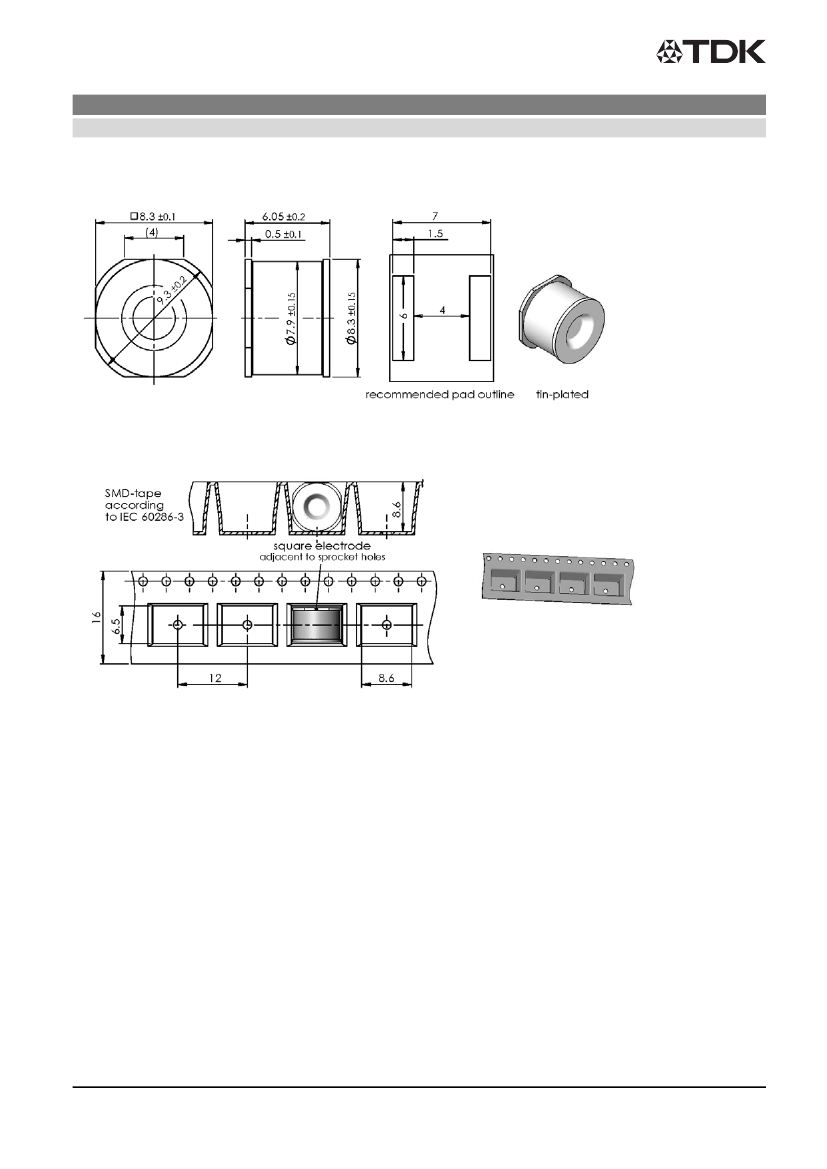

Dimensional drawing in mm
Ordering code and packing advice
B88069X1620T602 = 600 pcs. on SMD-tape
Cautions and warnings
Surge arresters must not be operated directly in power supply networks.
Surge arresters may become hot in case of longer periods of current stress (danger of burning).
If the contacts of the surge arrester are defective, current stress can lead to the formation of
sparks and loud noises.
Surge arresters may be used only within their specified values. In case of overload, the lead
contacts may fail or the component may be destroyed.
Surge arresters must be handled with care and must not be dropped.
Damaged surge arresters must not be re-used.
Display of ordering codes for EPCOS products
The ordering code for one and the same EPCOS product can be represented differently in data
sheets, data books, other publications, on the EPCOS website, or in order-related documents such as
shipping notes, order confirmations and product labels.
The varying representations of the
ordering codes are due to different processes employed and do not affect the specifications of
the respective products.
Detailed information can be found on the Internet under
www.epcos.com/orderingcodes.
PPD AB PD / PPD AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 5
Issue 05 / 2014-01-08
