SN75140D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Drivers and interfaces> SN75140D

SN75140D: DescriptionLine Receiver, 2 Func, 2 Rcvr, BIPolar, PDSO8, PLASTIC, MS-012AA, SOIC-8; CategoryDrivers and interfaces; File Size1MB，8 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

SN75140D Overview

Line Receiver, 2 Func, 2 Rcvr, BIPolar, PDSO8, PLASTIC, MS-012AA, SOIC-8

SN75140D Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	NO
Input properties	DIFFERENTIAL
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum receive delay	35 ns
Number of receiver bits	2
Maximum seat height	1.75 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

SN55140, SN55141, SN55142A, SN55143A

SN75140, SN75141, SN75142A, SN75143A

Dual Line Receivers

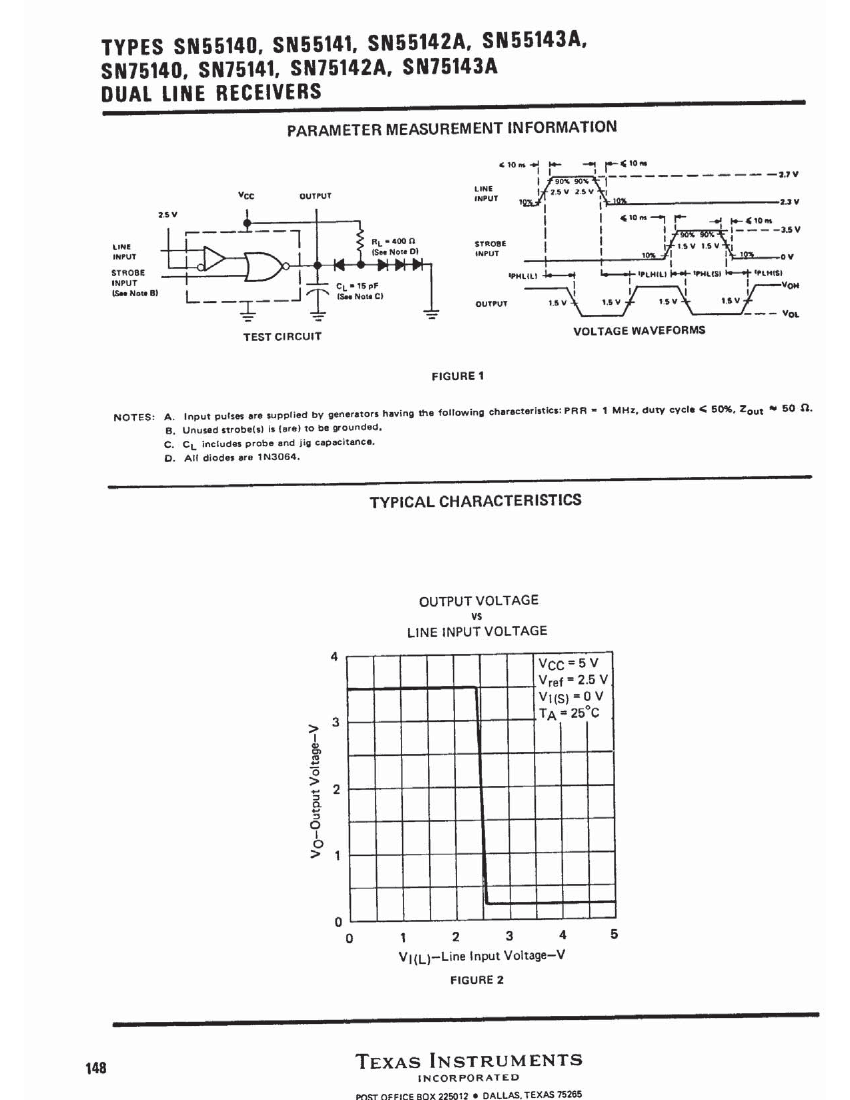

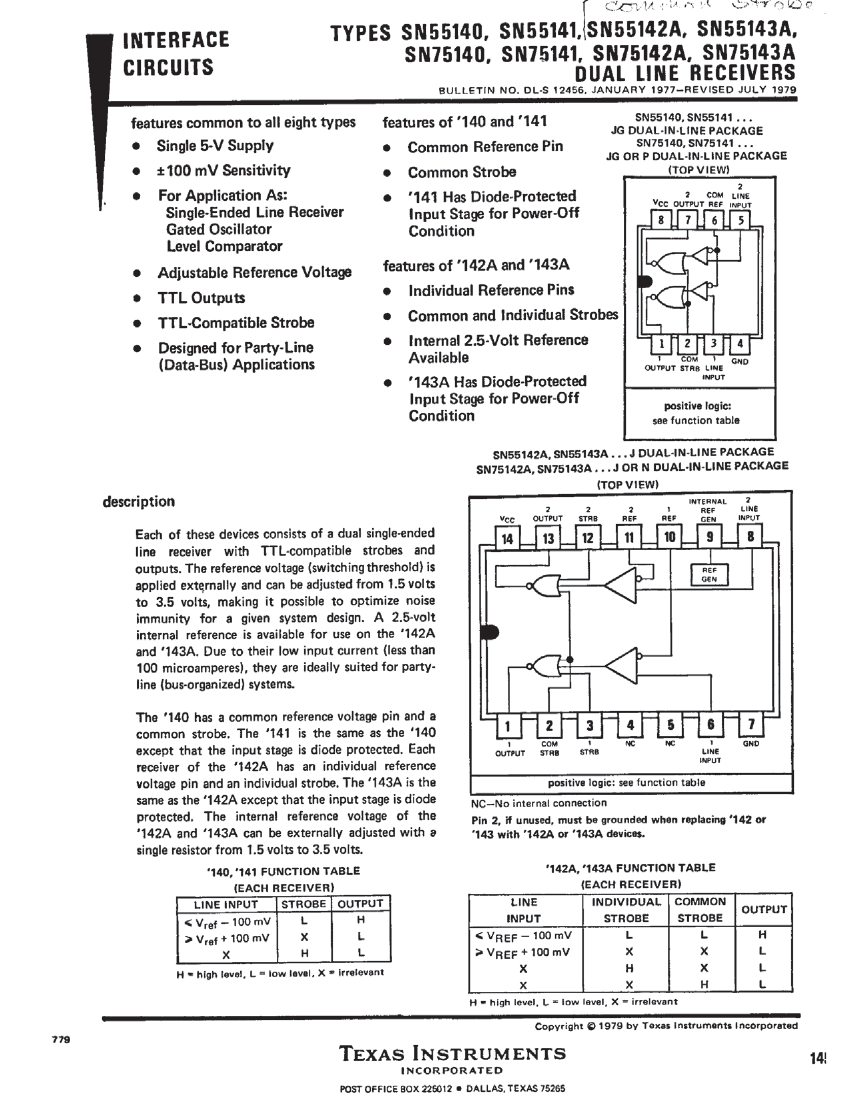

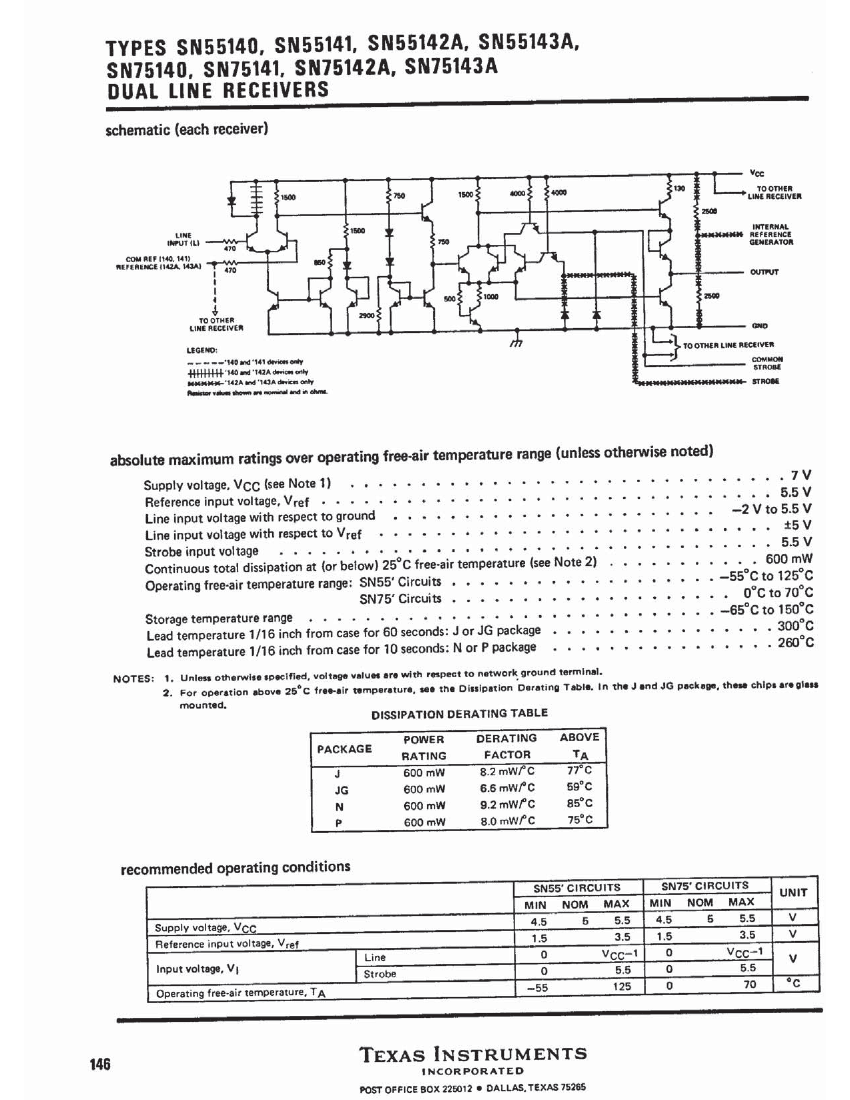

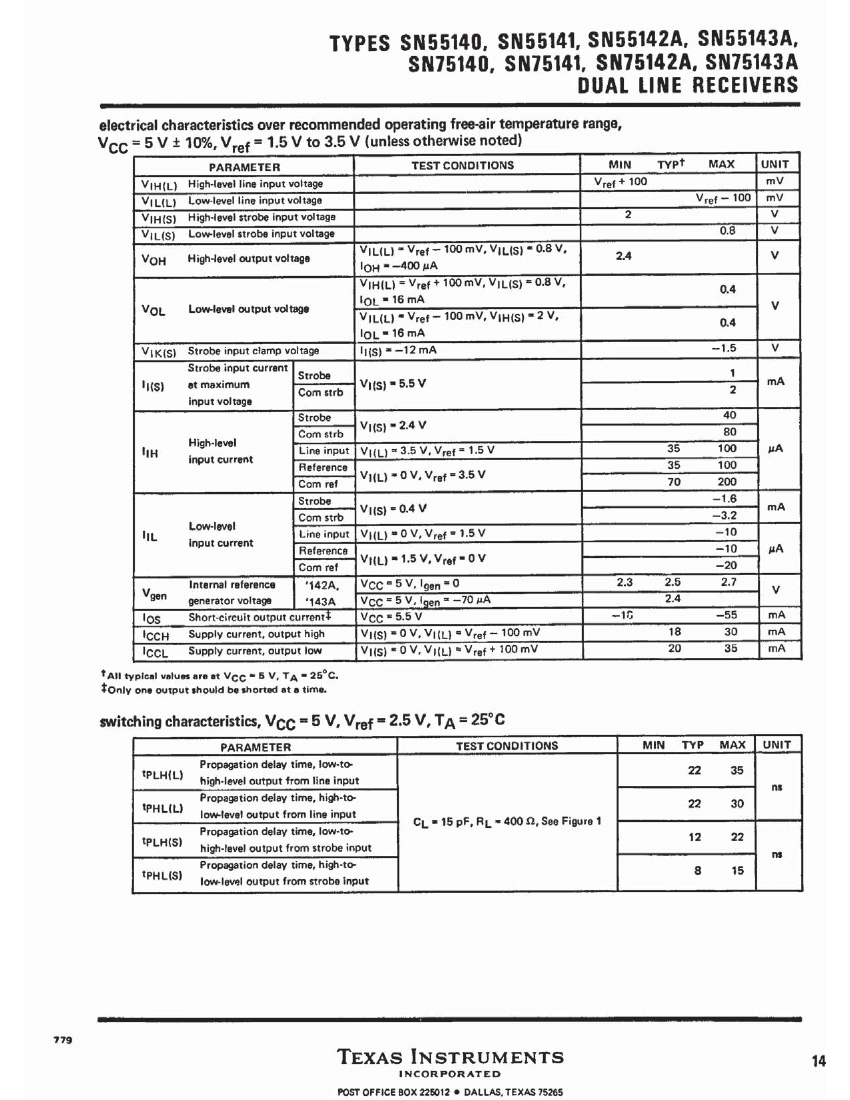

Each of these devices consists of a dual single-ended line receiver with TTL-compatible strobes and

outputs. The reference voltage (switching threshold) is applied externally and can be adjusted from

1.5 volts to 3.5 volts, making it possible to optimize noise immunity for a given system design. A 2.5-

volt internal reference is available for use on the ‘142A and ‘143A. Due to their low input current (less

than 100 microamperes), they are ideally suited for party-line (bus-organized) systems.

The ‘140 has a common reference voltage pin and a common strobe. The ‘141 is the same as the

‘140 except that the input stage is diode protected. Each receiver of the ‘142A has an individual

reference voltage pin and an individual strobe. The ‘143A is the same as the ‘142A except that

the input stage is diode protected. The internal reference voltage of the ‘142A and ‘143A can be

externally adjusted with a single resistor from 1.5 volts to 3.5 volts.
