Shielded Power Inductor – SER2000
• Designed for high current power supply applications
• Flat wire windings provide exceptionally low DCR
•
Isat
ratings as high as 100 A
Designer’s Kit C374
contains 2 each of nine parts.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.

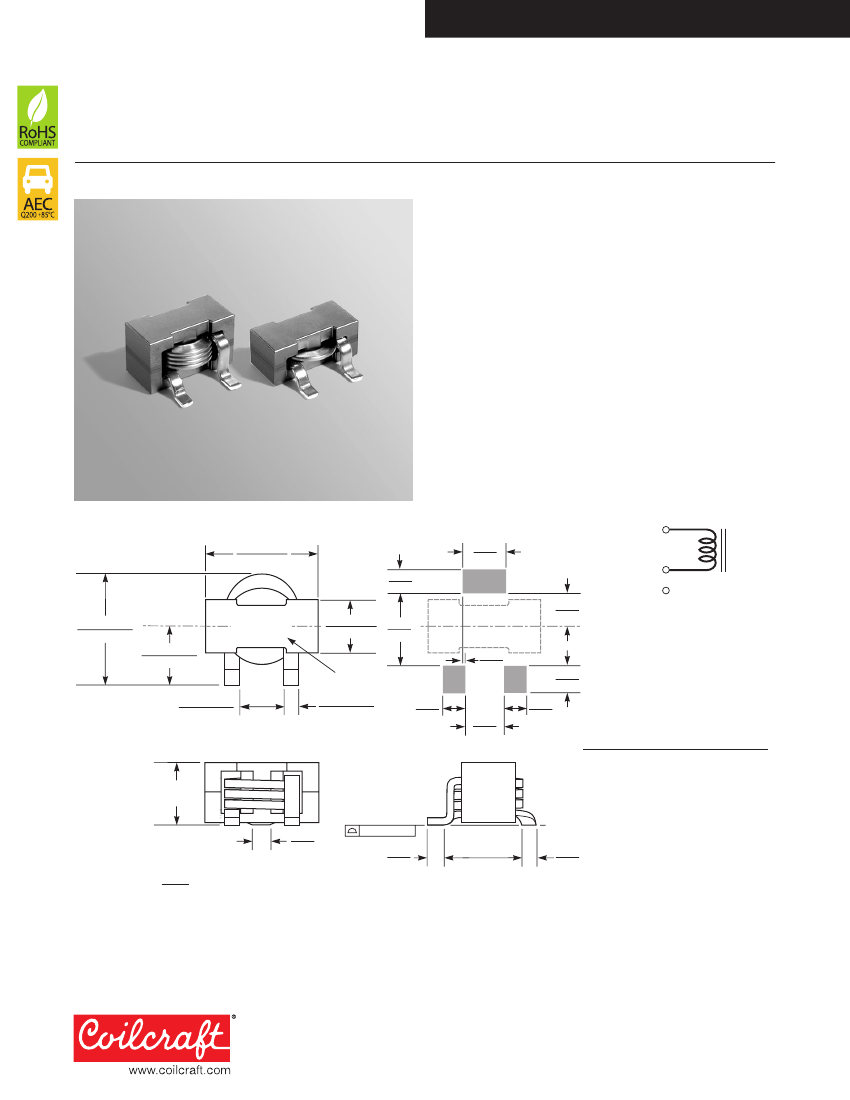

Recommended Land Pattern
0.755 ±0.02
19,18 ±0,51
0.160
4,06
0.290
7,37
3
0.210
5,33
1
2
3
C
L
0.736 ±0.034
18,70 ±0,86
C
L
SER20xx-xxxL
XXXX Y
0.365 ±0.02
9,27 ±0,51
0.470
11,94
0.015
0,38
0.412 ±0.034
10,46 ±0,86
Internal code
0.311 ±0.015
7,90 ±0,38
0.100 ±0.003
typ
2,54 ±0,076
0.150
3,81
1
2
0.150
3,81
0.185
4,70
Caution:
Terminal 3 is provided for mounting
stability only. This terminal is connected
to the winding of the inductor and must
not be connected to ground or any
circuitry.
0.260
6,60
Maximum
height
SER2009
SER2010
SER2011
SER2012
SER2013
SER2014
0.34 / 8,64
0.37 / 9,40
0.42 / 10,67
0.47 / 11,94
0.51 / 12,95
0.55 / 13,97
Weight
6.65 – 6.89 g
7.46 – 7.90 g
8.63 – 9.08 g
9.92 – 10.3 g
10.8 – 11.4 g
11.7 – 12.4 g
Height
(See table)
0.130
*
3,30
inches
Dimensions are in
mm
0.004/0,102
0.125
3,18
0.515±0.015
13,08 ±0,37
0.100
2,54
*
Width of flat area on winding
Packaging
SER2009 200 per 13″ reel;
SER2010 200 per 13″ reel;
SER2011 170 per 13″ reel;
SER2012 150 per 13″ reel;
SER2013 150 per 13″ reel;
SER2014 125 per 13″ reel;
Plastic tape: 44 mm
Plastic tape: 44 mm
Plastic tape: 44 mm
Plastic tape: 44 mm
Plastic tape: 44 mm
Plastic tape: 44 mm
wide, 0.4 mm thick, 32 mm pocket spacing, 9.25 pocket depth
wide, 0.4 mm thick, 32 mm pocket spacing, 10.5 pocket depth
wide, 0.4 mm thick, 32 mm pocket spacing, 11.6 pocket depth
wide, 0.4 mm thick, 32 mm pocket spacing, 13.0 pocket depth
wide, 0.5 mm thick, 32 mm pocket spacing, 14.0 pocket depth
wide, 0.5 mm thick, 32 mm pocket spacing, 15.0 pocket depth
Document 349-1
Revised 09/05/12
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 349-2
Shielded Power Inductors – SER2000 Series
Inductance DCR
±20%
2
max
3
1
Part number
(µH)
(m)
SER2009-301ML_ 0.30
0.740
SER2010-301ML_
0.30
1.00
SER2009-501ML_ 0.50
0.740
SER2010-501ML_ 0.50
1.00
SER2011-501ML_ 0.50
1.34
SER2009-601ML_ 0.60
0.740
SER2010-601ML_
0.60
1.00
SER2011-601ML_ 0.60
1.34
SER2012-601ML_
0.60
1.60
SER2009-681ML_ 0.68
0.740
SER2010-681ML_ 0.68
1.00
SER2011-681ML_ 0.68
1.34
SER2012-681ML_ 0.68
1.60
SER2013-681ML_ 0.68
1.82
SER2009-801ML_ 0.80
0.740
SER2010-801ML_
0.80
1.00
SER2011-801ML_ 0.80
1.34
SER2012-801ML_ 0.80
1.60
SER2013-801ML_ 0.80
1.82
SER2014-801ML_
0.80
2.15
SER2009-901ML_ 0.90
0.740
SER2010-901ML_ 0.90
1.00
SER2011-901ML_ 0.90
1.34
SER2012-901ML_ 0.90
1.60
SER2013-901ML_ 0.90
1.82
SER2014-901ML_ 0.90
2.15
SER2009-102ML_ 1.0
0.740
SER2010-102ML_
1.0
1.00
SER2011-102ML_ 1.0
1.34
SER2012-102ML_ 1.0
1.60
SER2013-102ML_ 1.0
1.82
SER2014-102ML_
1.0
2.15
SER2009-122ML_ 1.2
0.740
SER2010-122ML_ 1.2
1.00
SER2011-122ML_ 1.2
1.34
SER2012-122ML_ 1.2
1.60
SER2013-122ML_ 1.2
1.82
SER2014-122ML_ 1.2
2.15
SER2009-202ML_ 2.0
0.740
SER2010-202ML_
2.0
1.00
SER2011-202ML_ 2.0
1.34
SER2012-202ML_ 2.0
1.60
SER2013-202ML_ 2.0
1.82
SER2014-202ML_
2.0
2.15
SER2013-362ML_ 3.6
1.82
SER2013-402ML_ 4.0
1.82
SER2014-402ML_ 4.0
2.15
SER2013-472ML_ 4.7
1.82
DCR SRF
typ
3
typ
4
(m) (MHz)
0.630 550
0.900 182
0.630 544
0.900 148
1.20
161
0.630 648
0.900 115
1.20
124
1.44
115
0.630 454
0.900 136
1.20
135
1.44
103
1.70
104
0.630 567
0.900
92
1.20
113
1.44
91
1.70
93
1.94
104
0.630 557
0.900
96
1.20
104
1.44
85
1.70
98
1.94
102
0.630 488
0.900
81
1.20
97
1.44
75
1.70
98
1.94
88
0.630
81
0.900
69
1.20
81
1.44
73
1.70
82
1.94
78
0.630
40
0.900
48
1.20
56
1.44
51
1.70
61
1.94
62
1.70
38
1.70
35
1.94
36
1.70
30
Isat
5
(A)
100
100
60
81
100
49
70
90
97
45
62
78
85
98
38
53
70
75
85
98
33
48
62
69
73
87
29
42
56
64
68
70
28
37
49
54
58
63
16
27
37
35
40
45
25
20
25
18
Irms
(A)
6
20°C 40°C Height
rise rise (mm)
41
54
8,64
36
45
9,40
41
54
8,64
36
45
9,40
30
40
10,67
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
21
27
13,97
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
21
27
13,97
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
21
27
2713,97
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
21
27
13,97
41
54
8,64
36
45
9,40
30
40
10,67
25
35
11,94
23
30
12,95
21
27
13,97
23
30
12,95
23
30
12,95
21
27
13,97
23
30
12,95
1. Please specify
termination
and
packaging
codes:
SER2014-202MLD
Termination: L
= RoHS compliant tin-silver over copper.
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead
(63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481
embossed plastic tape.
B
= Less than full reel. In tape, but not
machine ready. To have a leader and
trailer added ($25 charge), use code
letter D instead.
2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an
Agilent/HP 4263B LCR meter or equivalent.
3. DCR measured on a Keithley 580 micro-ohmmeter.
4. SRF measured using an Agilent/HP 4395A network
analyzer and an Agilent/HP 16092A test fixture.
5. DC current at which the inductance drops 10% (typ)
from its value without current.
6. Current that causes the specified temperature rise from
25°C ambient. When
Irms
is greater than
Isat, Isat
is
the more critical specification, and
Irms
is shown in
gray
type.
See Temperature Rise vs Current curve below.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.

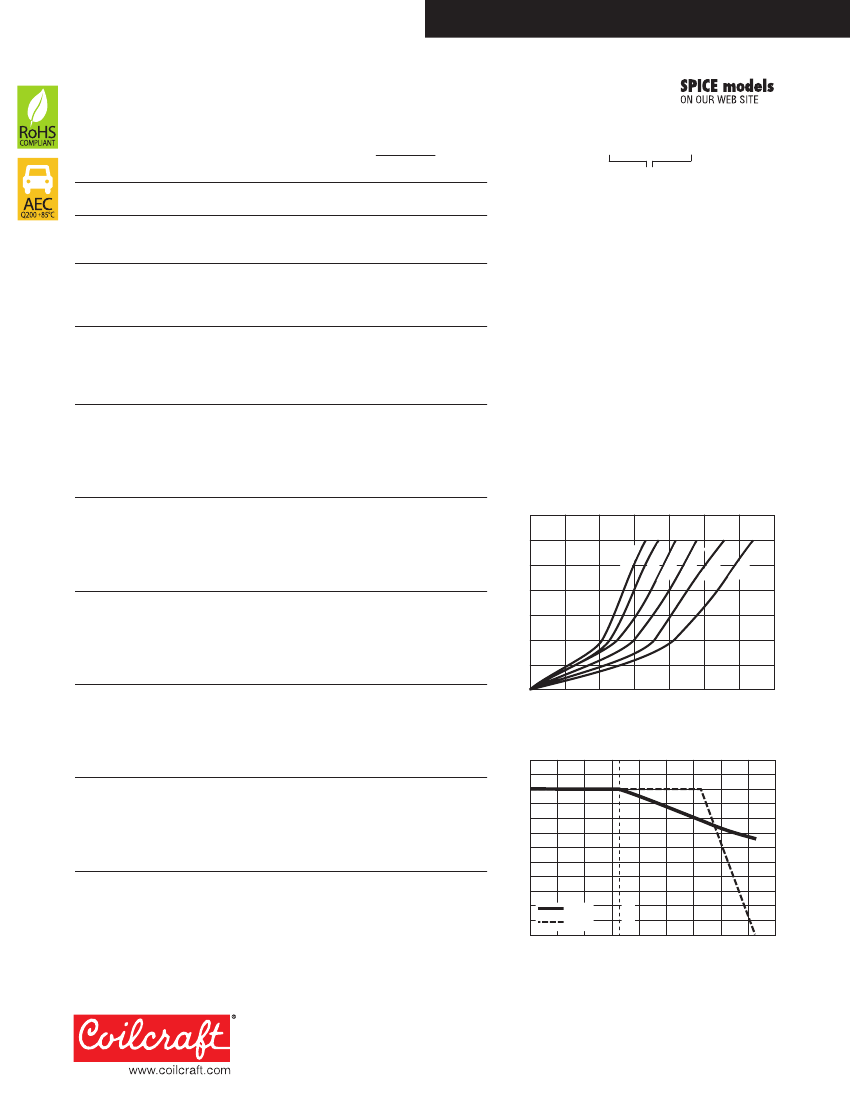

Temperature Rise vs Current
Temperature rise (from 25°C)
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
Current (A rms)
Current Derating
120
110
Percent of rated current
100
90
80
70
60
50
40
30
20
10
0
Isat
Irms
-40 -20
0
20
25°C
40
Parts shown in bold are included in Coilcraft Designer’s Kit C374.
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 349-2
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
SE
R2
014
SE
R2
013
SE
R2
012
SE
R2
01
1
SE
R2
01
0
SE
R2
00
9
60
80
100
120 140
Revised 09/05/12
Document 349-3
Shielded Power Inductors – SER2000 Series

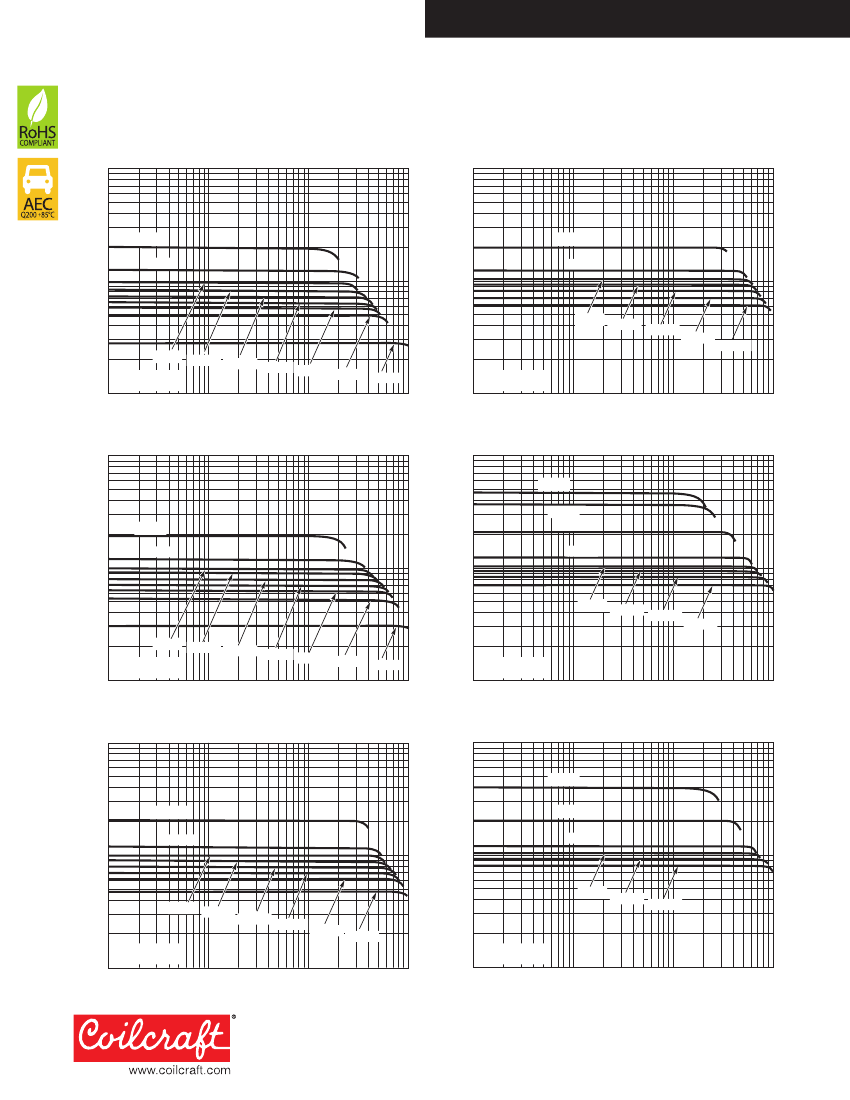

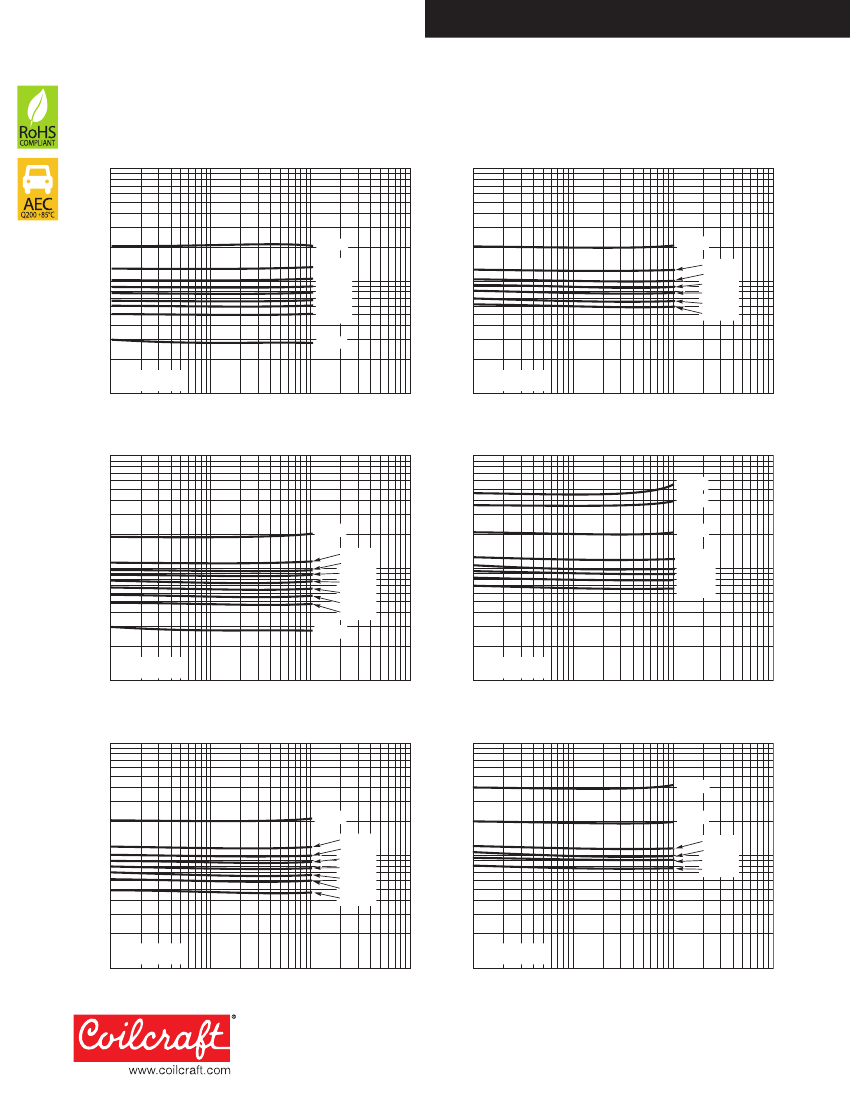

L vs Frequency
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
Inductance (µH)
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
0.1
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
0.68 µH
0.6 µH
0.5 µH
0.3 µH
2.0
1.0
0.8
0.6
0.4
0.2
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
0.68 µH
0.6 µH
SER2009
0.1
1
10
100
0.1
SER2012
0.1
1
10
100
Frequency (MHz)
Frequency (MHz)
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
0.68 µH
0.6 µH
0.5 µH
0.3 µH
4.7 µH
3.6 µH
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
0.68 µH
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
0.1
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
SER2010
0.1
1
10
100
0.1
SER2013
0.1
1
10
100
Frequency (MHz)
Frequency (MHz)
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
0.68 µH
0.6 µH
0.5 µH
4.0 µH
2.0 µH
1.2 µH
1.0 µH
0.9 µH
0.8 µH
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
0.1
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
SER2011
0.1
1
10
100
0.1
SER2014
0.1
1
10
100
Frequency (MHz)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Frequency (MHz)
Document 349-2
Revised 09/05/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 349-4
Shielded Power Inductors – SER2000 Series
L vs Current
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
0.1
Inductance (µH)
2.0 µH
1.2 µH
2.0
1.0
0.8
0.6
0.4
0.2
0.1
2.0 µH
1.2 µH
1.0 µH
0.90 µH
0.80 µH
0.68 µH
1.0 µH 0.90 µH
0.80 µH 0.68 µH
0.60 µH 0.50 µH
0.30 µH
SER2009
0.1
1
10
100
0.60 µH
SER2012
0.1
1
10
100
Current (A)
Current (A)
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
4.7 µH
3.6 µH
2.0 µH
1.2 µH
Inductance (µH)
Inductance (µH)
2.0
1.0
0.8
0.6
0.4
0.2
0.1
2.0 µH
1.2 µH
2.0
1.0
0.8
0.6
0.4
0.2
0.1
1.0 µH
0.90 µH
0.80 µH
0.68 µH
1.0 µH 0.90 µH
0.80 µH 0.68 µH
0.60 µH 0.50 µH
0.30 µH
SER2010
0.1
1
10
100
SER2013
0.1
1
10
100
Current (A)
Current (A)
10.0
8.0
6.0
4.0
10.0
8.0
6.0
4.0
4.0 µH
2.0 µH
1.2 µH
1.0
0.8
0.6
0.4
0.2
0.1
1.0 µH
0.90 µH
0.80 µH
Inductance (µH)
Inductance (µH)
0.80 µH
0.68 µH
0.60 µH
0.50 µH
2.0
1.0
0.8
0.6
0.4
0.2
0.1
2.0 µH
1.2 µH
2.0
1.0 µH 0.90 µH
SER2011
0.1
1
10
100
SER2014
0.1
1
10
100
Current (A)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Current (A)
Document 349-2
Revised 09/05/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
京公网安备 11010802033920号
EEWORLD
