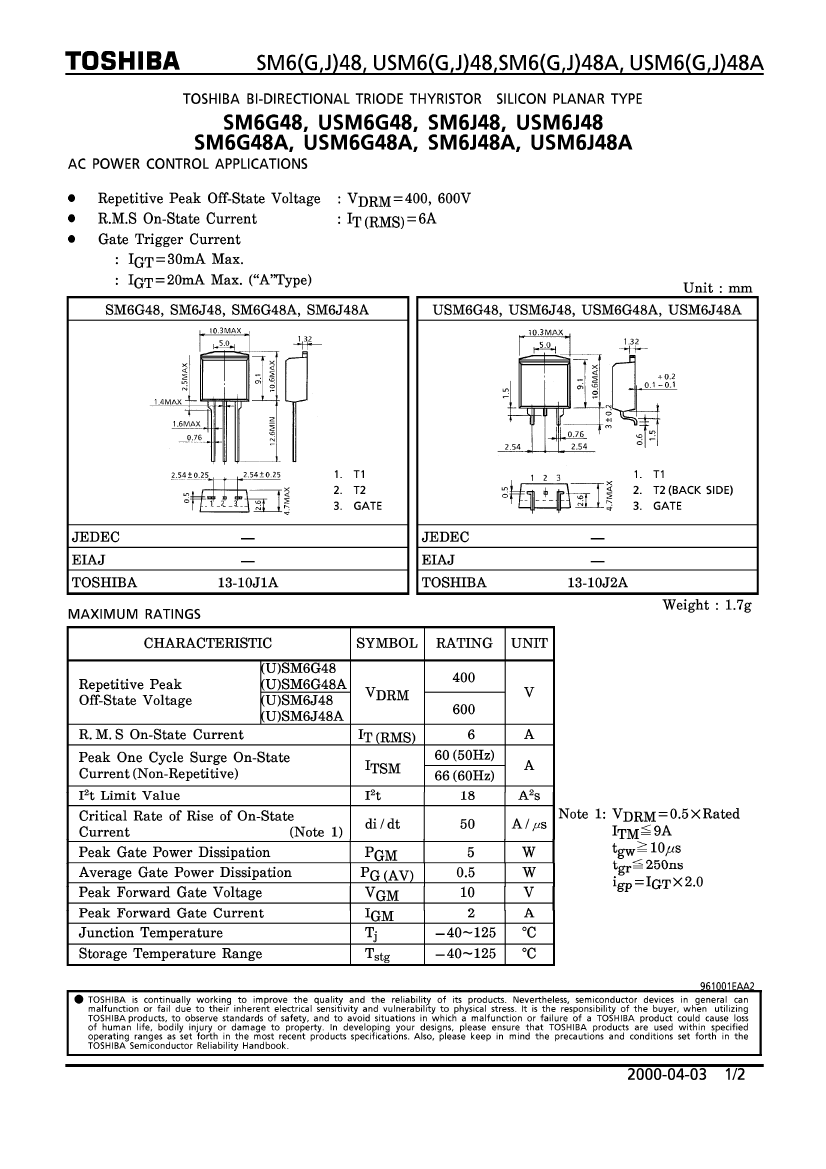

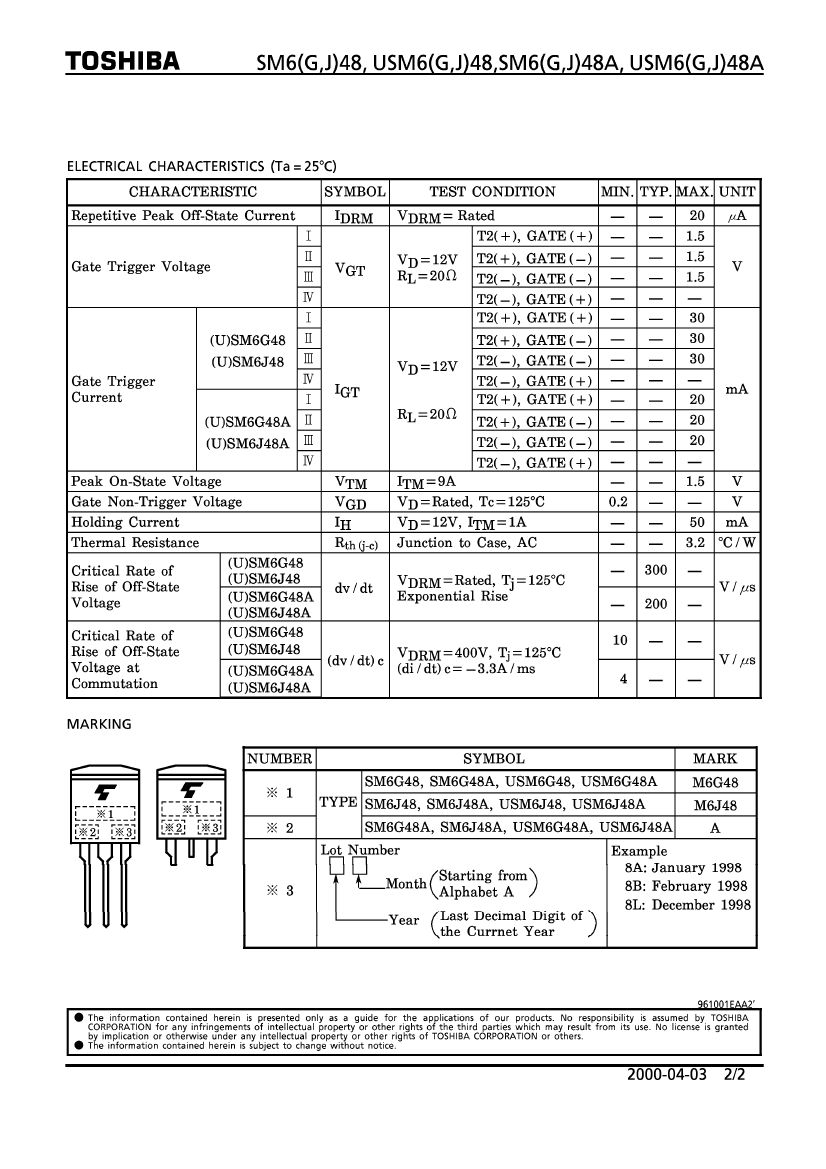

SM6G48: DescriptionAC POWER CONTROL APPLICATIONS; CategoryAnalog mixed-signal IC Trigger device; File Size133KB，2 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

SM6G48 Overview

AC POWER CONTROL APPLICATIONS

SM6G48 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TO-220FL
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknow
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	50 mA
JESD-30 code	R-PSIP-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	6 A
Maximum repetitive peak off-state leakage current	20 µA
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

SM6G48 Related Products

	SM6G48	SM6G48A	USM6G48A	USM6G48	USM6J48A	USM6J48	SM6J48A	SM6J48
Description	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS	AC POWER CONTROL APPLICATIONS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TO-220FL	TO-220FL	TO-220SM	TO-220SM	TO-220SM	TO-220SM	TO-220FL	TO-220FL
package instruction	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G3	SMALL OUTLINE, R-PSSO-G3	SMALL OUTLINE, R-PSSO-G3	SMALL OUTLINE, R-PSSO-G3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of commutation voltage - minimum value	10 V/us	4 V/us	4 V/us	10 V/us	4 V/us	10 V/us	4 V/us	10 V/us
Maximum DC gate trigger current	30 mA	20 mA	20 mA	30 mA	20 mA	30 mA	20 mA	30 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA	50 mA
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3	R-PSSO-G3	R-PSIP-T3	R-PSIP-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	6 A	6 A	6 A	6 A	6 A	6 A	6 A	6 A
Maximum repetitive peak off-state leakage current	20 µA	20 µA	20 µA	20 µA	20 µA	20 µA	20 µA	20 µA
Off-state repetitive peak voltage	400 V	400 V	400 V	400 V	600 V	600 V	600 V	600 V
surface mount	NO	NO	YES	YES	YES	YES	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
Is it lead-free?	-	Contains lead	Contains lead	-	-	Contains lead	Contains lead	Contains lead
