S1
1
I
1.0625-.1P-.2L-DS-2A
Seal
Removable
insert cap
2X Alignment
Sleeve
Terminus
Retainer
Plate
Jam Nut
Mating Plane
2X Screw
3/32" Hex
Detail A
1.145
1.140
Material and Finish
Ø 1.200
1.190
External hardware: See Table I
Insert Cap: Al alloy/anodize
Misc. hardware: Stainless steel/passivate
Lanyard: Stainless steel/coated
Seals: See Table V
Panel Cut-out
As viewed from
front of panel
Notes
Connector assembly is designed IAW the interface requirements of MIL-PRF-83526/17 (Draft).
Standard configuration is shown in sample part number.
U.S. CAGE Code 06324
Printed in U.S.A.
© 2012 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
I-10
1
GFOCA
Fiber Optic System
180-148

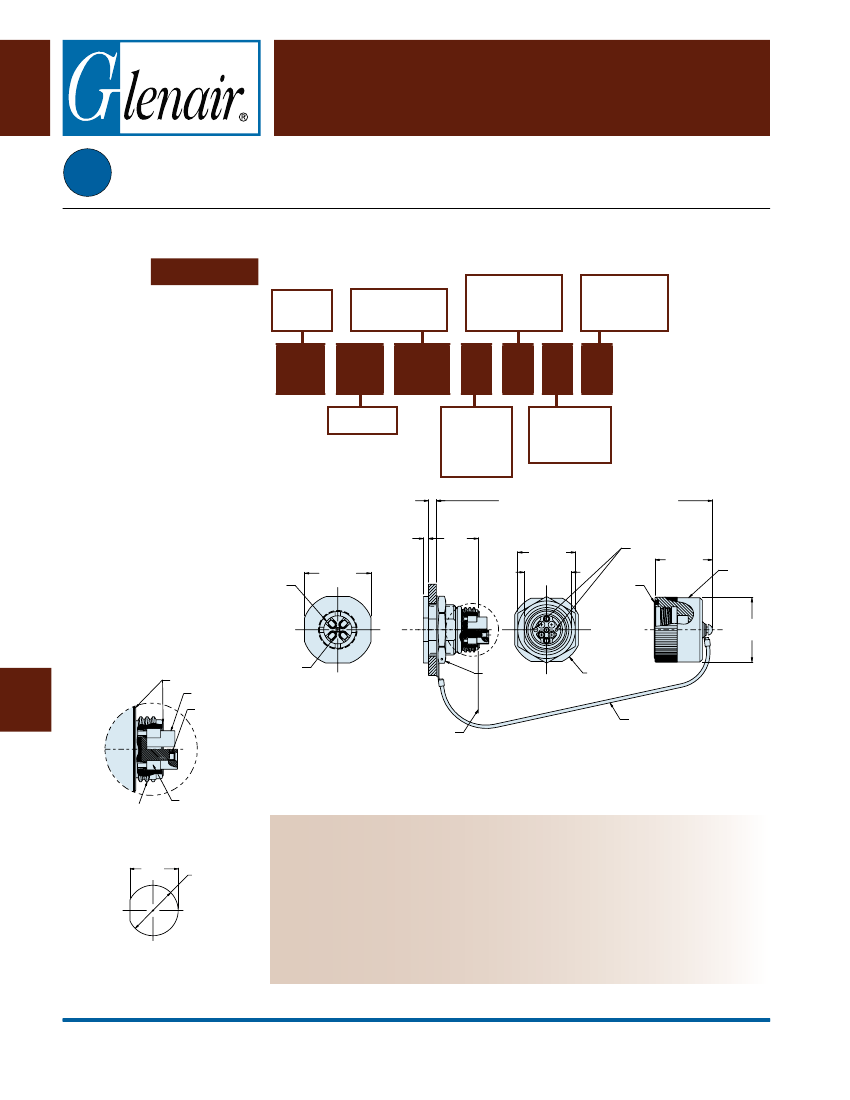

GFOCA Internal Mount Jam Nut Receptacle
MIL-DTL-83526 Type, 4 Channel
GFOCA
MIL-DTL-83526 type hermaphroditic GFOCA internal mount jam nut receptacle
How To Order
Product
Series
Material/Finish
(Table I)
Insert Cap Key
Dash No.
(Table III)
Seal Material
(Table V)
(See notes)
180
-
148
Basic No.
ZR
-
N
Alignment
Sleeve
Style
(Table II)
1
F
1
Dust Cover
Style
(Table IV)
.250 Panel
.050 Thk
.120
1.587 Max
Flats
1.200
Max
1.850 Max (when dust cover is installed)
Retainer Nut
1.375 Max
Hex
1.134 Max
Flat
Alignment Pin
1.390
Max
Seal
Dust
Cover
P1
P2
S2
Ø1.555
Max
Ø1.681 Max
Lanyard with Ring
Attachment
E-Mail: sales@glenair.com
180-148
GFOCA Internal Mount Jam Nut Receptacle
MIL-DTL-83526 Type, 4 Channel

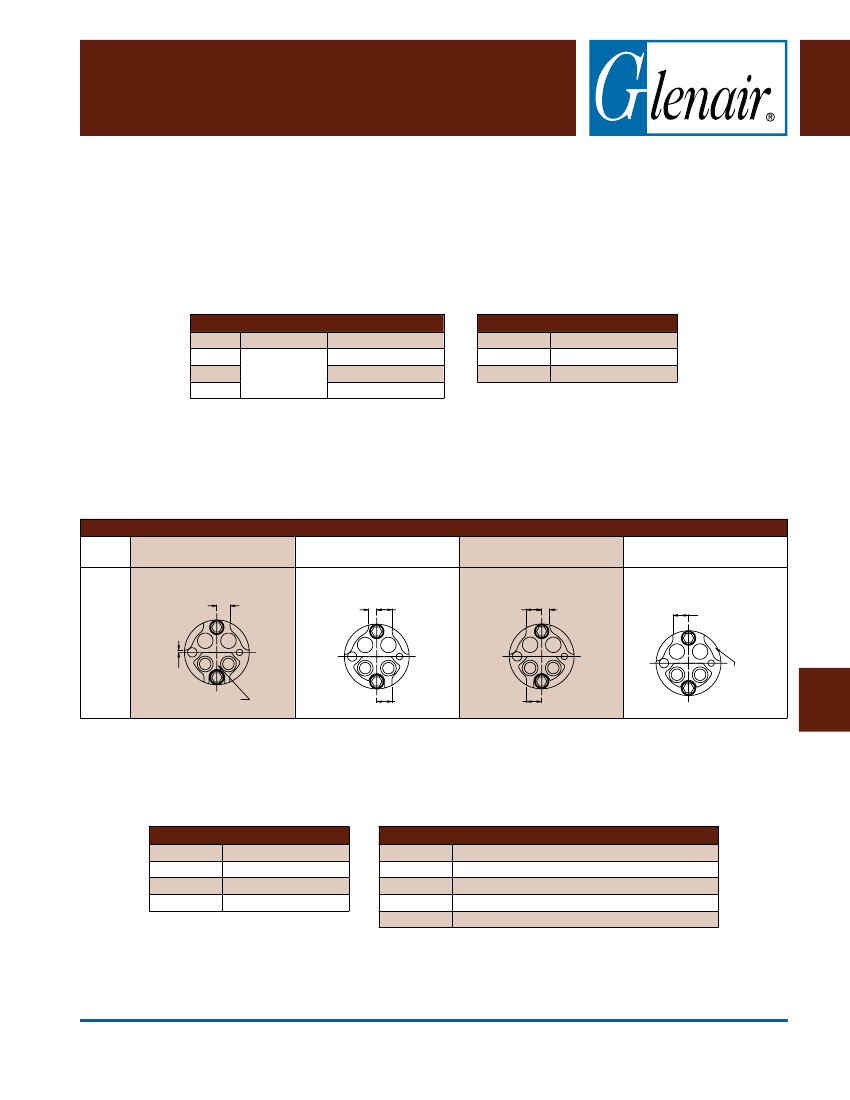

Table I: Material/Finish
Code
G2
ZN
ZR
Material
Aluminum alloy
Finish Description
Hard anodize, gray
Zinc-nickel, olive drab
Zinc-nickel, black
Table II: Alignment Sleeve Style
Code.
C
N
Style
Captive Split
None
Refer to Appendix for material/finish details
Table III: Insert Cap Key Configurations
Dash
No:
Config.
1
Key 1
.139 .137
2X
P1
S1 S2
P2
2
Key 2
.084
.082
P1
S1 S2
3
Key 3
.162
.160
P2
4
Key U (universal)
.084
.082
P2
P1
P2
S1 S2
.162
.160
P1
S1 S2
.162
.160
2 TIMES
.043
.002
TYP
1
2
3
U
4X CAVITY
MARKING
Key Polarization
Marking
.159
.157
.159
.157
Table IV: Dust Cover Style
Code
F
H
N
Style
Female
Hermaphroditic
None
Dash No.
1
2
3
4
Table V: Seal Material
Seal material(s)
Fluorosilicone / Fluorosilicone panel seal
Fluorosilicone / Conductive fluorosilicone panel seal
EPDM / EPDM panel seal
EPDM / Conductive EPDM panel seal
