Mini, 7/8”-Round-Plug Connector, Single-Ended Cordsets,
US Color Code
RS 201...601A | RK 20...60A
2-, 3-, 4-, 5-, and 6-Poles

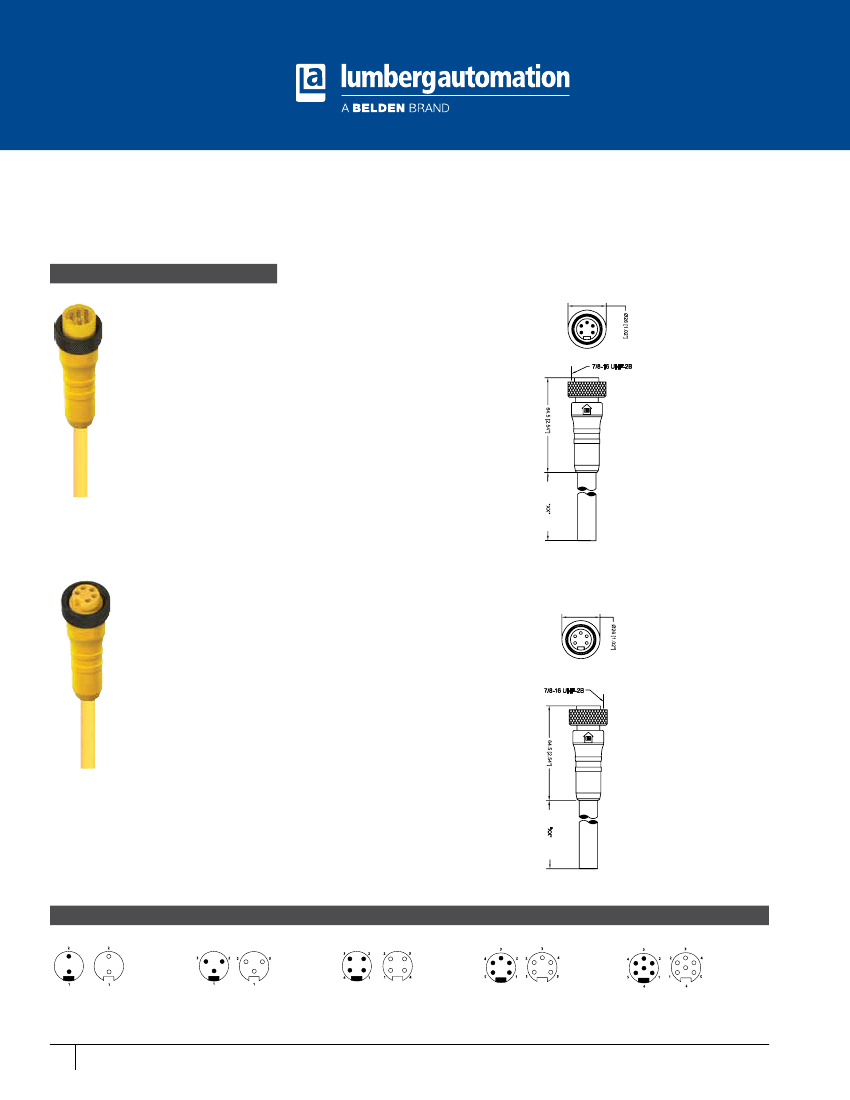

Mini, 7/8” single-ended cordsets, male straight,
2-, 3-, 4-, 5-, and 6-poles with internal threads
and molded cable, US color code.
RS
Mini, 7/8” single-ended cordsets, female
straight, 2-, 3-, 4-, 5-, and 6-poles with internal
threads and molded cable, US color code.
RK
Pin Assignments
Mini, 7/8” - Male / Female
2 poles
1=
2=
white
black
3 poles
1=
2=
3=
green
black
white
4 poles
1=
2=
3=
4=
black
white
red
green
5 poles
1=
2=
3=
4=
5=
white
red
green
orange
black
6 poles
1=
2=
3=
4=
5=
6=
white
red
green
orange
black
blue
134
Technical Support:
1-717-217-2289
www.lumberg-automationusa.com
Cordsets
Single-Ended
Be Certain with Belden
Mini, 7/8”-Round-Plug Connector, Single-Ended Cordsets, US Color Code
RS 201...601A | RK 20...60A
Technical Data
Environmental
Degree of protection
Operating temperature range
Mechanical
Housing / Molded body
Insert
Contact
Coupling nut
Electrical
Current rating
IP 67 / NEMA 6P
-40°C (-40°F) / +90°C (194°F)
Cordsets
Single-Ended
TPU, yellow
TPU, yellow
CuZn, gold over silver plated
Aluminum, anodized black
2 pole: 12 A
3-5 pole: 8 A
6 pole: 5A
600 V
Voltage rating
Cable Specifications - US Color Code
Cable No.
619
678
697
738
739
777
839
877
Outer Jacket
CPE
PVC
PVC
TPE
TPE
TPE
TPE
TPE
Gauge
18AWG
16AWG
18AWG
16AWG
16AWG
16AWG
16AWG
16AWG
Jacket
Color
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
Yellow
OD
.370” (9.4 mm)
.375” (9.5 mm)
.502” (12.8 mm)
.390” (9.9 mm)
.415” (10.5 mm)
.495” (12.6 mm)
.342” (8.7 mm)
.371” (9.4 mm)
Temperature Rating
-40°C (-40°F) to +90°C (194°F)
-40°C (-40°F) to +105°C (221°F)
-40°C (-40°F) to +105°C (221°F)
-50°C (-58°F) to +105°C (221°F))
-50°C (-58°F) to +105°C (221°F)
-50°C (-58°F) to +105°C (221°F)
-30°C (-22°F) to +90°C (194°F)
-30°C (-22°F) to +90°C (194°F)
Agency Approvals
UL: SOOW / CSA: SOW
UL: STOW / CSA: STO
UL: STOW / CSA: STOO
UL: SEOOW / CSA: STOOW
UL: SEOOW / CSA: STOOW
UL: SEOOW / CSA: STOOW
UL: TC-ER
UL: TC-ER
Part Number
RS 201-678/...F
RS 301-619/...F
RS 301-738/...F
RS 401-739/...F
RS 401-839/...M
RS 501-777/...F
RS 501-877/...M
RS 601A-697/...F
RK 20-678/...F
RK 30-619/...F
RK 30-738/...F
RK 40-739/...F
RK 40-839/...M
RK 50-777/...F
RK 50-877/...M
RK 60A-697/...F
Pins
2
3
3
4
4
5
5
6
Outer Jacket Standard Cable Lengths
PVC
CPE
TPE
TPE
TPE
TPE
TPE
PVC
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
6 F / 12 F / 15 F / 20 F / 30 F
1 M / 2 M / 3 M / 5 M / 10 M / 20 M
6 F / 12 F / 15 F / 20 F / 30 F
1 M / 2 M / 3 M / 5 M / 10 M / 20 M
6 F / 12 F / 15 F / 20 F / 30 F
Characteristics
www.lumberg-automationusa.com
Technical Support:
1-717-217-2289
135
