Ultra Series
™
Crystal Oscillator
Si545 Data Sheet
Ultra Low Jitter Any-Frequency XO (80 fs), 0.2 to 1500 MHz
KEY FEATURES
The Si545 Ultra Series
™
oscillator utilizes Silicon Laboratories’ advanced 4
th
genera-
tion DSPLL
®
technology to provide an ultra-low jitter, low phase noise clock at any
output frequency. The device is factory-programmed to any frequency from 0.2 to
1500 MHz with <1 ppb resolution and maintains exceptionally low jitter for both inte-
ger and fractional frequencies across its operating range. The Si545 offers excellent
reliability and frequency stability as well as guaranteed aging performance. On-chip
power supply filtering provides industry-leading power supply noise rejection, simplify-
ing the task of generating low jitter clocks in noisy systems that use switched-mode
power supplies. Offered in industry-standard 3.2x5 mm and 5x7 mm footprints, the
Si545 has a dramatically simplified supply chain that enables Silicon Labs to ship cus-
tom frequency samples 1-2 weeks after receipt of order. Unlike a traditional XO,
where a different crystal is required for each output frequency, the Si545 uses one
simple crystal and a DSPLL IC-based approach to provide the desired output frequen-
cy. This process also guarantees 100% electrical testing of every device. The Si545 is
factory-configurable for a wide variety of user specifications, including frequency, out-
put format, and OE pin location/polarity. Specific configurations are factory-program-
med at time of shipment, eliminating the long lead times associated with custom oscil-
lators.
Pin Assignments
• Available with any frequency from 0.2
MHz to 1500 MHz
• Ultra low jitter: 80 fs Typ RMS
(12 kHz – 20 MHz)
• Excellent PSRR and supply noise
immunity: –80 dBc Typ
• 10 ppm stability option (–40 to 85 °C)
• 3.3 V, 2.5 V and 1.8 V V
DD
supply
operation from the same part number
• LVPECL, LVDS, CML, HCSL, CMOS,
and Dual CMOS output options
• 3.2×5, 5x7 mm package footprints
• Samples available with 1-2 week lead
times
APPLICATIONS
• 100G/200G/400G OTN, coherent optics
• 10G/40G/100G optical ethernet
• 3G-SDI/12G-SDI/24G-SDI broadcast
video
• Datacenter
• Test and measurement
• Clock and data recovery
• FPGA/ASIC clocking
OE/NC
1
2
3
(Top View)
6
5
4
VDD
CLK-
CLK+
NC/OE
GND
Pin #
1, 2
3
4
5
6
Descriptions
Selectable via ordering option
OE = Output enable; NC = No connect
GND = Ground
CLK+ = Clock output
NVM
Fixed
Frequency
Crystal
Frequency
Flexible
DSPLL
DCO
Low
Noise
Driver
OSC
Digital
Phase
Detector
Phase Error
Cancellation
Phase Error
Fractional
Divider
Digital
Loop
Filter
Flexible
Formats,
1.8V – 3.3V
Operation
CLK- = Complementary clock output. Not used for CMOS.
VDD = Power supply
Control
Power Supply Regulation
Output Enable
(Pin Control)
Built-in Power Supply
Noise Rejection
silabs.com
| Building a more connected world.
Rev. 0.75
Si545 Data Sheet
Ordering Guide
1. Ordering Guide
The Si545 XO supports a variety of options including frequency, output format, and OE pin location/polarity, as shown in the chart
below. Specific device configurations are programmed into the part at time of shipment, and samples are available in 1-2 weeks. Silicon
Laboratories provides an online part number configuration utility to simplify this process. Refer to
www.silabs.com/oscillators
to access
this tool and for further ordering instructions.
XO Series
545
Description
Single Frequency
A
B
Temp Stability
Total Stability
2
Package
A
B
5x7 mm
3.2x5 mm
G
Temperature Grade
-40 to 85 °C
±
20 ppm
±
10 ppm
±
50 ppm
±
25 ppm
545
Signal Format
LVPECL
LVDS
CMOS
CML
HCSL
Dual CMOS
(In-Phase)
Dual CMOS
(Complementary)
Custom
1
VDD Range
2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
1.8, 2.5, 3.3 V
A
Order
Option
A
B
C
D
E
F
G
X
A
A
-
-
-
-
-
-
-
A
B
G
R
Device Revision
OE Pin
A
B
C
D
Pin 1
Pin 1
Pin 2
Pin 2
OE Polarity
Active High
Active Low
Active High
Active Low
R
<Blank>
Reel
Tape and Reel
Coil Tape
Frequency Code
3
Description
Mxxxxxx
F
CLK
< 1 MHz
xMxxxxx
1 MHz ≤ F
CLK
< 10 MHz
xxMxxxx
10 MHz ≤ F
CLK
< 100 MHz
xxxMxxx
100 MHz ≤ F
CLK
< 1000 MHz
1000 MHz ≤ F
CLK
≤ 1500 MHz
xxxxMxx
xxxxxx
Custom code if F
CLK
> 6 digits
Notes:
1. Contact Silicon Labs for non-standard configurations.
2. Total stability includes temp stability, initial accuracy, load pulling, VDD variation, and 20 year aging at 70 °C.
3. For example: 156.25 MHz = 156M250; 25 MHz = 25M0000. Create custom part numbers at
www.silabs.com/oscillators.
1.1 Technical Support
Frequently Asked Questions (FAQ)
Oscillator Phase Noise Lookup Utility
Quality and Reliability
Development Kits
www.silabs.com/Si545-FAQ
www.silabs.com/oscillator-phase-noise-lookup
www.silabs.com/quality
www.silabs.com/oscillator-tools
silabs.com
| Building a more connected world.
Rev. 0.75 | 2
Si545 Data Sheet
Electrical Specifications
2. Electrical Specifications
Table 2.1. Electrical Specifications
V
DD
= 1.8 V, 2.5 or 3.3 V ± 5%, T
A
= –40 to 85 ºC
Parameter
Temperature Range
Frequency Range
Symbol
T
A
F
CLK
LVPECL, LVDS, CML
HCSL
CMOS, Dual CMOS
Supply Voltage
V
DD
3.3 V
2.5 V
1.8 V
Supply Current
I
DD
LVPECL (output enabled)
LVDS/CML (output enabled)
HCSL (output enabled)
CMOS (output enabled)
Dual CMOS (output enabled)
Tristate Hi-Z (output disabled)
Temperature Stability
Frequency stability Grade A
Frequency stability Grade B
Total Stability
1
F
STAB
Frequency stability Grade A
Frequency stability Grade B
Rise/Fall Time
(20% to 80% V
PP
)
T
R
/T
F
LVPECL/LVDS/CML
CMOS / Dual CMOS, (C
L
= 5 pF)
HCSL, F
CLK
>50 MHz
Duty Cycle
Output Enable (OE)
2
D
C
V
IH
V
IL
T
D
T
E
Powerup Time
LVPECL Output Option
3
t
OSC
V
OC
V
O
LVDS Output Option
4
V
OC
Output Disable Time, F
CLK
> 10 MHz
Output Enable Time, F
CLK
> 10 MHz
Time from 0.9 × V
DD
until output fre-
quency (F
CLK
) within spec
Mid-level
Swing (diff)
Mid-level (2.5 V, 3.3 V VDD)
Mid-level (1.8 V VDD)
V
O
Swing (diff)
All formats
Test Condition/Comment
Min
–40
0.2
0.2
0.2
3.135
2.375
1.71
—
—
—
—
—
—
–20
–10
–50
–25
—
—
—
45
0.7 × V
DD
—
—
—
—
V
DD
– 1.42
1.1
1.125
0.8
0.5
Typ
—
—
—
—
3.3
2.5
1.8
107
83
86
87
92
73
—
—
—
—
—
0.5
—
—
—
—
—
—
—
—
—
1.20
0.9
0.7
Max
85
1500
400
250
3.465
2.625
1.89
153
121
126
127
141
112
20
10
50
25
350
1.5
550
55
—
0.3 × V
DD
3
20
10
V
DD
– 1.25
1.9
1.275
1.0
0.9
Unit
ºC
MHz
MHz
MHz
V
V
V
mA
mA
mA
mA
mA
mA
ppm
ppm
ppm
ppm
ps
ns
ps
%
V
V
µs
µs
ms
V
V
PP
V
V
V
PP
silabs.com
| Building a more connected world.
Rev. 0.75 | 3
Si545 Data Sheet
Electrical Specifications
Parameter
HCSL Output Option
5
Symbol
V
OH
V
OL
V
C
CML Output Option
(AC-Coupled)
CMOS Output Option
V
O
V
OH
V
OL
Test Condition/Comment
Output voltage high
Output voltage low
Crossing voltage
Swing (diff)
I
OH
= 8/6/4 mA for 3.3/2.5/1.8 V VDD
I
OL
= 8/6/4 mA for 3.3/2.5/1.8 V VDD
Min
660
–150
250
0.6
0.85 × V
DD
—
Typ
750
0
350
0.8
—
—
Max
850
150
550
1.0
—
0.15 × V
DD
Unit
mV
mV
mV
V
PP
V
V
Notes:
1. Total Stability includes temperature stability, initial accuracy, load pulling, VDD variation, and aging for 20 yrs at 70 ºC.
2. OE includes a 50 kΩ pull-up to VDD for OE active high. Includes a 50 kΩ pull-down to GND for OE active low.
3. 50 Ω to V
DD
– 2.0 V.
4. R
term
= 100 Ω (differential).
5. 50 Ω to GND.
Table 2.2. Clock Output Phase Jitter and PSRR
V
DD
= 1.8 V, 2.5 or 3.3 V ± 5%, T
A
= –40 to 85 ºC
Parameter
Phase Jitter (RMS, 12kHz - 20MHz)
1
3.2 x 5 mm, All Differential Formats
Symbol
ϕ
J
Test Condition/Comment
F
CLK
≥ 200 MHz
100 MHz ≤ F
CLK
< 200 MHz
LVPECL @ 156.25 MHz
Phase Jitter (RMS, 12kHz - 20MHz)
1
5 x 7 mm, All Differential Formats
F
CLK
≥ 200 MHz
100 MHz ≤ F
CLK
< 200 MHz
LVPECL @ 156.25 MHz
Phase Jitter (RMS, 12kHz - 20MHz)
1
CMOS / Dual CMOS Formats
Spurs Induced by External Power Supply
Noise, 50 mVpp Ripple. LVDS 156.25 MHz
Output
ϕ
J
PSRR
10 MHz ≤ F
CLK
≤ 250 MHz
100 kHz sine wave
200 kHz sine wave
500 kHz sine wave
1 MHz sine wave
Note:
1. Guaranteed by characterization. Jitter inclusive of any spurs.
Min
—
—
—
—
—
—
—
—
—
—
—
Typ
80
100
90
80
100
90
200
-83
-83
-82
-85
Max
110
150
125
130
150
125
—
—
—
—
—
dBc
Unit
fs
fs
fs
fs
fs
fs
fs
silabs.com
| Building a more connected world.
Rev. 0.75 | 4
Si545 Data Sheet
Electrical Specifications
Table 2.3. 3.2 x 5 mm Clock Output Phase Noise (Typical)
Offset Frequency (f)
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
20 MHz
Offset Frequency (f)
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
20 MHz
156.25 MHz LVDS
–106
–133
–140
–145
–152
–160
–161
156.25 MHz
LVPECL
–103
–130
–140
–145
–152
–162
–163
200 MHz LVDS
–102
–129
–138
–142
–150
–160
–161
200 MHz
LVPECL
–104
–128
–138
–142
–150
–162
–163
644.53125 MHz LVDS
–92
–119
–127
–132
–139
–154
–155
644.53125 MHz
LVPECL
–91
–118
–127
–132
–140
–155
–156
dBc/Hz
Unit
dBc/Hz
Unit
Phase jitter measured with Agilent E5052 using a differential-to-single ended converter (balun or buffer). Measurements collected for
>700 commonly used frequencies. Phase noise plots for specific frequencies are available using our free, online Oscillator Phase Noise
Lookup Tool at
www.silabs.com/oscillators.

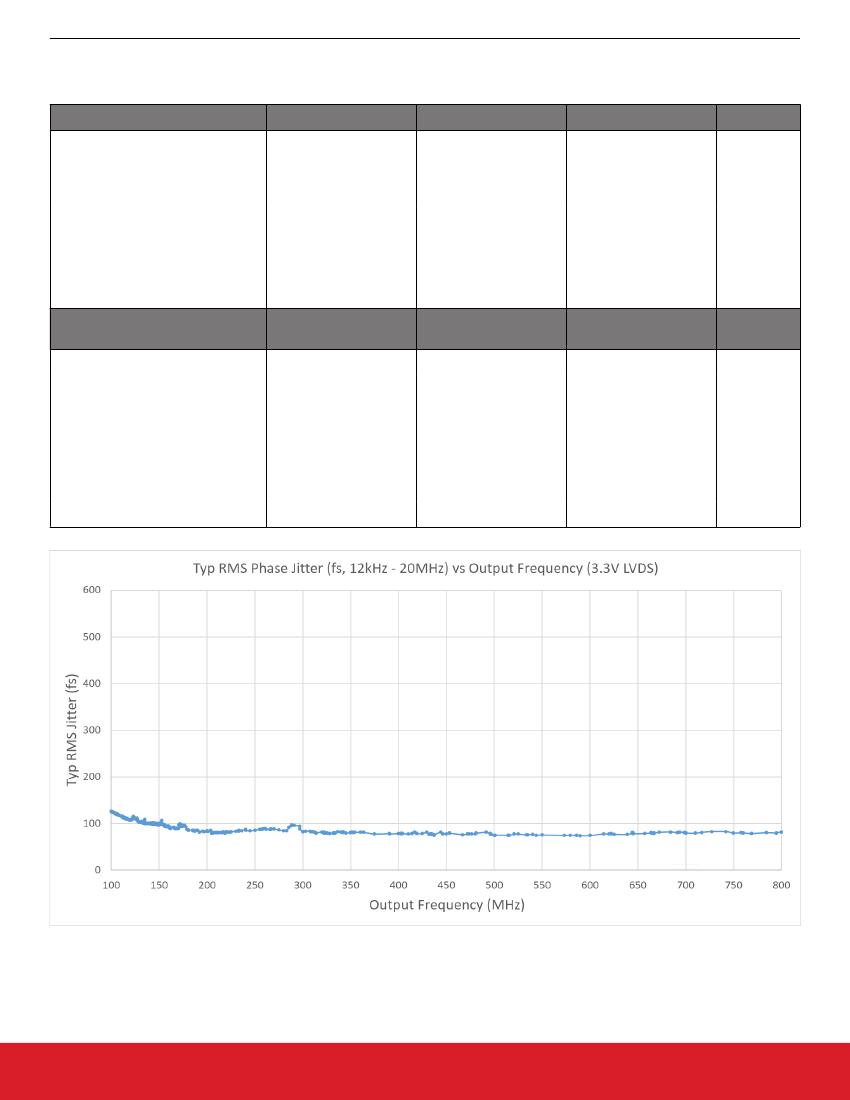

Figure 2.1. Phase Jitter vs. Output Frequency
