RSMV 3-593/5 M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size99KB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

RSMV 3-593/5 M Overview

Sensor Cables / Actuator Cables

RSMV 3-593/5 M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	M8
Connector End A Pin Count	3 Position
Connector End B	No Connector
Gender	Male
Length	5 m
Current Rating	4 A
Voltage Rating	63 V
Color	Yellow
Description/Function	Round Plug Single Ended Cordset
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

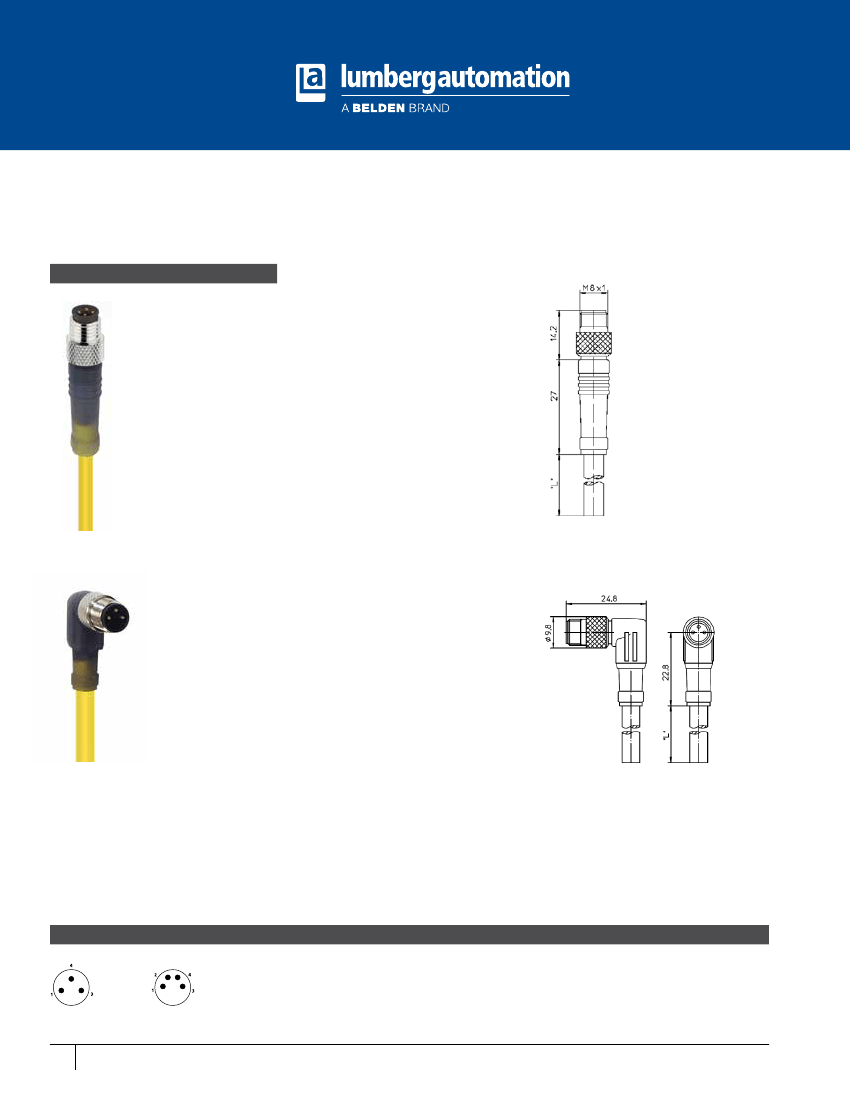

M8-Round-Plug Connector, Single-Ended Cordsets

RSMV 3 | RSMV 4 | RSMWV 3 | RSMWV 4

3- and 4-Poles

Actuator/sensor cordset, single-ended, M8,

3- and 4-poles male straight connector with

self-locking threaded joint and molded cable.

RSMV

RSMV | RSMWV

Actuator/sensor cordset, single-ended, M8,

3- and 4-poles male 90° connector with self-

locking threaded joint and molded cable.

RSMWV

Pin Assignments

M8

3 poles

1=

3=

4=

brown

blue

black

4 poles

1=

2=

3=

4=

brown

white

blue

black

84

Technical Support:

1-717-217-2289

www.lumberg-automationusa.com

LA_CONNECTIVITY-SOLUTIONS-CATALOG_MASTER_CA_ICOS_LUM_0415_A_AG
