0985 656 500/0.75M datasheet, PDF

Datasheet> All Categories > Wire/cable> 0985 656 500/0.75M

0985 656 500/0.75M: DescriptionSensor Cables / Actuator Cables; CategoryWire/cable; File Size1MB，2 Pages; ManufacturerLumberg Automation; Websitehttp://www.lumberg-automation.com

Download Datasheet Parametric View All

0985 656 500/0.75M Overview

Sensor Cables / Actuator Cables

0985 656 500/0.75M Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Lumberg Automation
Product Category	Sensor Cables / Actuator Cables
Connector End A	RJ45
Connector End A Pin Count	8 Position
Connector End B	RJ45
Connector End B Pin Count	8 Position
Gender	Male / Male
Length	750 mm
Number of Conductors	8 Conductor
Color	Teal
Jacket Material	Polyvinyl Chloride (PVC)
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Be Certain with Belden

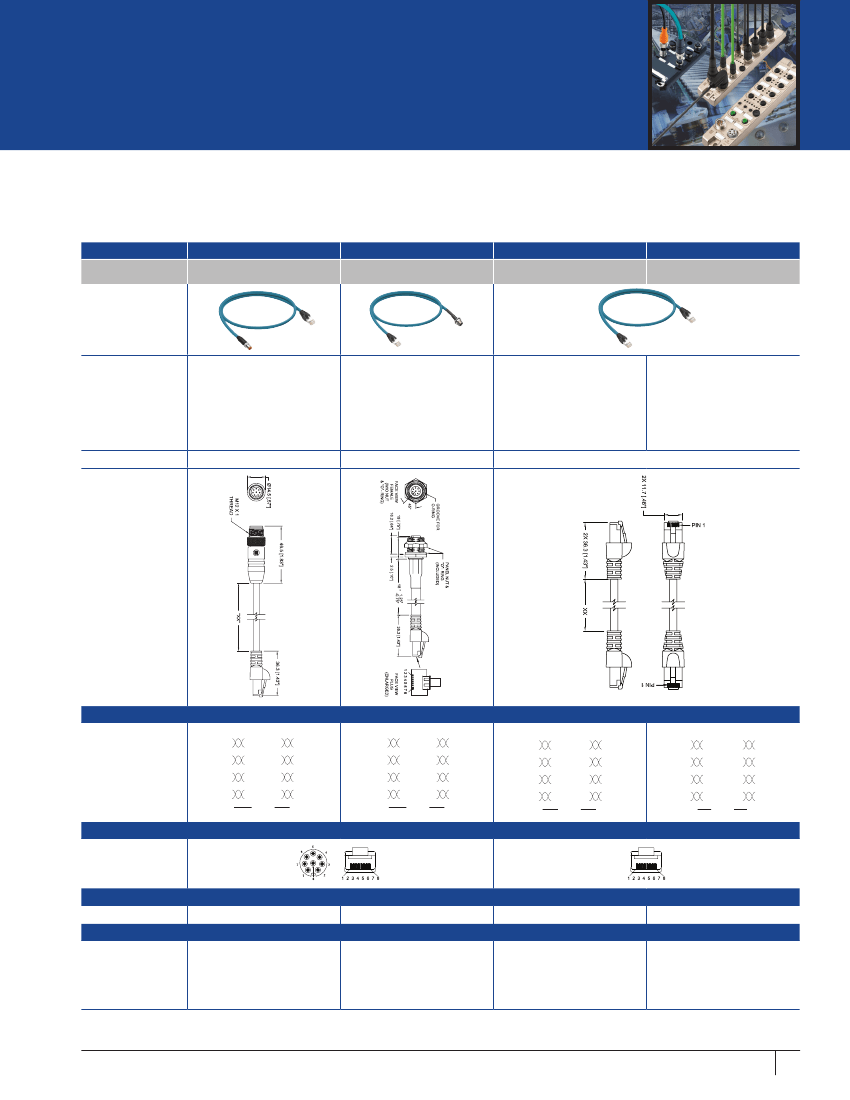

EtherMATE™ Industrial Ethernet Double-Ended Cord Sets

High-Flex/High Noise, Stranded/Shielded, 24 AWG, PVC Jacket

Type

Configuration

0985 656 103

M12 to RJ45

0985 656 104

M12

(receptacle)

to RJ45

0985 656 500

RJ45 to RJ45

0985 656 504

RJ45 to RJ45

(crossover)

Product Description

Industrial Ethernet double-ended cord

set, high-flex, male, M12 to RJ45

straight, 4-pair, 24 AWG, PVC cable,

stranded/shielded with teal jacket and

orange inserts.

Industrial Ethernet, double-ended cord

set, high-flex, M12 female receptacle

to RJ45 male, 4-pair, 24 AWG, PVC

cable, stranded/shielded, with teal

jacket.

Industrial Ethernet double-ended cord

set, high-flex, male, RJ45 to RJ45

straight, 4-pair, 24 AWG, PVC cable,

stranded/shielded with teal jacket.

Industrial Ethernet double-ended cord

set, high-flex, male, RJ45 to RJ45

straight, 4-pair, 24 AWG, PVC cable,

stranded/shielded crossover with teal

jacket.

Category Rating

Technical Illustration

CAT5e

Wiring diagram

M12

Nut

Color

White/Orange

Orange

White/Blue

Blue

White/Green

Green

White/Brown

Brown

Shield

RJ45

Shell

M12

Nut

Color

White/Orange

Orange

White/Blue

Blue

White/Green

Green

White/Brown

Brown

Shield

RJ45

Shell

RJ45

Shell

Color

White/Orange

Orange

White/Blue

Blue

White/Green

Green

White/Brown

Brown

Shield

RJ45

Shell

RJ-45S

Shield

Color

White/Orange

Orange

White/Blue

Blue

White/Green

Green

White/Brown

Brown

Shield

RJ-45S

Shield

Face views

Part number

0985 656 103/...M

Standard cable lengths

0.3 M / 0.5 M / 1 M / 2 M /

3 M / 4 M / 5 M / 10 M /

15 M / 20 M

0.5 M / 1 M / 2 M / 5 M /

10 M / 15 M / 20 M

0.3 M / 0.5 M / 1 M / 2 M /

3 M / 4 M / 5 M / 10 M / 15 M /

20 M / 25 M/ 30 M / 35 M /

40 M / 45 M / 50 M / 55 M /

60 M / 65 M / 70 M / 75 M /

80 M / 85 M / 90 M

0.6 M / 1 M / 2 M / 5 M /

10 M / 15 M / 30 M

0985 656 104/...M

0985 656 500/...M

0985 656 504/...M

www.lumberg-automationusa.com

800-235-3361 or 1-800-BELDEN1
