Industrial 8-por t unmanaged PoE Ethernet switch with
8x10/100Base-T(X) P.S.E., 24VDC power input
1
Industrial Ethernet Switch
Features
▪
Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
▪
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with
maximum 30Watts per port
▪
Advanced PoE power boost technology to support dual 24VDC power inputs
▪
Support auto-negotiation and auto-MDI/MDI-X
▪
Support store and forward transmission
▪
Support flow control
▪
Warning system by relay output
▪
Rigid IP-30 housing design
▪
DIN-Rail and wall mounting enabled
Introduction
IPS-1080-24V is unmanaged PoE Ethernet switch with P.S.E. function. IPS-1080-24V supports Power over Ethernet, a system to transmit electrical power,
along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IPS-1080-24V switch has 8X10/100Base-T(X) P.S.E. (Power
Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from
-40oC to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.
Practical Operation

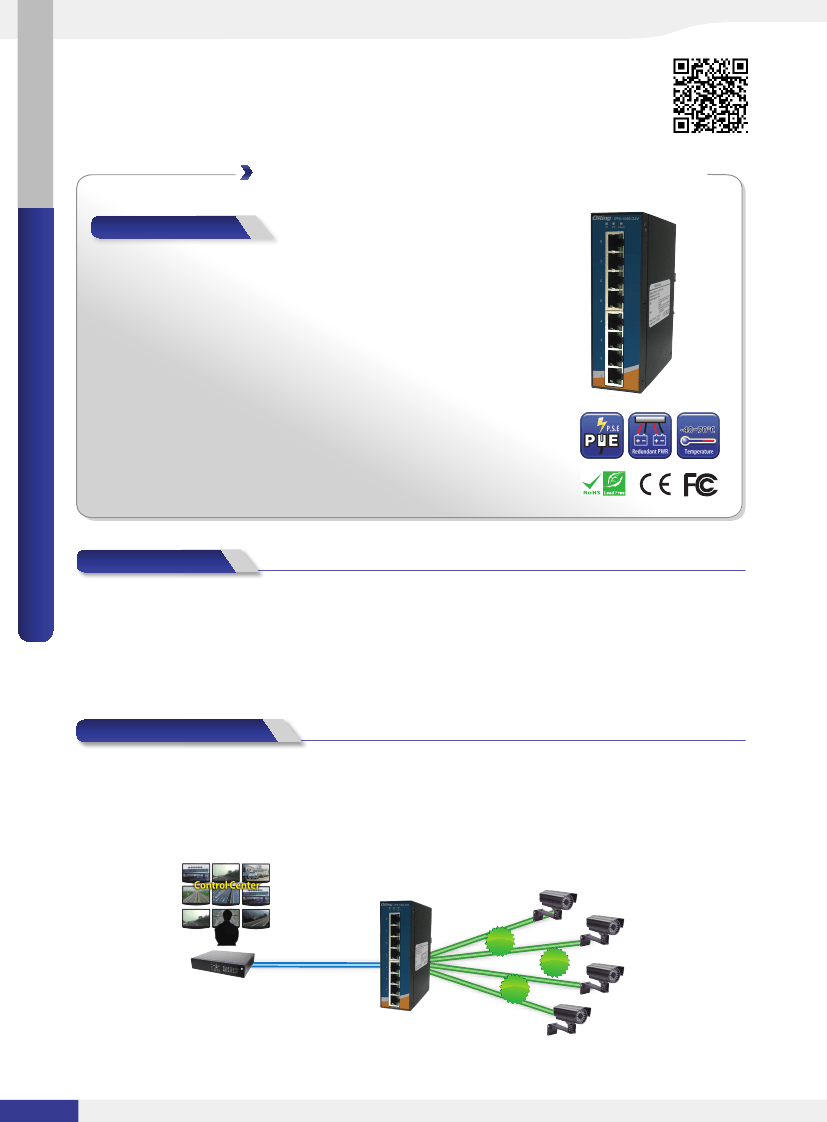

IPS-1080-24V can be used in connecting several PoE P.D. Ethernet devices like IP-Camera or other Ethernet devices. In addition, there are two different
power inputs at terminal block to avoid interruption caused by power down. When the primary DC power input fails, the backup power input will take over
immediately to guarantee a non-stop operation.
IP Camera (PD)
PoE
PoE
DVR
IP Camera (PD)
PoE
IP Camera (PD)
IPS-1080-24V (P.S.E.)
IP Camera (PD)
1-394
w w w.o r i ng - n et wo rk in g. co m
Industrial Ethernet Switch
DIN-Rail Unmanaged PoE Ethernet Switch
v1.0 / Jun, 2013

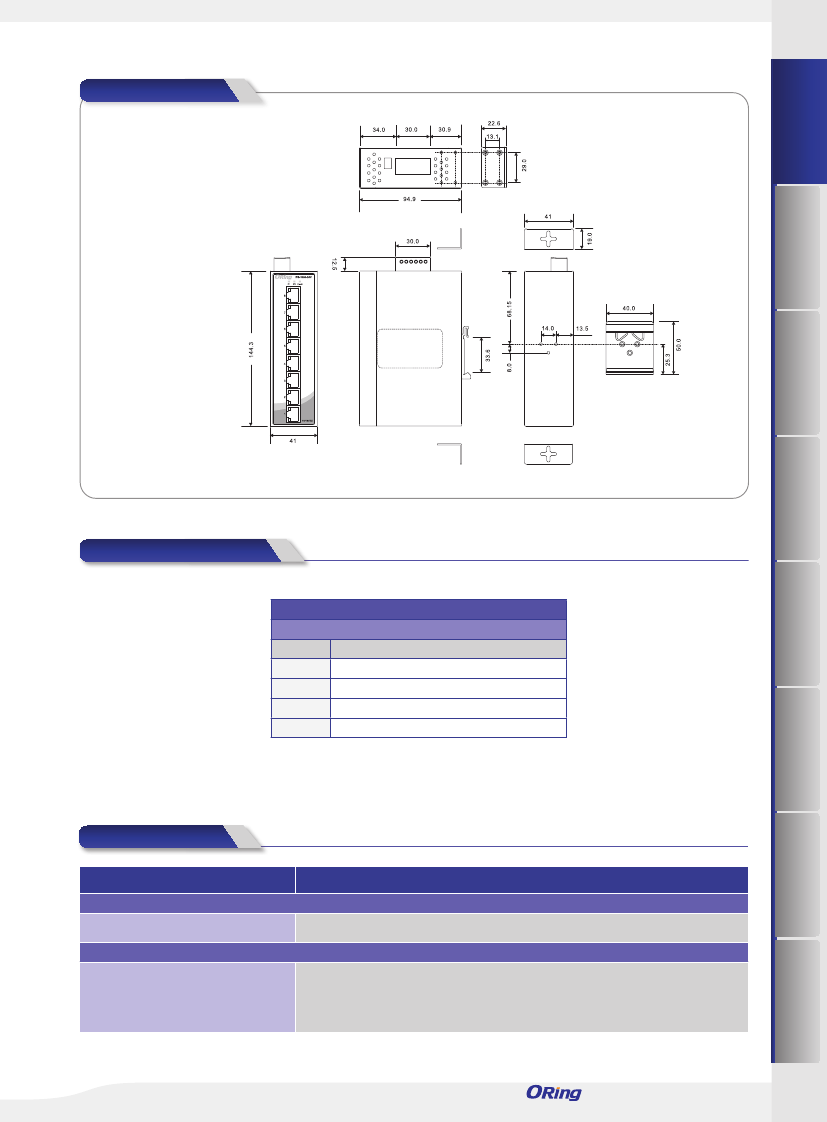

Dimensions
Industrial
Ethernet Switch
Industrial
Media Converter
Industrial
Device Server
Industrial Wireless
Access Point
(Unit=mm)
PoE Pin Assignment
VPN Router
Industrial Cellular
10/100Base-T(X) P.S.E. RJ-45 Port
RJ-45 Pin Definition
Pin No.
#1
#2
#3
#6
Description
TD+ with PoE Power input +
TD- with PoE Power input +
RD+ with PoE Power input -
RD- with PoE Power input -
Industrial
M2M Gateway
Specifications
Accessories
ORing Switch Model
Physical Ports
IPS-1080-24V
10/100Base-T(X) Ports in RJ45
Auto MDI/MDIX with P.S.E.
Technology
8
Management Softwar
e
Network
Ethernet Standards
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification (total power budget is 120Watts with maximum 30Watts per port)
D esi gned for R ugged E xcellence
1-395
Industrial Ethernet Switch
DIN-Rail Unmanaged PoE Ethernet Switch
v1.0 / Jun, 2013
MAC Table
Processing
LED Indicators
2048 MAC addresses
Store-and-Forward
Green : Power LED x 2
Amber : Indicate PWR1 or PWR2 failure
Green for port Link/Act.
Green for PoE power injected.
Relay output to carry capacity of 1A at 24VDC
Dual DC inputs. 24~36VDC on 6-pin terminal block.
4.32 Watts (PoE output not included)
Present
NOT Present
IP-30
41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68inch)
