178071154003833 Overview

Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,

178071154003833 Parametric

Parameter Name	Attribute value
Objectid	1936380904
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8071
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

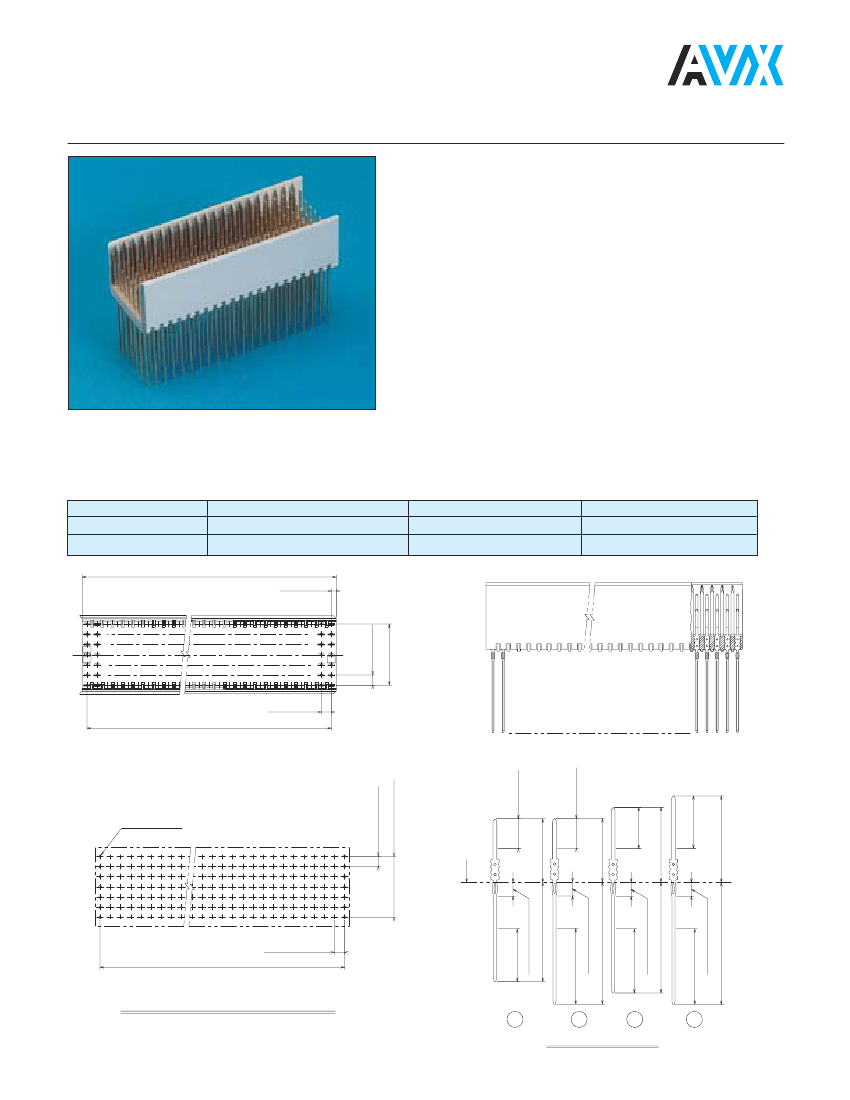

P2/P5 Type B Vertical Male

Feed-Thru for Backplanes

Series 8071

• 110 signal contacts and 44 ground shield contacts in 5+2 rows

of 22 positions

• Designed for gas tight press-fit installation

• Fills positions P2 and P5 of the CompactPCI specification and

should be used with a Type A or AB connector

• Twelve different contact styles are available for customizing

connector to exact specifications (see page 64)

• See page 50 for rear shroud part numbers

17 8071 154 003 XXX

= P2/P5 110 signal contacts and 44 ground contacts, Long Tail, L2,3 cPCI

17 8071 154 004 XXX

= P2/P5 110 signal contacts and 44 ground contacts, Long Tail, L1,3 cPCI

17 8071 154 015 XXX

= P2/P5 110 signal contacts and 44 ground contacts, Long Tail, L1,3 cPCI

XXX =

Plating Code

833

863

43.9

0.95

MAX.

Contact Area

0.1µm min. Au.65µm Pd/Ni

0.76µm min. Au

Press-fit Area

1.5-3.0µm Solder

Under Coat

Nickel 1.2-3.0µm

2X6=12.0

42.0

2.0

TYP.

8N21XX

2.0

±0.1

TYP.

2X6=12.0

±0.1

CONTACT

AREA

CONTACT

AREA

P.C.B.

+0.2

8.3

PRESS FIT AREA

8.3

PRESS FIT AREA

9.8

CONTACT

AREA

PRESS FIT AREA

13.0

14.5

CONTACT

AREA

CONTACT

AREA

42.0

±0.1

RECOMMENDED P.C. BOARD LAYOUT

(COMPONENT SIDE)

ELCO

CONTACT DETAIL

CONTACT

AREA

2.0

±0.1

TYP.

16.0

11.3

+0.2

154-

0.6

±0.05

CONTACT

AREA

CONTACT

AREA

X X

2.0

178071154003833 Related Products

	178071154003833	178071154003863	178071154004833	178071154004863	178071154015833	178071154015863
Description	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compli	compli	compli	compli	compli
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	50 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS AVAILABLE IN 2 ROWS
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	8071	8071	8071	8071	8071	8071
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110	110	110
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	-	1	1	1	1	1
