ECOC-2522-38.400-5GS datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> ECOC-2522-38.400-5GS

Preview

ECOC-2522-38.400-5GS: DescriptionOCXO Oscillators 38.4MHz 5V 10ppb -20C +70C; CategoryPassive components; File Size512KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECOC-2522-38.400-5GS Overview

OCXO Oscillators 38.4MHz 5V 10ppb -20C +70C

ECOC-2522-38.400-5GS Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	ECS
Product Category	OCXO Oscillators
RoHS	Details
Frequency	38.4 MHz
Frequency Stability	10 PPB
Load Capacitance	15 pF
Operating Supply Voltage	5 V
Supply Voltage - Min	4.75 V
Supply Voltage - Max	5.25 V
Output Format	Sinewave
Termination Style	SMD/SMT
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 70 C
Length	25.4 mm
Width	22.1 mm
Height	12.2 mm
Packaging	Tray
Duty Cycle - Max	55 %
Factory Pack Quantity	15

Preview

Download Datasheet

View All

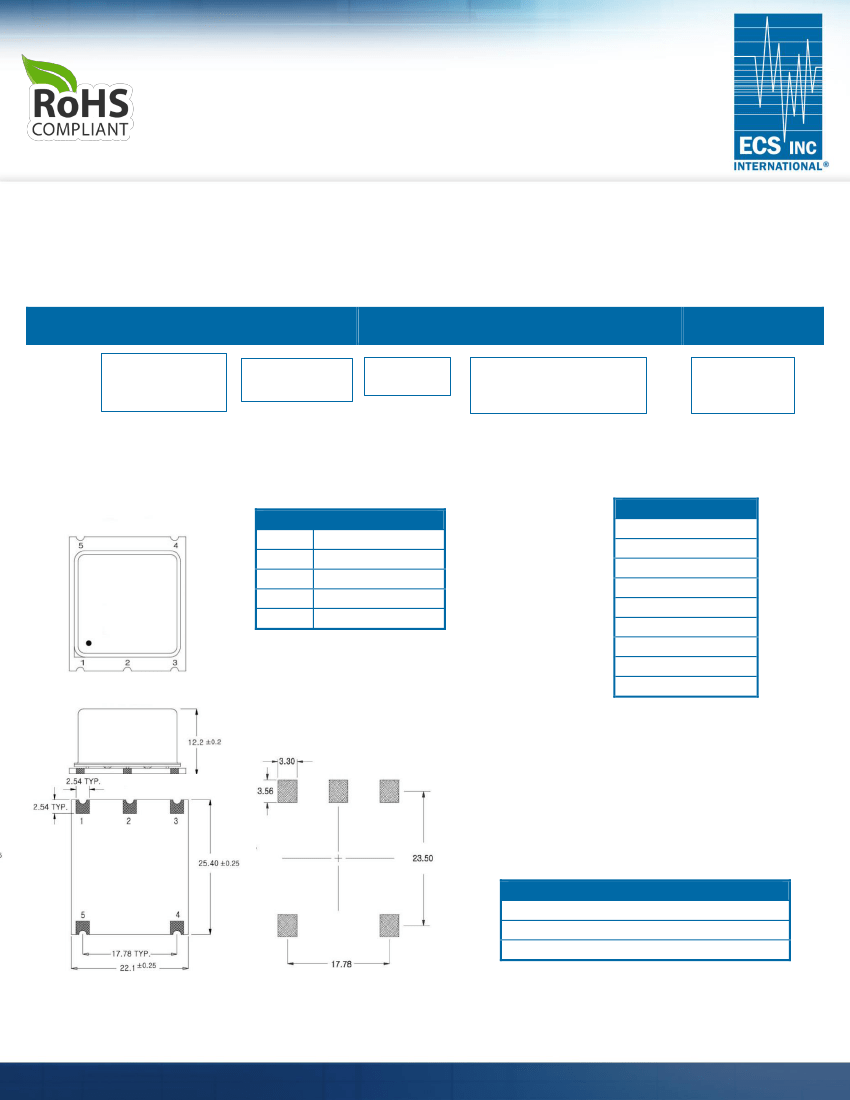

The ECOC-2522 is a SMD CMOS SC-Cut OCXO. The 25.4 x 22.0 x

12.2 mm SMD package is ideal for Cellular, Radar, Test &

Measurement and IOT applications.

ECX-2520 SMD HCMOS TCXO

ECOC-2522

SMD OCXO

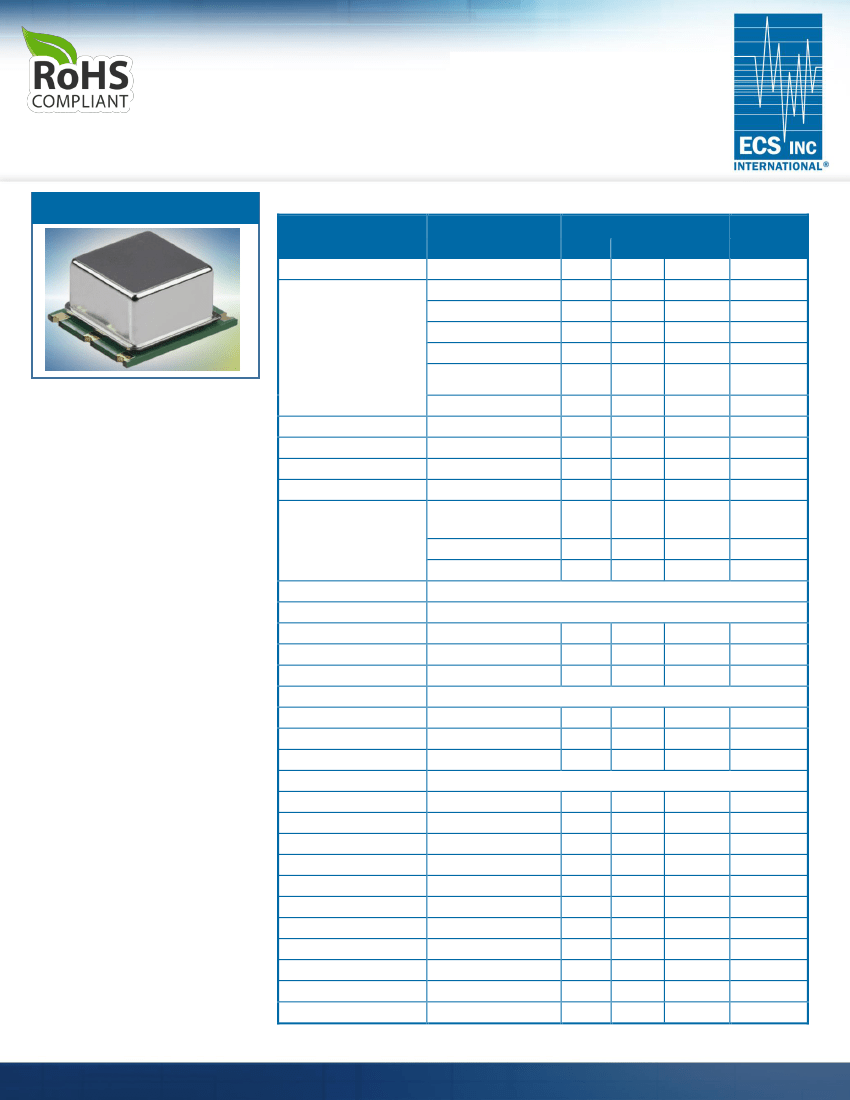

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

0 ~ +50°C (F Opt)

-20 ~ +70°C (G Opt)

-40 ~ +75°C (H Opt)

CONDITIONS

MIN

ECOC-2522

TYP

MAX

UNITS

MHz

ppb

ppm

Watts

V

ppb

2.000

Frequency Stability



SC Cut

25.4 x 22 mm Footprint

Extended Temp Range

RoHS Compliant

Supply Voltage ±5%

Warm-Up @+25°C

(≤ 3 minutes)

Load Change (±10%)

At turn on

Steady State

3.3 Option

5.0 Option

100.000

± 5.0

± 10.0

±30.0

±20.0

±100.0

±0.2

3.6

1.4

3.465

5.25

±1.0

±100

±500

Power Consumption

Supply Voltage

Aging

Waveform

Output voltage Level

Output Load

Rise & Fall time

Duty Cycle

Waveform

Peak Power

Output Load

Spurious Response

Phase Noise

@ 1 Hz Offset

@ 10 Hz Offset

@ 100 Hz Offset

@ 1,000 Hz Offset

@ 10,000 Hz Offset

@ 100 KHz Offset

@ 1 MHz Offset

Control Voltage Range

3.135

4.75

3.3

5.0

Daily (after 30

days)

Yearly

10-Years

Frequency Pull Range

VC Port Impedance

Storage Temperature

CMOS

V

OL:

10%V

dd

max./V

OH:

90%V

dd

min.V DC

15

pF

10%V

dd –

90%V

dd

5

ns

@ ½ V

dd

45/55

%

Sinewave

2.0

dBm

50

Ω

-70

dBc

@ 10 MHz Carrier, Vdd 3.3V

-90

dBc/Hz

-120

dBc/Hz

-135

dBc/Hz

-145

dBc/Hz

-150

dBc/Hz

-150

dBc/Hz

-150

dBc/Hz

Positive Slope

0

Vdd/2

Vdd

V

±0.7

ppm

10

kΩ

-40

+100

°C

Rev.2016

15351 West 109

th

Street

|

Lenexa, KS 66219

|

Phone: 913.782.7787

|

Fax: 913.782.6991

|

www.ecsxtal.com
