WYO Series
www.vishay.com
Vishay Draloric

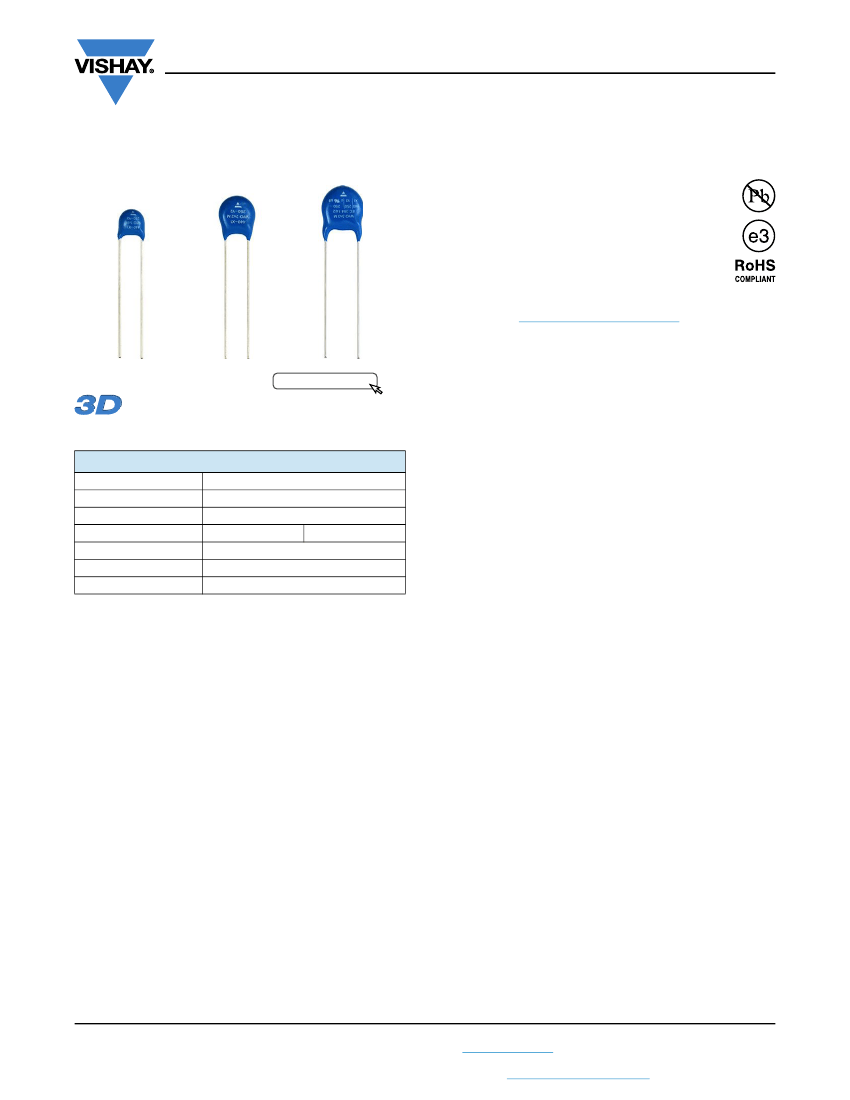

AC Line Rated Ceramic Disc Capacitors
Class X1, 440 V
AC
, Class Y2, 250 V
AC
FEATURES
• Complying with IEC 60384-14 4
th
edition
• High reliability
• Wide range of capacitance values
• Wide range of different leadstyles
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y2 according to IEC 60384-14.4
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
• Line-by-pass
DESIGN
The capacitors consist of ceramic disc both sides of which
are silver plated. Connection leads are made of tinned
copper having diameters of 0.6 mm.
VALUE
2
Y5U
440
1000
12 000
Radial
250
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 5.0 mm or 7.5 mm.
Coating is made of blue colored flame retardant epoxy resin
in accordance with UL 94 V-0.
CAPACITANCE RANGE
1.0 nF to 12 nF
MARKING
Marking indicates series, AC rating, capacitance, tolerance
code, and approvals.
TOLERANCE ON CAPACITANCE
± 20 %
RATED VOLTAGE
• X1:
• Y2:
440 V
AC
, 50 Hz (IEC 60384-14.4)
440 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
250 V
AC
, 50 Hz (IEC 60384-14.4)
250 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
OPERATING TEMPERATURE RANGE
-40 °C to +125 °C
TEMPERATURE CHARACTERISTICS
Class 2
Y5U
TEST VOLTAGE
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60058-1)
Class 2
40/125/21
• 2500 V
AC
, 50 Hz, 2 s
• 1500 V
AC
, 50 Hz, 60 s
• 2000 V
AC
, 60 Hz, 60 s
Component test (100 %)
Random sampling test (destructive)
Voltage proof of coating (destructive)
APPROVALS
IEC 60384-14.4
UL 60384-14.1
CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
INSULATION RESISTANCE AT 500 V
DC
6000
M (60 s)
DISSIPATION FACTOR
Class 2: max. 2.5 % (1 kHz)
Revision: 29-Mar-18
Document Number: 22202
1
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WYO Series
www.vishay.com
Vishay Draloric

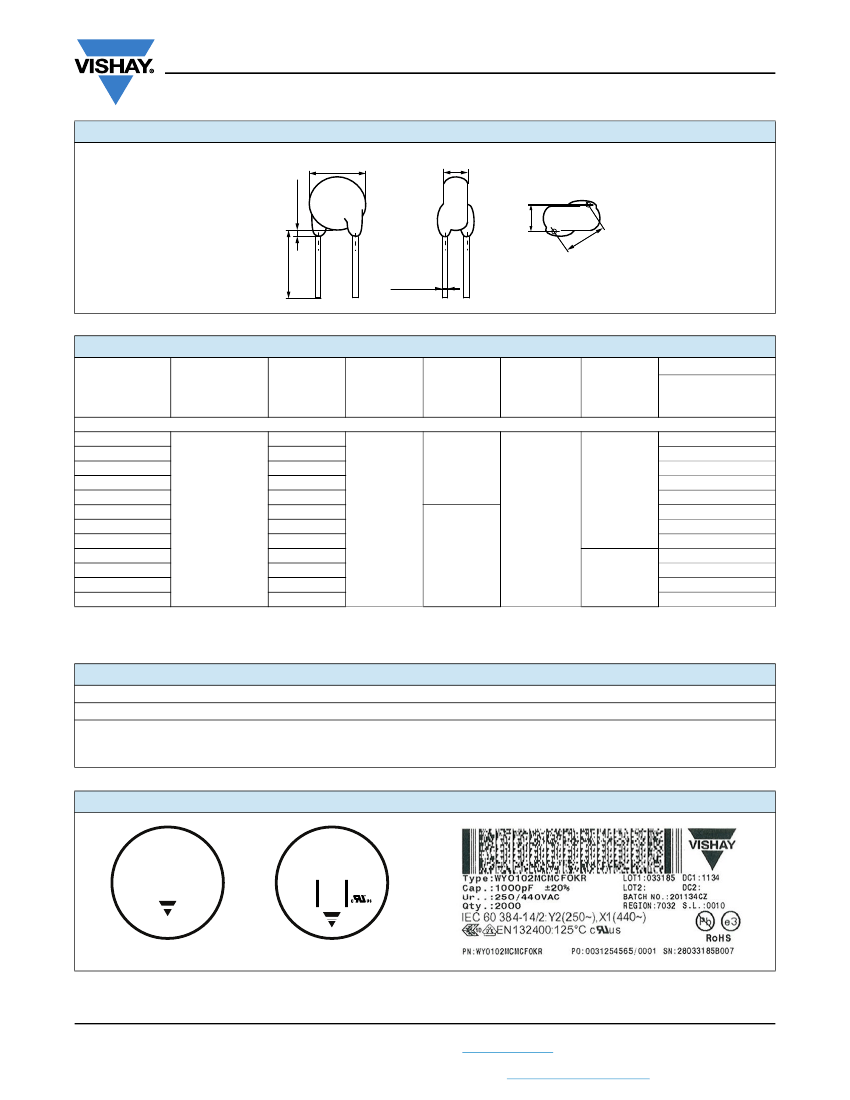

DIMENSIONS
in millimeters
D
max.
3.0 max.
S
max.
V
F
30 - 3
or 10 ± 1
Ø d ± 0.05
TECHNICAL DATA
CAPACITANCE
C (pF)
Y5U (2E3)
1000
1500
1800
2200
2500
3300
4700
5000
6800
8200
10 000
12 000
CAPACITANCE
TOLERANCE
BODY
DIAMETER
D
MAX.
(mm)
6.5
8.0
8.0
9.0
9.0
11.0
12.5
12.5
17.0
17.0
21.0
21.0
BODY
THICKNESS
S
MAX.
(mm)
LEAD
SPACING
(1)
F (mm)
± 1 mm
LEAD
DIAMETER
(1)
d (mm)
± 0.05 mm
WIDTH
(1)
V (mm)
± 0.5 mm
PART NUMBER
MISSING DIGITS
SEE ORDERING
CODE BELOW
WYO102#CM###KR
WYO152#CM###KR
WYO182#CM###KR
WYO222#CM###KR
WYO252#CM###KR
WYO332#CM###KR
WYO472#CM###KR
WYO502#CM###KR
WYO682#CM###KR
WYO822#CM###KR
WYO103#CM###KR
WYO123#CP###KR
5.0
1.4
4.5
7.5
1.6
0.6
± 20 %
Note
(1)
Standard lead configuration, other lead spacing and diameter available on request
ORDERING CODE
#
###
Example
10
th
7
th
digit
to
12
th
digit
WYO
Series
Capacitance tolerance
Lead configuration
103
Capacitance
value
M
Tolerance code
± 10 % = K, ± 20 % = M
see “General Information”
CM
Voltage code
CF0
Lead
configuration
K
Internal code
R
RoHS
compliant
MARKING
440~X1
WYO 2n2 M
250~Y2
WYO 4n7 M
IEC 384-14/2
440 250 250~
X1 Y2
WYO 1.0 nF to 2.5 nF
WYO 3.3 nF to 12 nF
Revision: 29-Mar-18
Document Number: 22202
2
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WYO Series
www.vishay.com
Vishay Draloric
APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y2-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
Minimum thickness of insulation: 0.4 mm
VDE
Y2-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Minimum thickness of insulation: 0.4 mm
Underwriters Laboratories Inc. / Canadian Standards Association
Y2-capacitor: UL-test certificate:
X1-capacitor: UL-test certificate:
E183844
E183844
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
133769
133769
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
US-26154-UL
US-26154-UL
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
UL 60384-14.1, CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
Across-the-line, antenna-coupling and line-by-pass component
Minimum thickness of insulation: 0.4 mm
LEAKAGE CURRENT VS. VOLTAGE
(typical)
I (μA)
4000
8.2 nF
3000
IMPEDANCE VS. FREQUENCY
(typical)
Z (Ω)
100
10
2000
4.7 nF
3.3 nF
1
0
0
500
1000
1500
2000
1 nF
0.01
2500
0.1
1
10
12 nF
5 nF
2.5 nF
1 nF
100
1000
2.2 nF
0.1
U
R
(V~)
f (MHz)
