540AAA125M000BAGR datasheet, PDF

Datasheet> All Categories > Passive components> 540AAA125M000BAGR

540AAA125M000BAGR: DescriptionStandard Clock Oscillators Single Frequency XO; CategoryPassive components; File Size868KB，16 Pages; ManufacturerSilicon Laboratories

Download Datasheet Parametric Compare View All

540AAA125M000BAGR Overview

Standard Clock Oscillators Single Frequency XO

540AAA125M000BAGR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Silicon Laboratories
Product Category	Standard Clock Oscillators
Frequency	125 MHz
Frequency Stability	50 PPM
Load Capacitance	5 pF
Operating Supply Voltage	2.5 V, 3.3 V
Supply Voltage - Min	2.375 V
Supply Voltage - Max	3.465 V
Output Format	LVPECL
Termination Style	SMD/SMT
Package / Case	3.2 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	5 mm
Width	3.2 mm
Height	1.17 mm
Current Rating	100 mA
Duty Cycle - Max	55 %

Preview

Download Datasheet

View All

Ultra Series

™

Crystal Oscillator

Si540 Data Sheet

Ultra Low Jitter Any-Frequency XO (125 fs), 0.2 to 1500 MHz

KEY FEATURES

The Si540 Ultra Series

™

oscillator utilizes Silicon Laboratories’ advanced 4

generation DSPLL

technology to provide an ultra-low jitter, low phase noise clock

at any output frequency. The device is factory-programmed to any frequency from

0.2 to 1500 MHz with <1 ppb resolution and maintains exceptionally low jitter for

both integer and fractional frequencies across its operating range. The Si540

offers excellent reliability and frequency stability as well as guaranteed aging

performance. On-chip power supply filtering provides industry-leading power

supply noise rejection, simplifying the task of generating low jitter clocks in noisy

systems that use switched-mode power supplies. Offered in industry-standard

3.2×5 mm and 5×7 mm footprints, the Si540 has a dramatically simplified supply

chain that enables Silicon Labs to ship custom frequency samples 1-2 weeks after

receipt of order. Unlike a traditional XO, where a different crystal is required for

each output frequency, the Si540 uses one simple crystal and a DSPLL IC-based

approach to provide the desired output frequency. This process also guarantees

100% electrical testing of every device. The Si540 is factory-configurable for a

wide variety of user specifications, including frequency, output format, and OE pin

location/polarity. Specific configurations are factory-programmed at time of

shipment, eliminating the long lead times associated with custom oscillators.

Pin Assignments

• Available with any frequency from 0.2 MHz to

1500 MHz

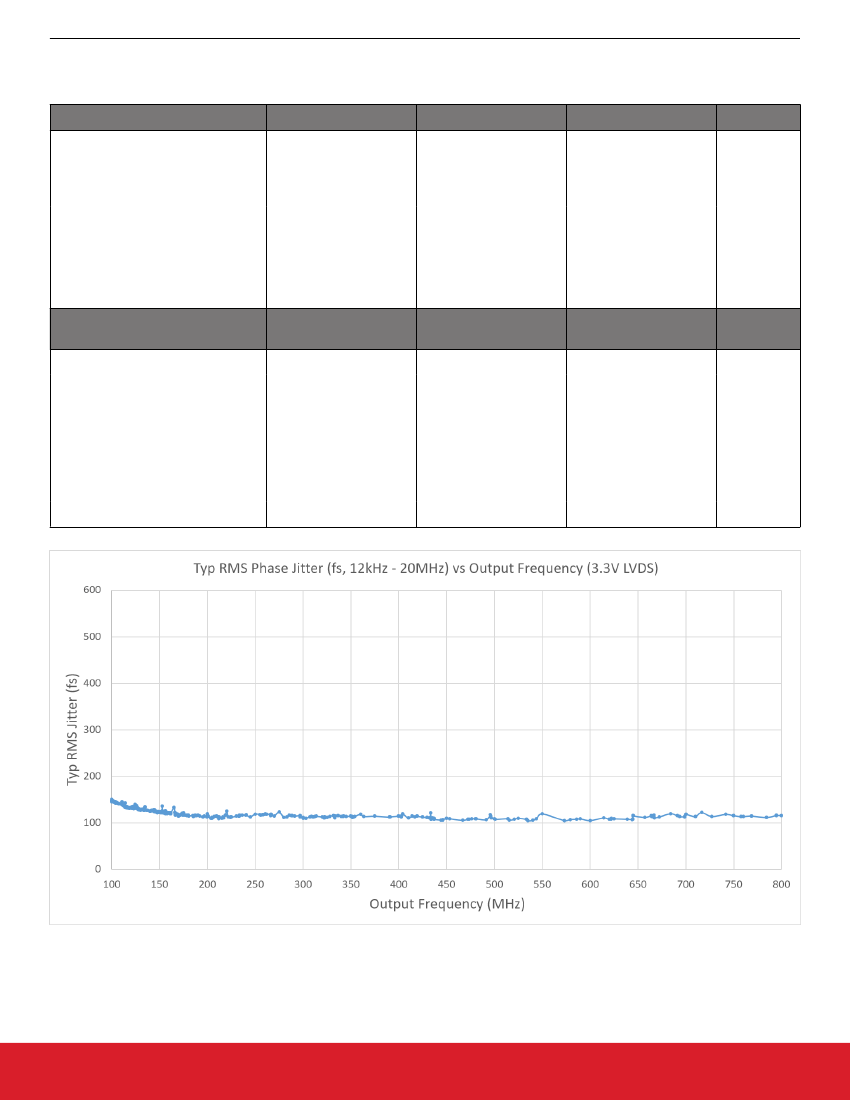

• Very low jitter: 125 fs Typ RMS

(12 kHz – 20 MHz)

• Excellent PSRR and supply noise immunity:

–80 dBc Typ

• 10 ppm stability option (-40 to 85C)

• 3.3 V, 2.5 V and 1.8 V V

supply operation

from the same part number

• LVPECL, LVDS, CML, HCSL, CMOS, and

Dual CMOS output options

• 3.2×5, 5×7 mm package footprints

• Any custom frequency available with 1-2

week lead times

APPLICATIONS

• 100G/200G/400G OTN, coherent optics

• 10G/40G/100G optical ethernet

• 3G-SDI/12G-SDI/24G-SDI broadcast video

VDD

CLK-

CLK+

OE/NC

(Top View)

• Servers, switches, storage, NICs, search

acceleration

• Test and measurement

• Clock and data recovery

• FPGA/ASIC clocking

NC/OE

GND

Pin #

1, 2

Descriptions

Selectable via ordering option

OE = Output enable; NC = No connect

GND = Ground

CLK+ = Clock output

CLK- = Complementary clock output. Not used

for CMOS.

VDD = Power supply

NVM

Control

Fixed

Frequency

Crystal

Frequency

Flexible

DSPLL

DCO

Low

Noise

Driver

OSC

Digital

Phase

Detector

Phase Error

Cancellation

Phase Error

Fractional

Divider

Digital

Loop

Filter

Flexible

Formats,

1.8V – 3.3V

Operation

Power Supply Regulation

Output Enable

(Pin Control)

Built-in Power Supply

Noise Rejection

silabs.com

| Building a more connected world.

Rev. 0.75

540AAA125M000BAGR Related Products

	540AAA125M000BAGR	540BAA100M000BAGR	540CAA10M0000BAGR	540BAA000351BAGR	540BAA148M350BAG	540BAA000244BAGR	540BAA125M000BAGR
Description	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO	Standard Clock Oscillators Single Frequency XO
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories	Silicon Laboratories
Product Category	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators	Standard Clock Oscillators
Frequency	125 MHz	100 MHz	10 MHz	0.2 MHz to 1500 MHz	148.35 MHz	0.2 MHz to 1500 MHz	125 MHz
Frequency Stability	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM	50 PPM
Load Capacitance	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF	5 pF
Operating Supply Voltage	2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V	1.8 V, 2.5 V, 3.3 V
Supply Voltage - Min	2.375 V	1.71 V	1.71 V	1.71 V	1.71 V	1.71 V	1.71 V
Supply Voltage - Max	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Output Format	LVPECL	LVDS	CMOS	LVDS	LVDS	LVDS	LVDS
Termination Style	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	3.2 mm x 5 mm	3.2 mm x 5 mm	3.2 mm x 5 mm	3.2 mm x 5 mm	3.2 mm x 5 mm	3.2 mm x 5 mm	3.2 mm x 5 mm
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C	- 40 C
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C	+ 85 C
Length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Width	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Height	1.17 mm	1.17 mm	1.17 mm	1.17 mm	1.17 mm	1.17 mm	1.17 mm
Current Rating	100 mA	75 mA	74 mA	75 mA	75 mA	75 mA	75 mA
Duty Cycle - Max	55 %	55 %	55 %	55 %	55 %	55 %	55 %
