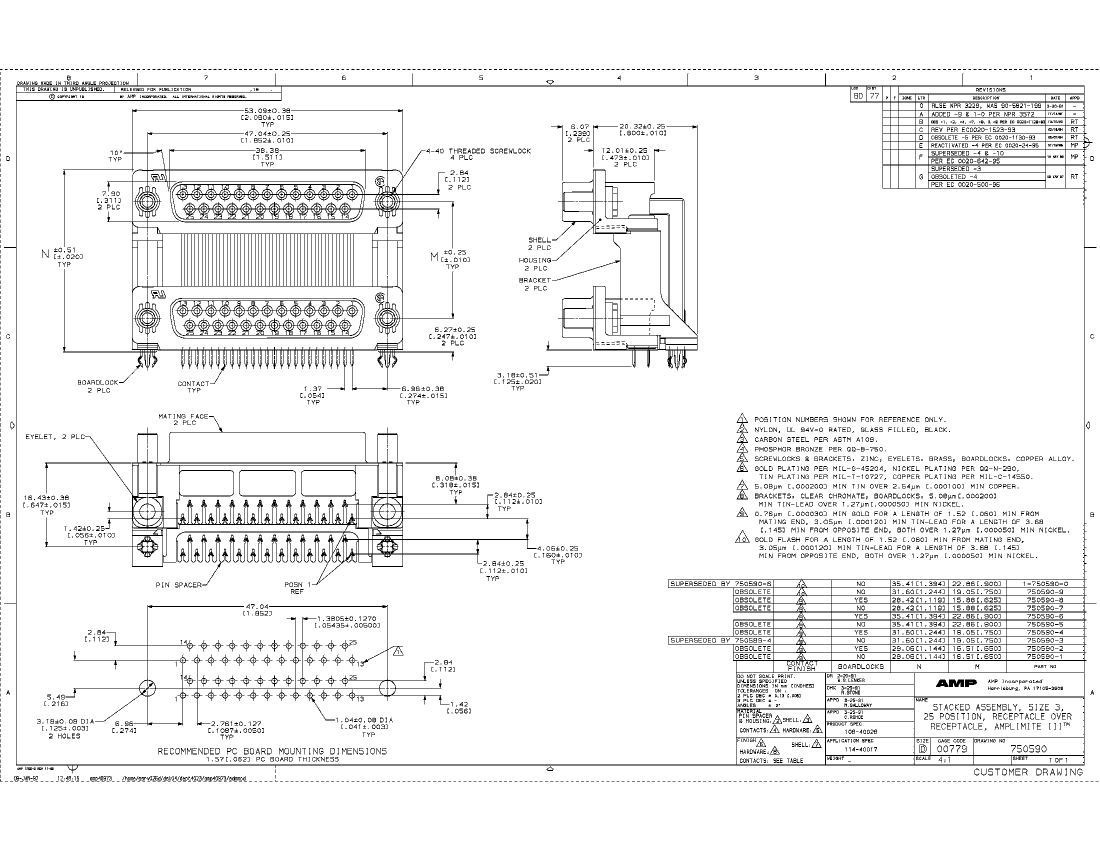

25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | AMPLIMITE III |
| body width | 1.394 inch |
| subject depth | 0.8 inch |
| body length | 2.09 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE-FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 15 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYAMIDE |
| MIL compliance | NO |
| Manufacturer's serial number | 750590 |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | #4-40 |
| Installation option 2 | HEX HEAD |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 2.9 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.125 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 1-750590-0 | 750590-6 | 750590-1 | 750590-2 | 750590-5 | 750590-7 | 750590-8 | 750590-9 | 750590-3 | 750590-4 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR,D-SHELL,PCB MNT,PLUG,25+25 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40 | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE | CONNECTOR, 25 CONTACT(S), FEMALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Body/casing type | RECEPTACLE | PLUG | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contact point gender | FEMALE-FEMALE | FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE | FEMALE-FEMALE |
| insulator material | POLYAMIDE | THERMOPLASTIC | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE | POLYAMIDE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Shell surface | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL | STEEL |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 25 | 50 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Other features | AMPLIMITE III | - | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III | AMPLIMITE III |
| Connector type | D SUBMINIATURE CONNECTOR | - | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| DIN compliance | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| empty shell | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 750590 | - | 750590 | 750590 | 750590 | 750590 | 750590 | 750590 | 750590 | 750590 |
| Mixed contacts | NO | - | NO | NO | NO | NO | NO | NO | NO | NO |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Housing size | 3/B | - | 3/B | 3/B | 3/B | 3/B | 3/B | 3/B | 3/B | 3/B |
| UL Flammability Code | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Maker | - | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity | TE Connectivity |
| Is Samacsys | - | - | N | N | N | N | N | N | N | N |
