TECHNICAL DATA SHEET
ADAPTOR
SMB PLUG – N JACK
59S153-K00L5

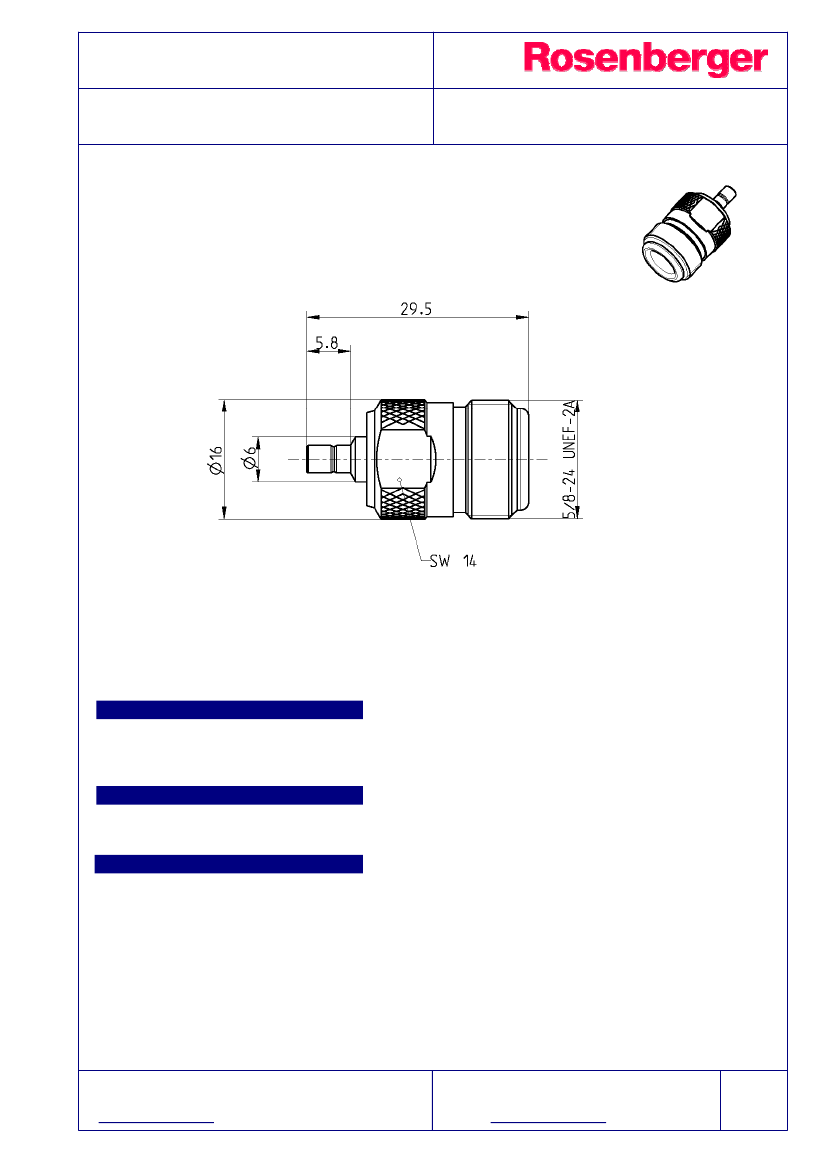

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
SMB side:
N side:
IEC 60169-10, CECC 22130, US MIL-C-39012
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact SMB side
Outer contact N side
Dielectric
Material
CuBe
Brass
Brass
PTFE
Plating
AuroDur®, gold plated
AuroDur®, gold plated
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
SMB PLUG – N JACK
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contact current
RF-leakage
50
DC to 4 GHz
25 dB, DC to 1 GHz
22 dB, 1 to 4 GHz
0.05
f(GHz)
x dB
1x10
3
M
5 m, SMB side
1 m, N side
2.5 m, SMB side
0.25 m, N side
750 V rms, 50 Hz, at sea level
250 V rms, 50 Hz, at sea level
1.5 A DC typ.
55 dB up to 1 GHz
59S153-K00L5
Mechanical data
Mating cycles
Center contact captivation: axial
Engagement force
Disengagement force
Coupling test torque
Recommended torque
SMB side
min. 500
10 N
63 N
8 N min. to 63 N max.
N/A
N/A
N side
min. 500
10 N
N/A
N/A
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Vibration
Corrosion
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107, Cond. B
204, Cond. B
101, Cond. B
106
Tooling
N/A
Suitable cables
N/A
Weight
Weight
25.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
14/12/04
Approved
Sa. Krautenbacher
Date
20.03.14
Rev.
b00
Engineering change number
14-0352
Name
T. Krojer
Date
20.03.14
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
