C0603X271J4RAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> C0603X271J4RAC

C0603X271J4RAC: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.00027 uF, SURFACE MOUNT, 0805; CategoryPassive components capacitor; File Size110KB，4 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance; Related ProductsFound2parts with similar functions to C0603X271J4RAC

Download Datasheet Parametric View All

C0603X271J4RAC Overview

CAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.00027 uF, SURFACE MOUNT, 0805

C0603X271J4RAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 0603
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.00027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	5%
Rated (DC) voltage (URdc)	16 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

Product Bulletin

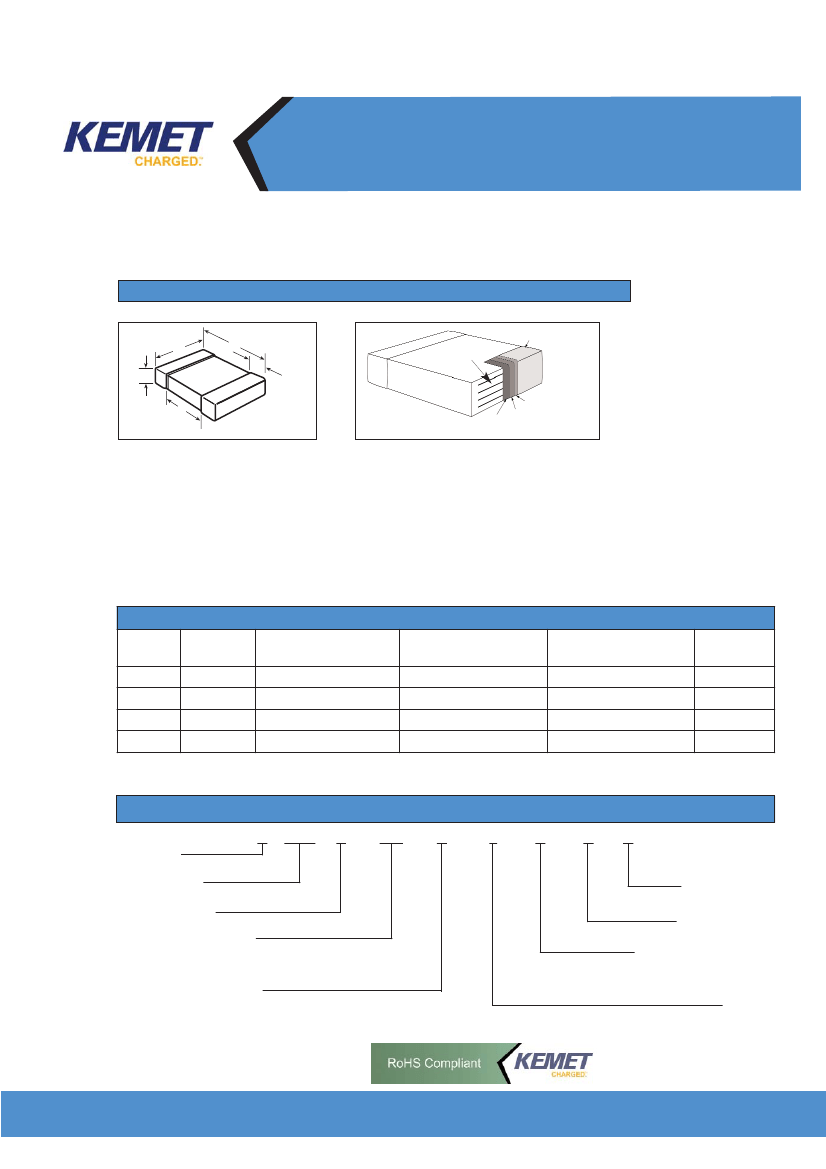

Surface Mount Ceramic Chip Capacitors

FT-CAP

Flexible Terminations

Outline Drawing

Tin Plate

Electrodes

Nickel Plate

Conductive Metallization

Silver Epoxy

The FT-CAP is a surface mount multi-layer ceramic capacitor that incorporates a unique and flexible termi-

nation system. Integrated with KEMET's standard termination materials, a conductive epoxy is utilized

between the conductive metallization and nickel barrier finish in order to establish pliability while maintain-

ing terminal strength, solderability and electrical performance. This technology directs board flex stress away

from the ceramic body and into the termination area. As a result, this termination system mitigates the risk

of low-IR or short-circuit failures associated with board flex. The FT-CAP complements our current "Open

Mode" and "Flexible Electrode (FE-CAP)" products by providing our customers with a complete portfolio of

flex solutions.

Dimensions – Millimeters (Inches)

EIA Size Metric Size

Code

0603

0805

1206

1210

1608

2012

3216

3225

Length

1.6 (.063) ± 0.15 (.006)

2.0 (.079) ± 0.20 (.008)

3.2 (.126) ± 0.20 (.008)

Width

0.8 (.032) ± 0.15 (.006)

1.25 (.049) ± 0.20 (.008)

1.6 (.063) ± 0.20 (.008)

2.5 (.098) ± 0.20 (.008)

Bandwidth

0.35 (.014) ± 0.15 (.006)

0.05 (.02) ± 0.25 (.010)

0.50 (.02) ± .25 (.010)

Separation

0.70 (.028)

0.75 (.030)

N/A

See Capacitance Value Table next page for thickness dimension.

Ordering Information

Style

C - Ceramic

Size Code

See dimension table

Specification

X - Flexible Termination

Capacitance Code, pF

First two digits represent significant figures.

Third digit specifies number of zeros. 100 pF = 101.

(Use “9” for 1.0 through 9.9 pF)

Capacitance Tolerance

K = ±10%; M = ±20%; J = ±5%

End Metallization

C = Standard (Tin-plate)

Failure Rate Level

A = Not Applicable

Temperature Characteristic

Designated by Capacitance

Change over Temperature Range

R – X7R (±15%) (-55°C +125°C)

Voltage

9 = 6.3V, 8 = 10V, 4 = 16V, 3 = 25V,

5 = 50V, 1 = 100V, 2 = 200V

0603

224

F3281 5/07

Recommended Resources

Do you know about automotive-grade 3D Hall effect sensor IC?

Bidirectional current source circuit

transistor high speed switching

3V boost to 6V current expansion circuit diagram

800W triac dimming circuit

Using power line to transmit alarm signal receiving circuit

C0603X271J4RAC Similar Products

Part Number	Manufacturer	Description
C0603X271J4RALAUTO	KEMET(基美)	CAPACITOR, CERAMIC, MULTILAYER, 16V, X7R, 0.00027uF, SURFACE MOUNT, 0603, CHIP
0603B271J160CR	Walsin_Technology_Corporation	Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.00027uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
