Proven Quality, Reliability & Expertise
ITT’s Cannon brand is a leading global manufacturer of connector
products serving international customers in the aerospace and defense,
medical, energy, transportation and industrial end markets.
Whether delivering critical specs to aircraft pilots, streaming data through
communications satellites or giving expectant parents a first look at their
unborn children, Cannon connects the world’s most important information
to the people who need it.
About ITT
In 2015, Cannon celebrated 100 years that helped
make history.
Cannon products were used in the first
“talking” movies and helped transmit the first messages
home from the moon. Today we proudly continue our
legacy of innovating to connect the world and inspire the
successes of the next century –
because amazing things
happen when great things connect.
ITT is a diversified leading manufacturer of highly engineered
critical components and customized technology solutions for
the energy, transportation and industrial markets. Building on
its heritage of innovation, ITT partners with its customers to
deliver enduring solutions to the key industries that underpin
our modern way of life.
Founded in 1920, ITT is headquartered in White Plains, N.Y.,
with employees in more than 35 countries and sales in a total
of approximately 125 countries. For more information, visit
www.itt.com.
Dimensions shown in mm
Specifications and dimensions subject to change
2
www.ittcannon.com

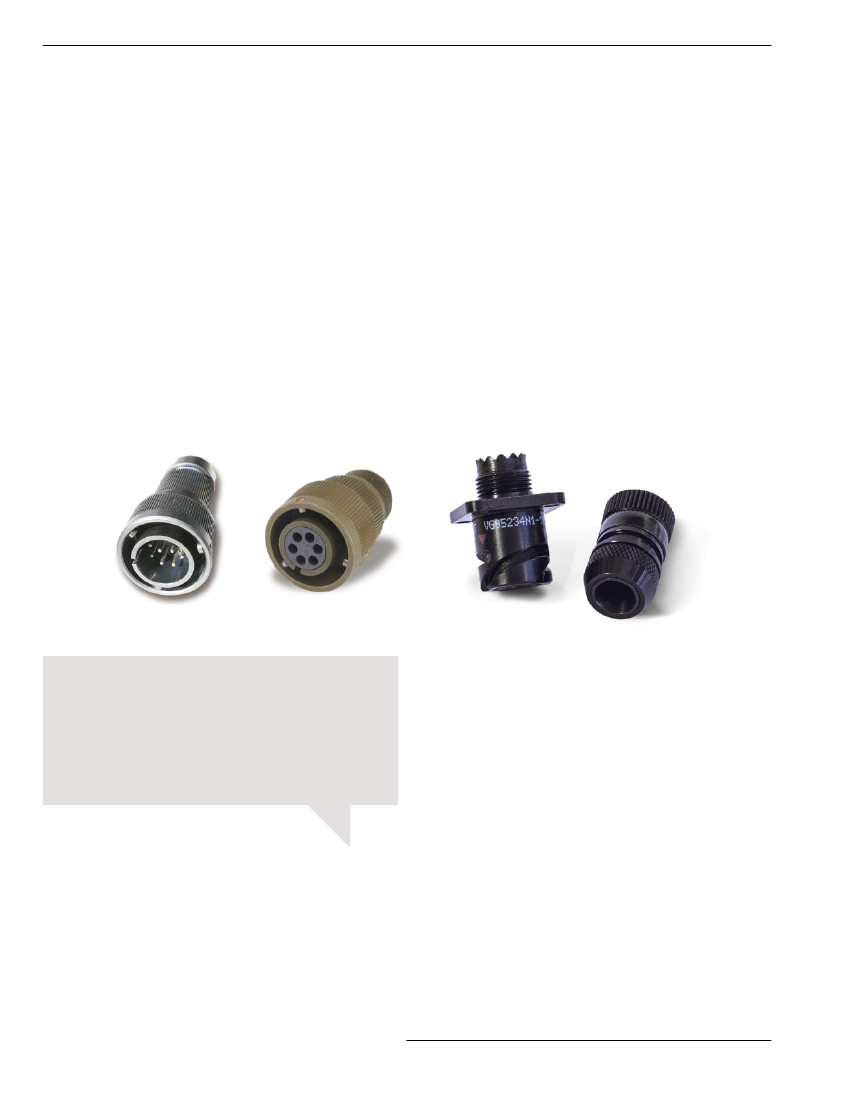

Introduction to CAB/VG95234
Cannon CA Bayonet series was designed in accordance with the VG95234
specification. This versatile and highly reliable connector series is an
improvement on the well established MIL-C-5015 series. CA-Bayonet
has a proven “reverse bayonet” coupling design that offers exceptional
vibration protection, by a simple 120° turn.
Initially designed for aircraft and airborne applications, these rugged
connectors are used in the electrical equipment of various off-road
vehicles, construction machinery, industrial devices, railroad and
military vehicles.
VG & commercial offering
- Connector offering according VG95234 standard – fully
approved VG portfolio as required for military applications
- Extended offering of additional connector versions and endbell
solutions for typical industrial applications
Contact offering
- Contacts provide at least 500 mating cycles
- Contacts available as crimp, solder or PCB versions
- Gold plated contacts available for low current applications
- Crimp and assembly tooling available for all contact sizes
Environmental protection
-
Cadmium as standard, high performance plating 500h salt
spray, highly conductive
- Cadmium & ChromVI free alternatives for RoHS applications
> ZnNi Blue grey A240 plating for 500h salt spray resistance
and highly conductive
> ZnCo Black A232 plating, for 200h salt spray resistance,
conductive
> ZnCo Green A233 plating, for 200h salt spray resistance and
highly conductive
> ZnCo Black A239 plating, VG approved military plating, 48h salt
spray and highly conductive
- IP67 pressure water & IP69k water jet sealing
Insulators / grommets
- Made of high quality polychloroprene for temperature range
-55/125°C (-67/+257°F)
- Material is self-extinguishing
- Resistant against hydraulic fluids, jet fuel, diesel fuel, gasoline,
lubricants, brake and fire extinguisher fluids
Advantages
– rugged shell design
– waterproof up to IP68, (10 meters / 35 feet or 1 bar for 16 h)
and IP69k (water jet)
– environmental protection
– bayonet coupling for easy mating and unmating
– vibration proof
Cannon has the complete VG95234 program available and,
in addition, many other types which exceed the requirements
of VG95234 and MIL-C-5015.
Attention
Metal shell connectors which may be accessed are not suitable
for mains power.
Connector Design & Features
Robust design
- Rugged aluminium shell for most severe conditions
- Bayonet coupling with rigid stainless steel roller bolts for fast
and reliable mating (min. 500 cycles)
- An audible sound and a colour-marked snap-in position ensure
additional coupling security
Contact arrangements & accessories
- Over 140 arrangements and 12 connector sizes available for 1
to 65 circuits
- Wide selection of end bells for individual wires & jacketed cables
- Choice of accessories e.g. seals, gaskets, dust caps, wire hole
fillers
Dimensions shown in mm
Specifications and dimensions subject to change
4
www.ittcannon.com
