826539-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 826539-1

826539-1: Description1 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector; File Size63KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

826539-1 Overview

1 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

826539-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	AMPMODU
body width	0.252 inch
subject depth	0.118 inch
body length	0.13 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1200VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	826539
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	31u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.134 inch
Termination type	SOLDER
Total number of contacts	1
UL Flammability Code	94V-0
Base Number Matches	1

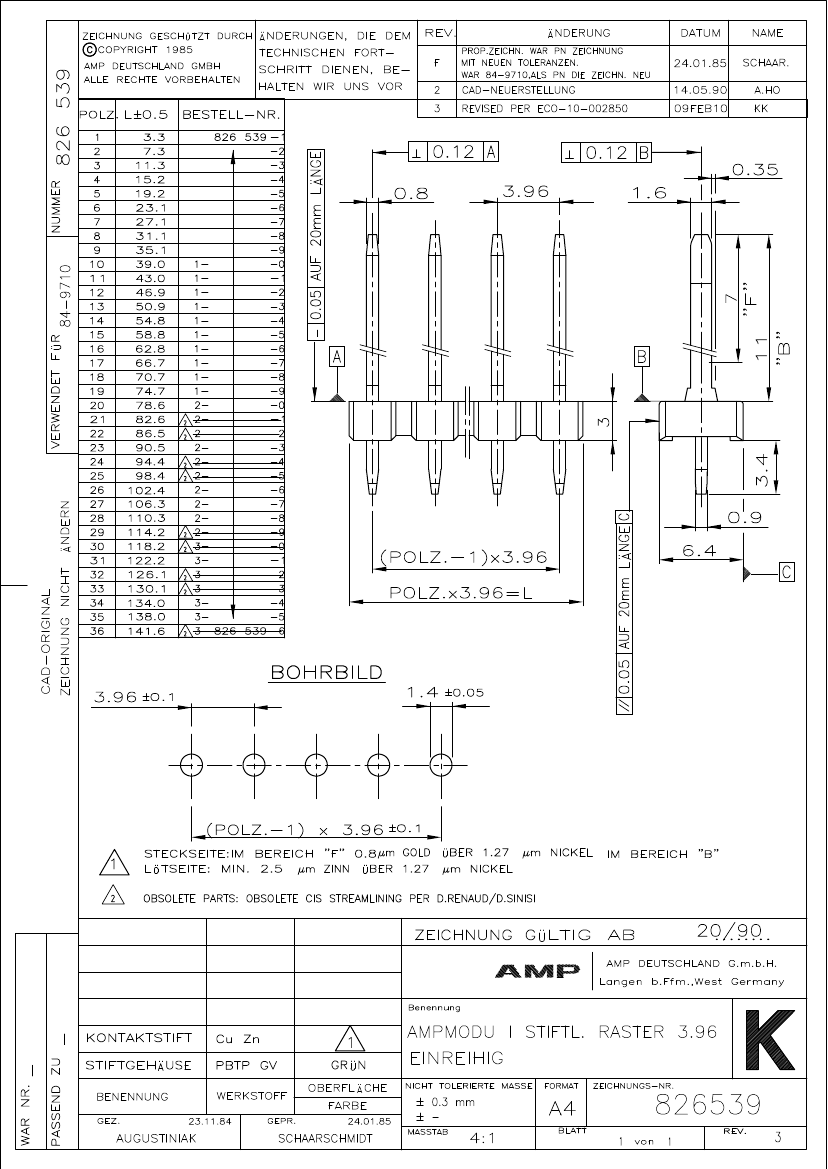

Preview

Download Datasheet

View All

826539-1 Related Products

	826539-1	826539-3	826539-9	RM242-090-881-8831	RM242-090-882-8839	RM242-090-891-8968	RM242-090-912-9128
Description	1 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	3 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Solder Terminal, Hole .099-.111, Plug	Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Solder Terminal, Hole .099-.111, Plug	Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Solder Terminal, Hole .099-.111, Plug	Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.075 inch Pitch, Solder Lug Terminal, Hole .099-.111, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	conform to	incompatible
Reach Compliance Code	unknown	compli	unknown	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.252 inch	0.252 inch	0.252 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.118 inch	0.118 inch	0.118 inch	0.585 inch	0.585 inch	0.585 inch	0.585 inch
body length	0.13 inch	0.445 inch	1.382 inch	4.137 inch	4.137 inch	4.137 inch	4.137 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	NOT SPECIFIED	BRASS	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	YES	YES	YES	YES
Manufacturer's serial number	826539	826539	826539	RM2	RM2	RM2	RM2
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	PANEL
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	2	2	2	2
Number of rows loaded	1	1	1	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	31u inch	31u inch	31u inch	50u inch	50u inch	50u inch	50u inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	MIL-C-55302	MIL-C-55302	MIL-C-55302	MIL-C-55302
Terminal length	0.134 inch	0.134 inch	0.134 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER LUG
Total number of contacts	1	3	9	90	90	90	90
Plug contact pitch	-	0.156 inch	0.156 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Is it lead-free?	-	-	-	Lead free	Contains lead	Lead free	Contains lead
Objectid	-	-	-	1151878504	1151878582	1150678912	1150679082
Country Of Origin	-	-	-	USA	USA	USA	USA
YTEOL	-	-	-	8.7	8.7	8.7	8.7
Contact completed and terminated	-	-	-	Gold (Au)	Tin/Lead (Sn/Pb)	Gold (Au)	Tin/Lead (Sn/Pb)
JESD-609 code	-	-	-	e4	e0	e4	e0
Match contact row spacing	-	-	-	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation option 1	-	-	-	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
polarization key	-	-	-	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED	DUAL POLARIZED
