15-82-1554: DescriptionCard Edge Connector, 100 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket; CategoryThe connector The connector; File Size293KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

15-82-1554 Overview

Card Edge Connector, 100 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Socket

15-82-1554 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.448 inch
body length	5.95 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	78968
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	0.1 mm
Plating thickness	200u inch
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Zero insertion force contacts improve socket and module

contact life and provide for fast on-line assembly

Guaranteed 2 points of contact per readout with standard

JEDEC module

Anti-overstress latch feature provides extra protection

during module removal

Polarization posts provide orientation for proper loading of

socket into printed circuit board

Polarization rib properly orients module to socket

EIA standard dimensions

Reference Information

Product Speciﬁcation: PS-78968

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With: JEDEC modules

Designed In: Inches

Electrical

Voltage: 250V

Current: 1.0A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 1000V AC

Insulation Resistance: 5000 M

Ω

min.

Mechanical

Normal Force: 1.47N average

Durability: 25 cycles

Physical

Housing: Black LCP, UL 94V-0

Latch: Stainless Steel

Contact: Phosphor Bronze Alloy

Plating: See Table

Operating Temperature: -40 to +85˚C

1.27mm (.050") Pitch

SIMM Socket

78968

Right Polarization

Right Angle, Single Row

Metal Latch

Sockets and Edge Connectors

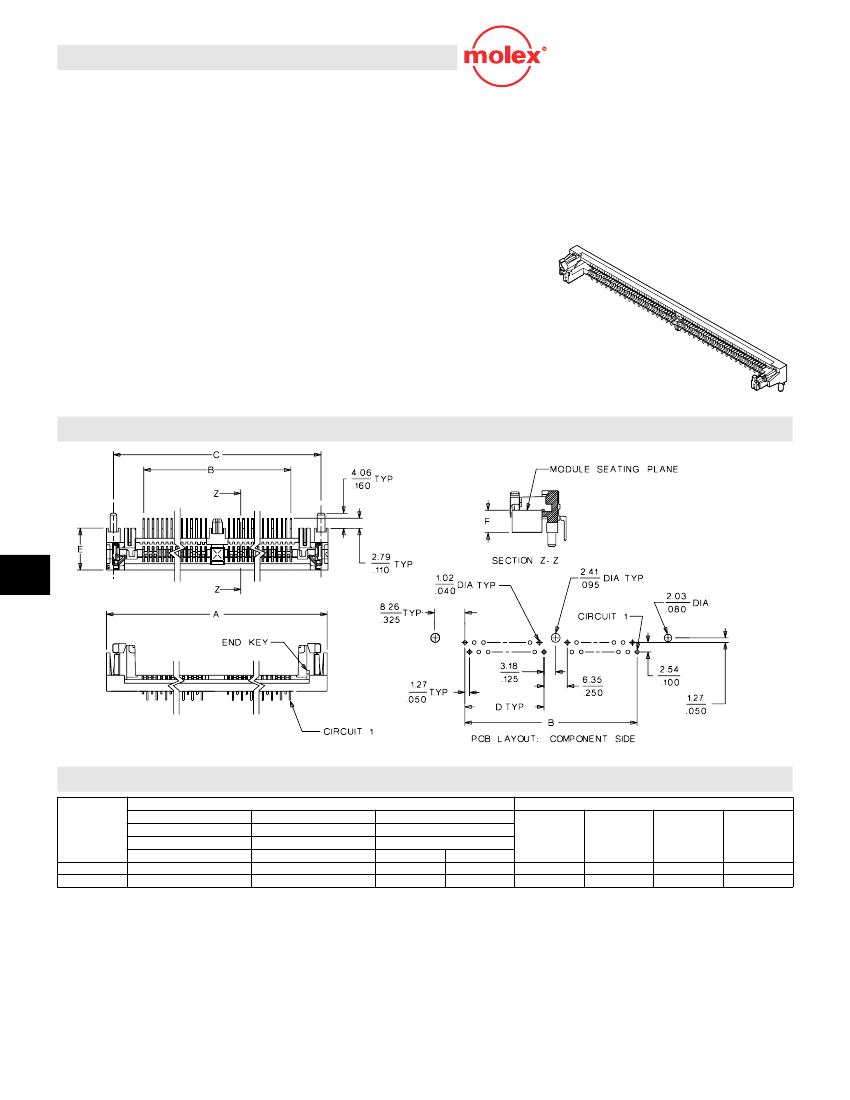

CATALOG DRAWING (FOR REFERENCE ONLY)

Polarization key location as viewed from module insertion side of SIMM socket

Circuit 1, polarization key and small post are located at the same end, whether right or left

Please refer to corresponding JEDEC standard MO-116 page for board dimensions and module PCB layout

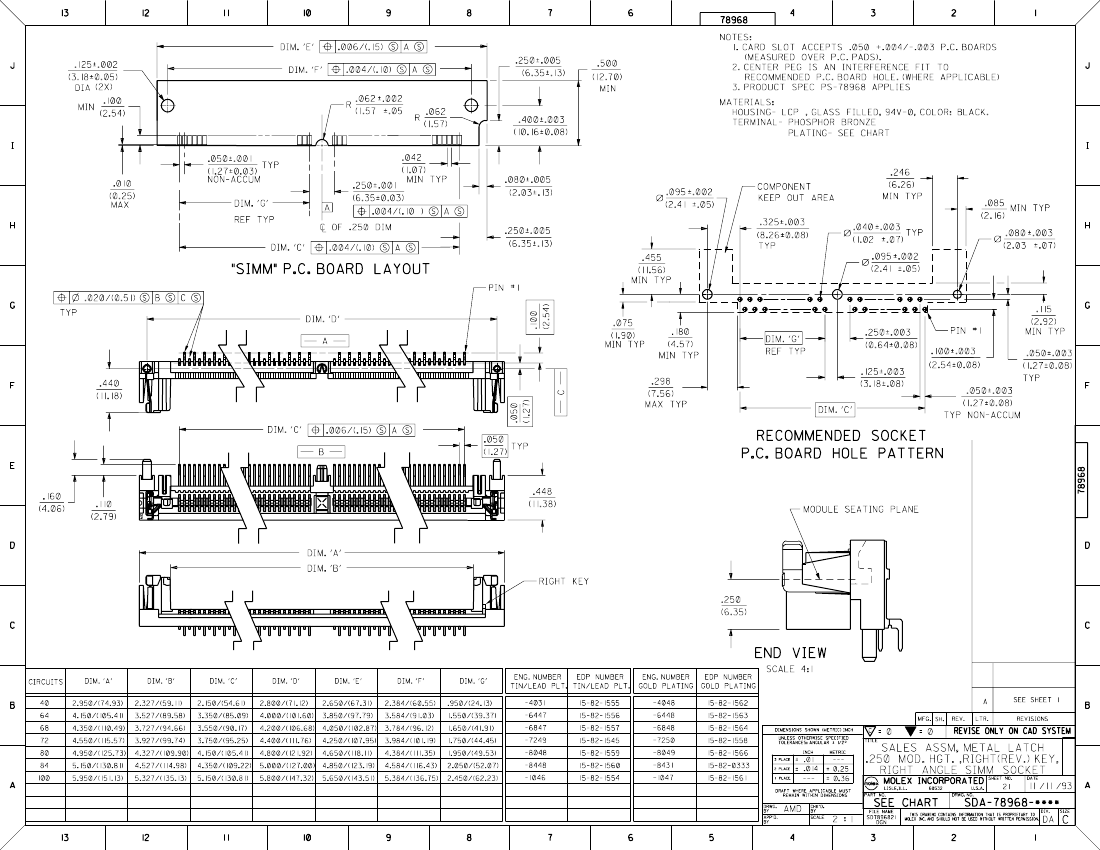

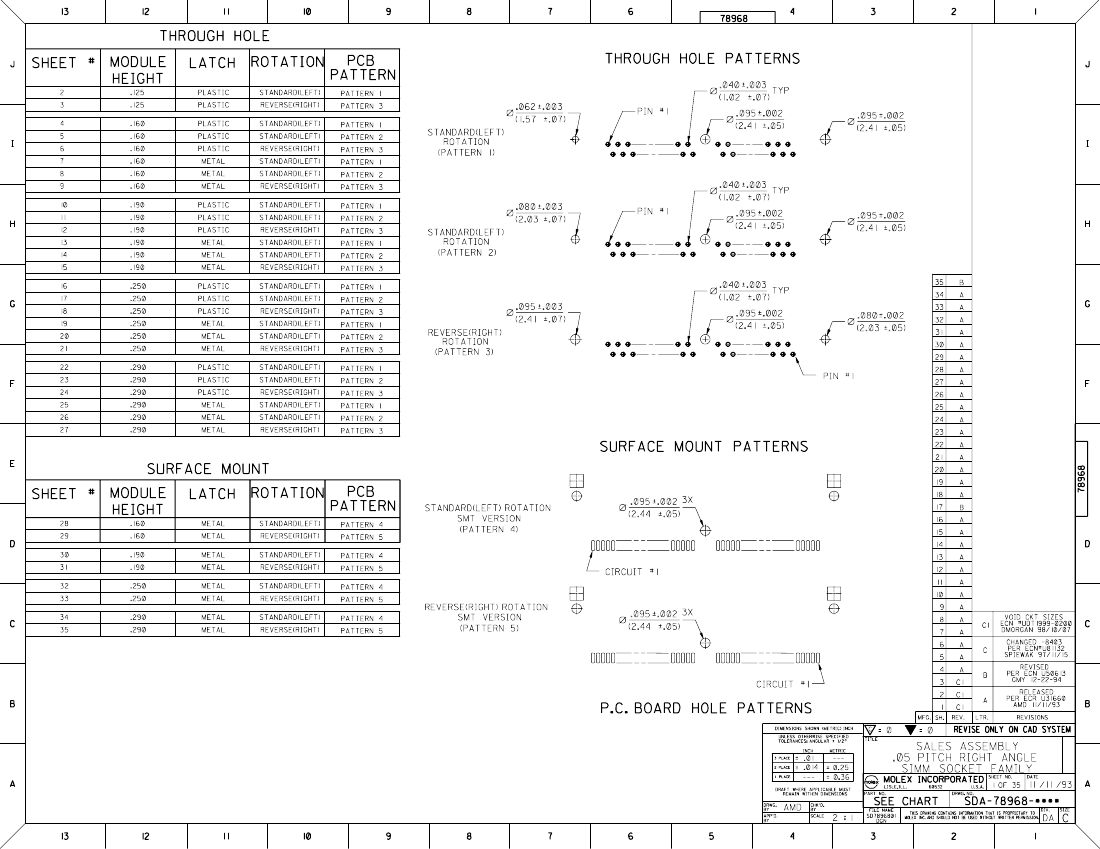

ORDERING INFORMATION AND DIMENSIONS

.160

F = 4.06mm (.160")

E = 9.09mm (.358")

Gold

15-82-1407

Order No.

.250

F = 6.35mm (.250")

E = 11.38mm (.448")

Tin

15-82-1556

Dimension

.290

F = 7.37mm (.290")

E = 12.40mm (.488")

Tin

Gold

15-82-1634

15-82-1641

Circuits

105.41 (4.150)

115.57 (4.550)

85.09 (3.350)

95.25 (3.750)

101.60 (4.000)

111.76 (4.400)

39.37 (1.550)

44.45 (1.750)

Plating: Post plate 200

" min. Tin/Lead over 50

" min. Nickel overall or post plate 30

" min. Gold on contact area

and 150

" min. Tin/Lead on solder tails, all over 75

" min. Nickel

L-30

MX01
