UMZ16KFHTL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> UMZ16KFHTL

UMZ16KFHTL: DescriptionZener Diodes 15.85-16.51V 200mW SOT-343 5mA; CategoryDiscrete semiconductor diode; File Size2MB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

UMZ16KFHTL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UMZ16KFHTL	-	-	View	Buy Now

UMZ16KFHTL Overview

Zener Diodes 15.85-16.51V 200mW SOT-343 5mA

UMZ16KFHTL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-G4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G4
Number of components	2
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.2 W
Guideline	AEC-Q101
Nominal reference voltage	16 V
Maximum reverse current	0.1 µA
Reverse test voltage	12 V
surface mount	YES
technology	ZENER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2%
Working test current	5 mA

Preview

Download Datasheet

View All

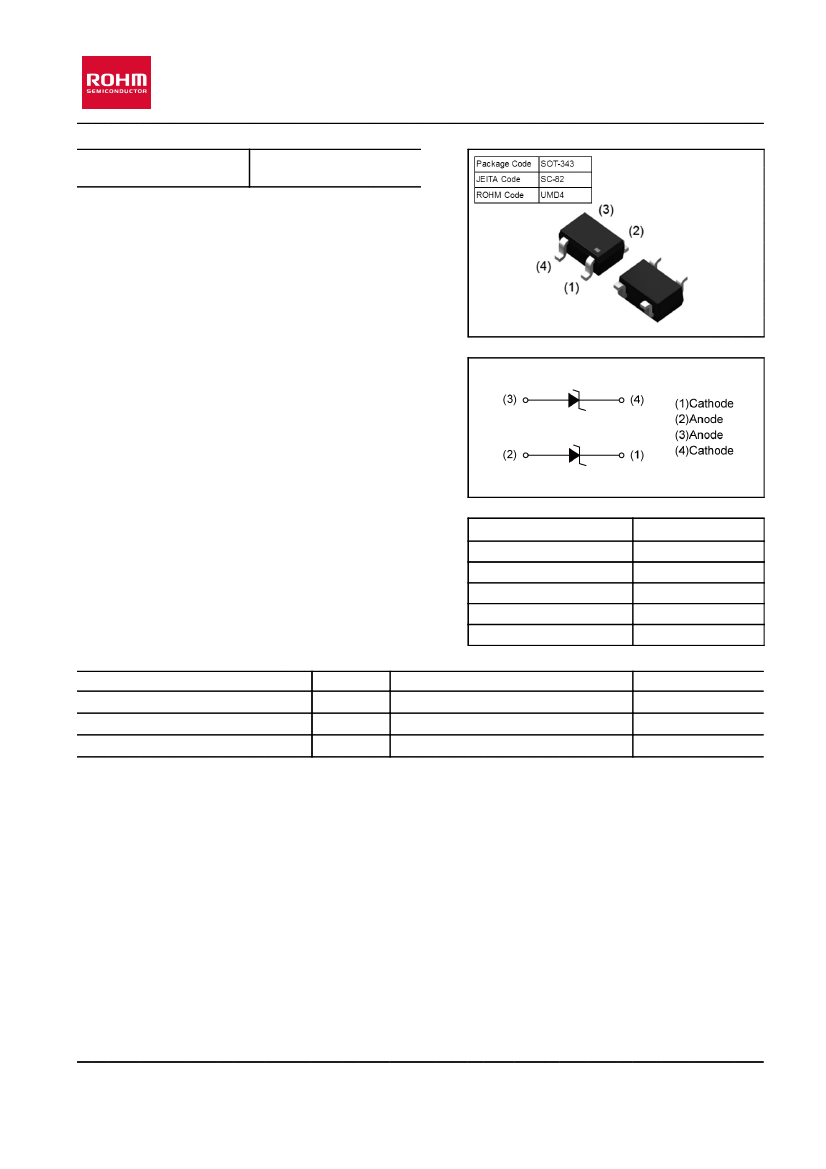

UMZ16KFH

Zener Diode

(AEC-Q101 qualified)

Data sheet

●

Outline

200

●

Feature

High reliability

Small mold type

●

Application

Voltage regulation

●

Structure

Silicon Epitaxial Planar

●

Absolute Maximum Rating (T

= 25

℃

)

ew om

es en

ig de

ns d

●

Inner Circuit

●

Packaging Specification

Packing

Reel Size(mm)

aping Width(mm)

Basic Ordering Unit(pcs)

aping Code

Marking

Parameter

Symbol

stg

Limits

Power dissipation

Junction temperature

Storage temperature

200

150

-55

150

www.rohm.com

1/6

Unit

℃

Embossed T

ape

180

3000

2017/01/12_Rev.002
