BR25H160FJ-2CE2 datasheet, PDF

Datasheet> All Categories > storage> storage> BR25H160FJ-2CE2

BR25H160FJ-2CE2: DescriptionEEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V; Categorystorage storage; File Size1MB，36 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR25H160FJ-2CE2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BR25H160FJ-2CE2	-	-	View	Buy Now

BR25H160FJ-2CE2 Overview

EEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V

BR25H160FJ-2CE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SOP-8
Reach Compliance Code	compliant
Factory Lead Time	16 weeks
Other features	ALSO OPERATES AT 2.5V WITH 5MHZ AND SEATED HT-CALCULATED
Maximum clock frequency (fCLK)	10 MHz
Data retention time - minimum	100
Durability	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
length	4.9 mm
memory density	16384 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	2048 words
character code	2000
Operating mode	SYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
organize	2KX8
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
Filter level	AEC-Q100
Maximum seat height	1.65 mm
Serial bus type	SPI
Maximum standby current	0.00001 A
Maximum slew rate	0.004 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
Maximum write cycle time (tWC)	4 ms
write protect	HARDWARE/SOFTWARE
Base Number Matches	1

Preview

Download Datasheet

View All

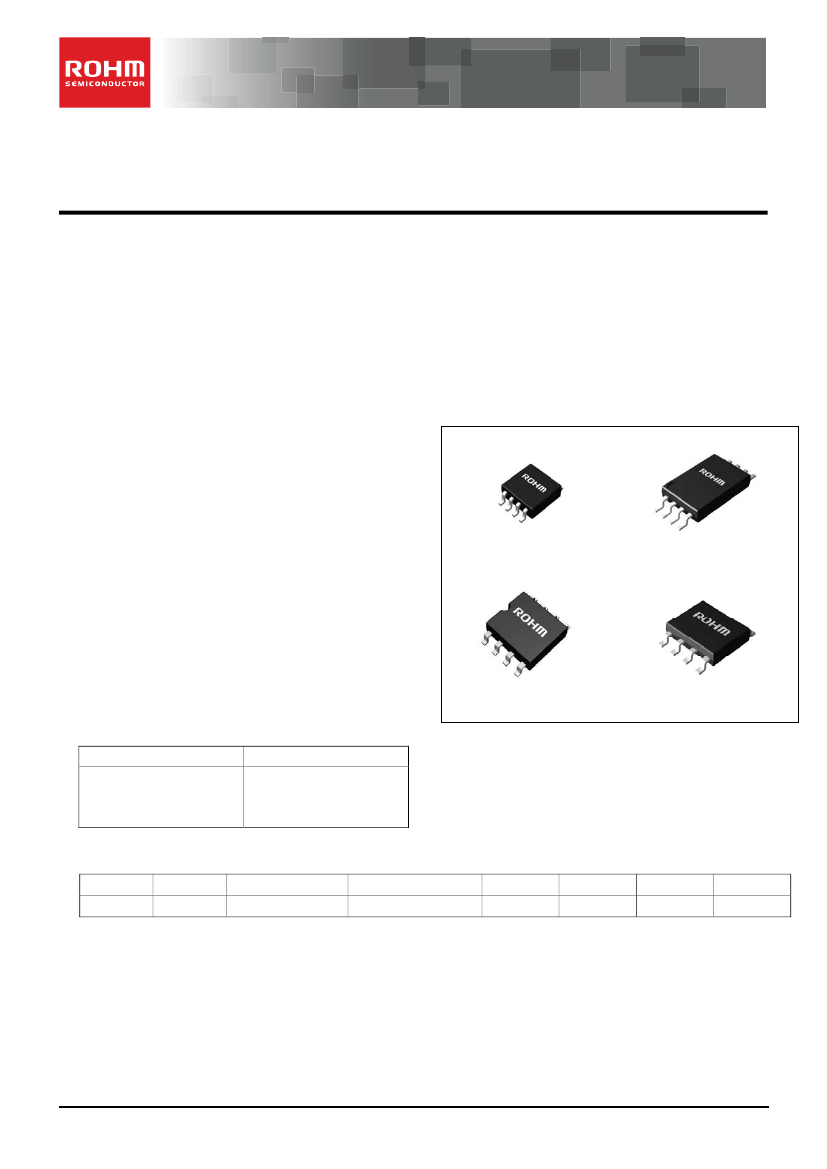

Datasheet

Serial EEPROM Series Automotive EEPROM

125℃ Operation SPI BUS EEPROM

BR25H160-2C

●General

Description

BR25H160-2C is a serial EEPROM of SPI BUS interface method.

●Features

High speed clock action up to 10MHz (Max.)

Wait function by HOLDB terminal.

Part or whole of memory arrays settable as read only

memory area by program.

2.5V to 5.5V single power source action most

suitable

for battery use.

Page write mode useful for initial value write at

factory shipment.

For SPI bus interface (CPOL, CPHA)=(0, 0), (1, 1)

Self-timed programming cycle.

Low Supply Current

: 1.0mA (Typ.)

At write operation (5V)

: 1.0mA (Typ.)

At read operation (5V)

At standby operation (5V)

: 0.1μA (Typ.)

Address auto increment function at read operation

Prevention of write mistake

Write prohibition at power on.

Write prohibition by command code (WRDI).

Write prohibition by WPB pin.

Write prohibition block setting by status registers

(BP1, BP0).

Prevention of write mistake at low voltage.

MSOP8, TSSOP-B8, SOP8, SOP-J8 Package

Data at shipment Memory array: FFh, status register

WPEN, BP1, BP0 : 0

More than 100 years data retention.

More than 1 million write cycles.

AEC-Q100 Qualified.

●Package

MSOP8

2.90mm x 4.00mm x 0.90mm

TSSOP-B8

3.00mm x 6.40mm x 1.20mm

SOP8

5.00mm x 6.20mm x 1.71mm

●Page

write

Number of pages

Product number

SOP-J8

4.90mm x 6.00mm x 1.65mm

32 Byte

BR25H160-2C

●BR25H160-2C

Capacity

Bit Format

16Kbit

2Kx8

Product Number

BR25H160-2C

Supply Voltage

2.5V to 5.5V

MSOP8

●

TSSOP-B8

●

SOP8

●

SOP-J8

●

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product is not designed protection against radioactive rays

1/32

TSZ02201-0R1R0G100110-1-2

23.Aug.2013 Rev.002

BR25H160FJ-2CE2 Related Products

	BR25H160FJ-2CE2	BR25H160FVM-2CTR	BR25H160F-2CE2	BR25H160FVT-2CE2
Description	EEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V	EEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V	EEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V	EEPROM SPI BUS 10MHz 16Kbit 2.5-5.5V
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SOP-8	MSOP-8	SOP-8	TSSOP-8
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	ALSO OPERATES AT 2.5V WITH 5MHZ AND SEATED HT-CALCULATED	ALSO OPERATES AT 2.5V WITH 5MHZ	ALSO OPERATES AT 2.5V WITH 5MHZ AND SEATED HT-CALCULATED	ALSO OPERATES AT 2.5V WITH 5MHZ
Maximum clock frequency (fCLK)	10 MHz	10 MHz	10 MHz	10 MHz
Data retention time - minimum	100	100	100	100
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	2.9 mm	5 mm	4.4 mm
memory density	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
word count	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	2KX8	2KX8	2KX8	2KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	VSSOP	SOP	TSSOP
Encapsulate equivalent code	SOP8,.25	TSSOP8,.16	SOP8,.25	TSSOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	AEC-Q100	AEC-Q100	AEC-Q100	AEC-Q100
Maximum seat height	1.65 mm	0.9 mm	1.71 mm	1.2 mm
Serial bus type	SPI	SPI	SPI	SPI
Maximum standby current	0.00001 A	0.00001 A	0.00001 A	0.00001 A
Maximum slew rate	0.004 mA	0.004 mA	0.004 mA	0.004 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	3.9 mm	2.8 mm	4.4 mm	3 mm
Maximum write cycle time (tWC)	4 ms	4 ms	4 ms	4 ms
write protect	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE
Base Number Matches	1	1	1	1
