UMBER
TYPE
GS-12-0990
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
1 of 11
B
DATE
Cat 3 Ganged Multi-Ports Jack Assemblies
AUTHORIZED BY
Andy Zhang
CLASSIFICATION
12/13/11
UNRESTRICTED
1.0 OBJECTIVE
This specification defines the performance, test and reliability requirements of
RJ45 series connector.

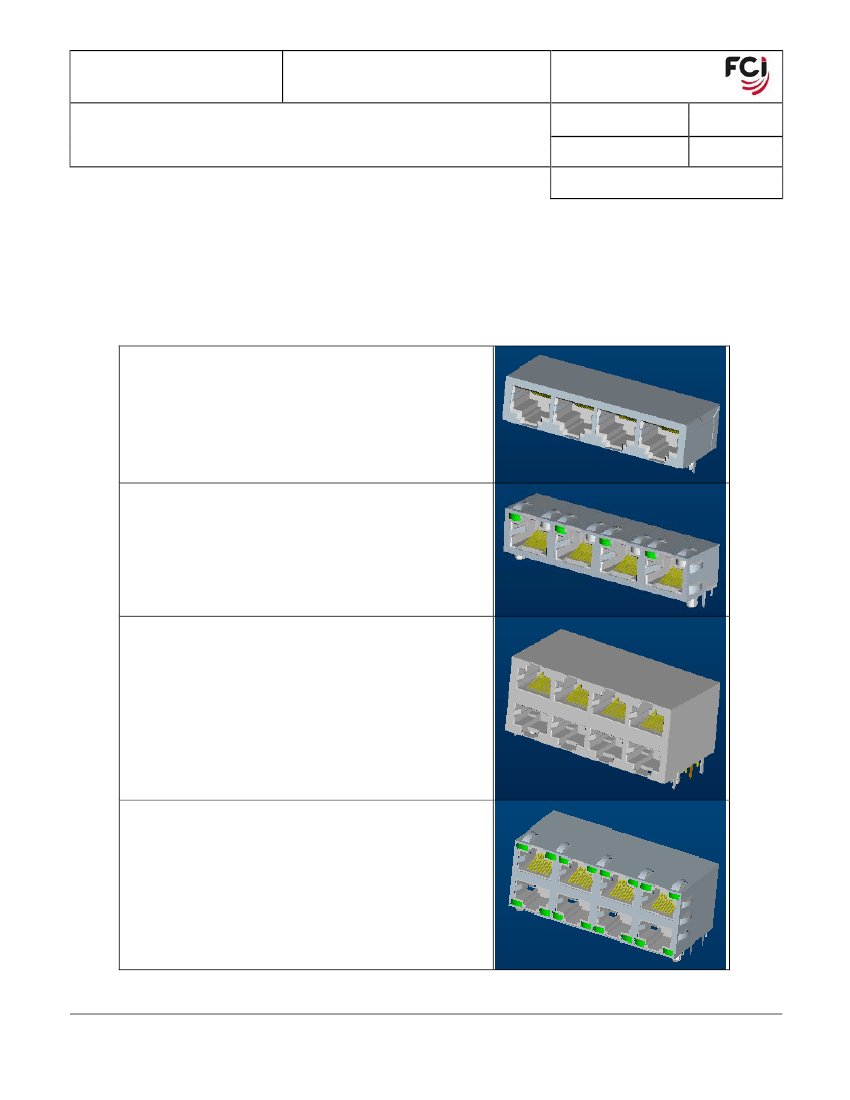

Ganged Multi-ports without LED
(10118061,10118062,10118063,10118064,
10118065)
Ganged Multi-ports with LED
(10118066,10118067,10118068)
Stacked Multi-ports without LED
(10118069,10118070,10118071,10118072,
10118073,10118074)
Stacked Multi-ports with LED
(10118075,10118076,10118077,10118078)
PDS:
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on
Printed: Dec
in any way or
Rev :B
STATUS:Released
14, 2011
the document may be used
disclosed to others without the written consent of FCI.
Copyright
Form E-3005
Rev F
FCI.
GS-01-001
UMBER
TYPE
GS-12-0990
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
2 of 11
B
DATE
Cat 3 Ganged Multi-Ports Jack Assemblies
AUTHORIZED BY
Andy Zhang
CLASSIFICATION
12/13/11
UNRESTRICTED

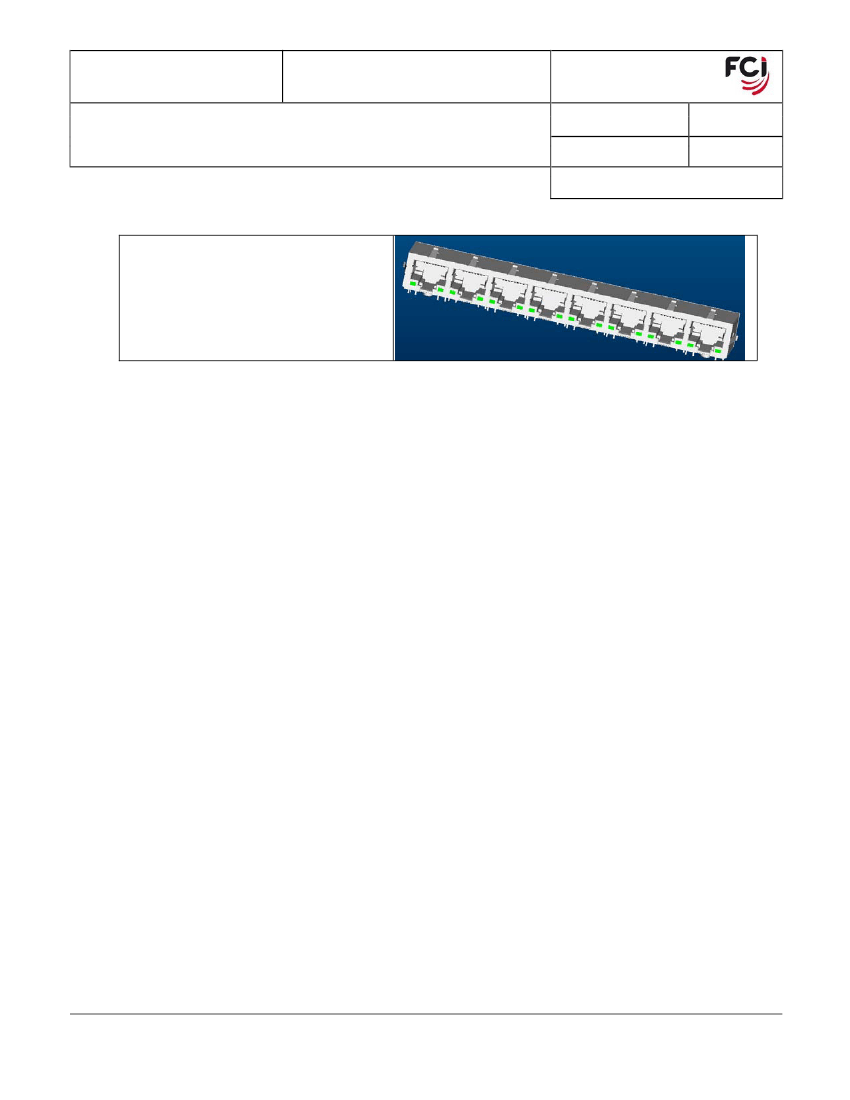

Ganged Multi-ports with LED
(10113616)
2.0 SCOPE
This specification is applicable to RJ45 series connector. The standard operating
temperatures for this product is
-40ºC to 85ºC.
3.0 CONNECTOR SPECIFICATION
3-1
Connector shape, dimensions and PCB layout are shown on the customer
drawings.
3-2
Packaging condition is shown on package specification.
3-3
RoHS Compliance per EU Directive 2002/95/EC
3-4
Plastic Housings:
A. Main Housing: High Thermoplastic UL94V-0, Black.
3-5
Terminals:
A. RJ Contacts: Copper Alloy.
B. RJ Solder Pins: Copper Alloy.
C. LED Solder Pins: Steel. ( LED by customer request)
3-6
Shields:
A. Shield: Copper Alloy.
PDS:
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on
Printed: Dec
in any way or
Rev :B
STATUS:Released
14, 2011
the document may be used
disclosed to others without the written consent of FCI.
Copyright
Form E-3005
Rev F
FCI.
GS-01-001
UMBER
TYPE
GS-12-0990
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
3 of 11
B
DATE
Cat 3 Ganged Multi-Ports Jack Assemblies
AUTHORIZED BY
Andy Zhang
CLASSIFICATION
12/13/11
UNRESTRICTED
3-7
Plating:
A. RJ Contacts: As P/N specified.
B. RJ Solder Pins: 1u” gold over 50u” Nickel under-plating
C. LED Solder Pins: 100u” min. Bright Tin
or matte Tin
over 50u”
Nickel under-plating (LED by customer request)
D. Shield: 20u” Nickel over all.
4.0
OPERATING & TEST REQUIREMENTS
Product is designed to meet electrical, mechanical and environmental performance
requirements specified below. All tests are performed at ambient environmental
conditions per MIL-STD-1344A and EIA-364 unless otherwise specified.
4.1
4.2
4.3
4.4
4.5
Operating Temperature Range:
-40
Storage Temperature: -40
Voltage : 150 volts AC.
Current : 1 Amps.
Test requirements and procedure summary
to 85 .
TO +85 .
PDS:
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on
Printed: Dec
in any way or
Rev :B
STATUS:Released
14, 2011
the document may be used
disclosed to others without the written consent of FCI.
Copyright
Form E-3005
Rev F
FCI.
GS-01-001
UMBER
TYPE
GS-12-0990
TITLE
PRODUCT SPECIFICATION
PAGE
REVISION
4 of 11
B
DATE
Cat 3 Ganged Multi-Ports Jack Assemblies
AUTHORIZED BY
Andy Zhang
CLASSIFICATION
12/13/11
UNRESTRICTED
ELECTRICAL
Item
Low Level
Contact
4.5.1
Resistance
Test Condition
Mate subject connector with
compatible connector.
EIA-364-23
Apply 100±10% Volts DC between
adjacent contacts of mated connectors
for one minute.
EIA-364-21
For mated specimens, 2250VDC
between connected RJ interface
contacts and all PCB tails connected
together with shield. 1 mA cutoff
current, 500 Volts per second
maximum ramp.
EIA-364-20
Specification
40 mΩ max. initial
50 mΩ max. final
4.5.2
Insulation
Resistance
1000 MΩ min initial
50 MΩ min final
Dielectric
4.5.3 Withstanding
Voltage
No discharge,
flashover or breakdown
for 1 min.
Current leakage: 1 mA
max.
Mate connector:
measure the
temperature rise at
rated current until
temperature stable.
The ambient condition
is still air.(EIA-364-70)
Specification
Un-mating force:
unlocked: 9.8N max.
locked: 89N min.
Mating force: 22N max.
4.5.4
Temperature
Rise
30
Max. Change allowed
MECHANICAL
Item
Test Condition
Un-mating
Measure force necessary to un-mate
Force
4.5.5
connectors using the free floating
(with locked &
fixtures at rate of 25mm/min.
unlocked)
Measured with latch depressed.
4.5.6 Mating Force
EIA-364-13
