28S147-103N5-gn datasheet, PDF

Datasheet> All Categories > The connector> The connector> 28S147-103N5-gn

28S147-103N5-gn: DescriptionRF Connectors / Coaxial Connectors STRAIGHT PLUG; CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

28S147-103N5-gn Overview

RF Connectors / Coaxial Connectors STRAIGHT PLUG

28S147-103N5-gn Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLE: RG 316 /U-D, INSERTION LOSS AND VSWR MAX AT: 6 GHZ
subject depth	0.961 inch
Body diameter	0.413 inch
Body/casing type	PLUG
Cable type	RG-316/U
Characteristic impedance	50 Ω
Connector type	RF QMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	23.5744 N
Insertion loss	0.12 dB
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	28S147-103N5
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.12
Base Number Matches	1

Preview

Download Datasheet

View All

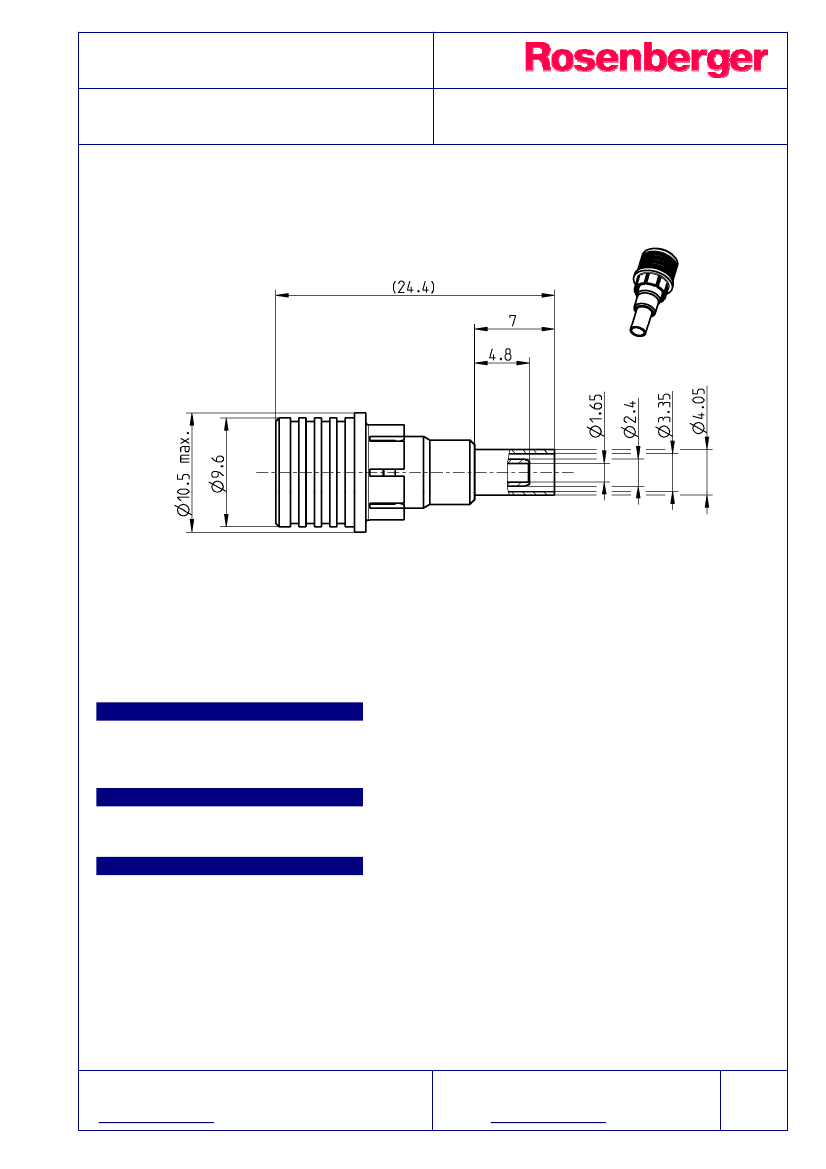

TECHNICAL DATA SHEET

QMA

STRAIGHT PLUG

28S147-103N5-YY *

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28S000-000, series QMA

Rosenberger is an authorised QLF manufacturer

Documents

Assembly instruction

28 E

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Crimping ferrule

Unlocking sleeve

Material

Brass

Spring bronze

Brass

PTFE

Copper

POM

Plating

AuroDur, gold plated

White bronze(e.g. Optalloy®)

Flash white bronze over silver(e.g. Optargen®)

available in different colours *

* The colour is defined in the part number by the colour code YY: bl=blue, gn=green, ro=red, sw=black

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2

28S147-103N5-gn Related Products

	28S147-103N5-gn	28S147-103N5-sw	28S147-103N5-ro	28S147-103N5-bl
Description	RF Connectors / Coaxial Connectors STRAIGHT PLUG	RF Connectors / Coaxial Connectors STRAIGHT PLUG	RF Connectors / Coaxial Connectors STRAIGHT PLUG	RF Connectors / Coaxial Connectors STRAIGHT PLUG
Maker	Rosenberger	Rosenberger	Rosenberger	Rosenberger
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	APPLICABLE CABLE: RG 316 /U-D, INSERTION LOSS AND VSWR MAX AT: 6 GHZ	APPLICABLE CABLE: RG 316 /U-D, INSERTION LOSS AND VSWR MAX AT: 6 GHZ	APPLICABLE CABLE: RG 316 /U-D, INSERTION LOSS AND VSWR MAX AT: 6 GHZ	APPLICABLE CABLE: RG 316 /U-D, INSERTION LOSS AND VSWR MAX AT: 6 GHZ
subject depth	0.961 inch	0.961 inch	0.961 inch	0.961 inch
Body diameter	0.413 inch	0.413 inch	0.413 inch	0.413 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Cable type	RG-316/U	RG-316/U	RG-316/U	RG-316/U
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE
Contact resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Contact style	COAX	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1050VAC V	1050VAC V	1050VAC V	1050VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	23.5744 N	23.5744 N	23.5744 N	23.5744 N
Insertion loss	0.12 dB	0.12 dB	0.12 dB	0.12 dB
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	BLACK	RED	BLUE
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	28S147-103N5	28S147-103N5	28S147-103N5	28S147-103N5
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRASS	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1
voltage standing wave ratio	1.12	1.12	1.12	1.12
Base Number Matches	1	1	1	1
ECCN code	-	EAR99	EAR99	EAR99
