LDL112
Datasheet
1.2 A low quiescent current LDO with reverse current protection
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Input voltage from 1.6 to 5.5 V
Very low-dropout voltage (300 mV typ. at 1 A load)
Low quiescent current (35 µA typ. at no-load, 1 µA max. in off mode)
Output voltage tolerance: ± 2.0% at 25 °C
1.2 A guaranteed output current
Wide range of output voltages available on request: 0.8 V to 5 V with 50 mV
step and adjustable
Logic-controlled electronic shutdown
Compatible with ceramic capacitor C
OUT
= 1 µF
Internal current and thermal limit
Available in DFN6 (2x2), DFN6 (3x3) mm, SO8-batwing and PPAK packages
Temperature range: -40 °C to 125 °C
Reverse current protection
Output discharge function (optional)
Applications
•
•
•
•
•
Consumer
Computer
Battery-powered systems
Low voltage point-of-load
USB-powered devices
Maturity status link
LDL112
Description
The
LDL112
is a low-dropout linear regulator, which can provide a maximum current
of 1.2 A, with a typical dropout voltage of 300 mV.
It is stabilized with a ceramic capacitor on the output.
The very low drop voltage, low quiescent current and reverse current protection
features make it suitable for low power battery-powered applications.
The enable logic control function puts the
LDL112
in shutdown mode allowing a total
current consumption lower than 1 µA.
The device is equipped with current limit and thermal protection.
DS10321
-
Rev 3
-
February 2019
For further information contact your local STMicroelectronics sales office.
www.st.com
LDL112
Pin configuration
2
Pin configuration

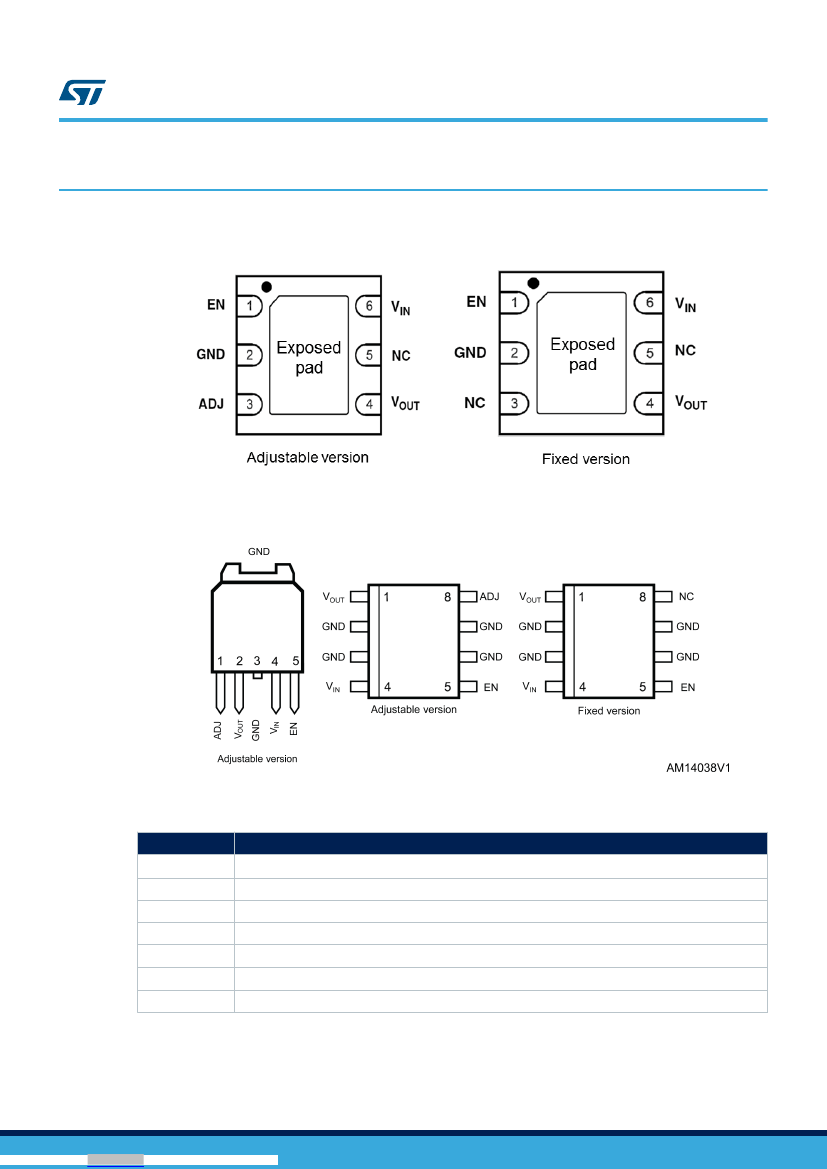

Figure 3.
Pin connection DFN6 (3x3) and DFN6 (2x2) (top view)
Figure 4.
Pin connection PPAK and SO8 (top view)
Table 1.
Pin description
Symbol
V
IN
GND
EN
ADJ
V
OUT
Exposed pad
NC
Function
LDO input voltage
Common ground
Enable pin logic input: low = shutdown, high = active. Don't leave this pin floating
Adjustable pin (on adjustable version)
LDO output voltage
Must be connected to GND
Not connected
DS10321
-
Rev 3
page 3/32
LDL112
Maximum ratings
4
Maximum ratings
Table 2.
Absolute maximum ratings
Symbol
V
IN
V
OUT
V
EN
V
ADJ
I
OUT
P
D
T
STG
T
OP
DC input voltage
DC output voltage
Enable input voltage
ADJ pin voltage
Output current
Power dissipation
Storage temperature range
Operating junction temperature range
Parameter
Value
- 0.3 to 7
- 0.3 to V
I
+ 0.3
- 0.3 to V
I
+ 0.3
2
Internally limited
Internally limited
- 65 to 150
- 40 to 125
Unit
V
V
V
V
mA
mW
°C
°C
Note:
Absolute maximum ratings are those values beyond which damage to the device may occur. Functional
operation under these conditions is not implied. All values are referred to GND.
Table 3.
Thermal data
Symbol
R
thJA
R
thJC
Parameter
Thermal resistance
junction-ambient
Thermal resistance
junction-case
DFN6 (3x3)
55
10
DFN6 (2x2)
65
15
SO8
55
(1)
20
PPAK
100
8
Unit
°C/W
°C/W
1. Considering 6 cm² of copper board heatsink.
DS10321
-
Rev 3
page 5/32
