Contents
Casing Type
New Products
LF-SF Series Three-Phase Type ...................................................................3
GT-SF Series Single-Phase Type..................................................................4
Metal box
LF Series Small Current Type .......................................................................5
LF Series Small Current Type with Screw Terminal ......................................6
LF Series Screw Terminal Type.....................................................................8
LF Series Large Current Type .....................................................................10
LF Series Three-Phase Type.......................................................................11
LF Series For Inverters ...............................................................................13
LF Series Three-Phase Terminal Block Type ..............................................16
LH Series Low-Frequency Inverters ...........................................................18
LH Series Three-Phase Terminal Block / High Attenuation Type ...............20
GT Series Screw Terminal ..........................................................................23
GT Series Faston Terminal .........................................................................25
GT Series For VCCI ....................................................................................27
GF Series ....................................................................................................28
Metal cylinder
VU Series ....................................................................................................29
VC Series ....................................................................................................31
VG-FPZ Series for inverter installed home appliances' surge control........32
RG Series ...................................................................................................33
Plastic box
MR Series ...................................................................................................35
MA Series ...................................................................................................37
Inlet Type
GL Series C Type ........................................................................................38
GL Series F, FV, FVP Type ..........................................................................40
GL Series H Type ........................................................................................42
GL Series M Type .......................................................................................44
TÜV Rheinland Japan Ltd. Certification Numbers .....................................45
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
9615NFSVOL14E1704E1

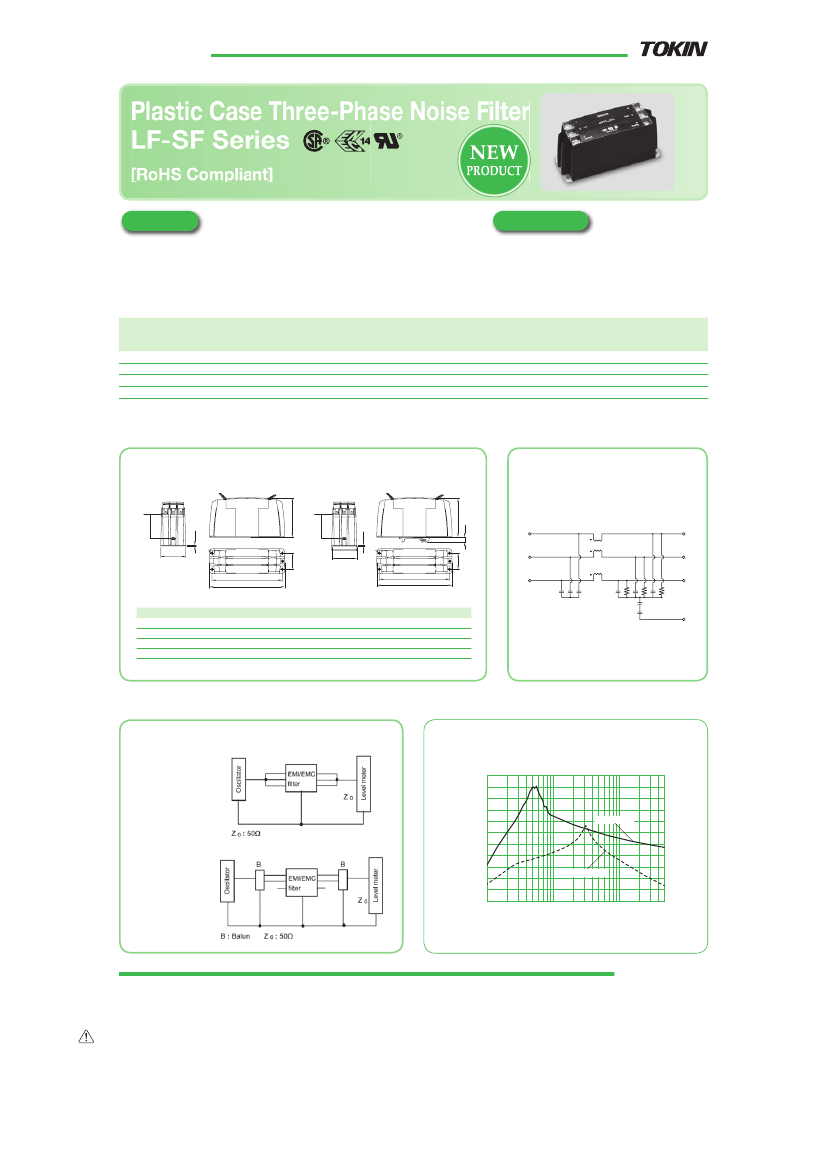

Casing Type
Plastic box
Plastic Case Three-Phase Noise Filter
LF-SF Series
[RoHS Compliant]
Features
P
Plastic shell of the product eliminates resin filling (weight reduction)
P
DIN rail installation types available
P
Featuring mechanism of self-jump-up to prevent loss of screw (easy to install)
P
Safety cover integrating contact terminal
Model
*1
Applications
P
Industrial equipment, machine tools
LF-3100SF-10/20
LF-3200SF-10/20
LF-3300SF-10/20
LF-3500SF-10/20
Operating
Withstanding Insulation resistance Leakage
Self-
Rated
Rated
2 sec.,
current
voltage
current
voltageground 500VDC 1 min., 480V/50Hz, temperature temperature
range
line to
line to ground
rise
AC/DC (V) AC/DC (A)
AC (V)
(M ) min.
(mA) max.
(K) max.
(°C)
520
10
2000
6000
1
50
-25~+100
520
20
2000
6000
1
50
-25~+100
520
30
2000
6000
1
50
-25~+100
520
50
2000
6000
1
50
-25~+100
Certified
standard
UL, CSA, ENEC14
UL, CSA, ENEC14
UL, CSA, ENEC14
UL, CSA, ENEC14
Weight
(g)
*2
520 /540
520 /540
520 /540
950 /960
*1 : Model names ending with "10" indicate normal types, and those ending with "20" indicate DIN rail types. *2 : Normal type / DIN rail type (DIN rails not included in the products)
Shape and Dimensions
Circuit Diagram
PLF-3**0SF-10
(Normal type)
J
PLF-3**0SF-20
(DIN rail type)
J
C
C
X
LINE
1
2
3
LOAD
4
5
6
H
G
B
1
2 LINE
3
E
A
4
LOAD 5
6
F
B
H
G
1
2 LINE
3
E
A
4
LOAD 5
6
F
*Recommended torque (N.m) max.
RLine
terminal (M4: 1.20, M5: 2.20)
REarth
terminal (M4: 1.20, M5: 2.20)
Model
Normal type 10,20,30A
Normal type 50A
DIN rail type 10,20,30A
DIN rail type 50A
A
150
177
150
177
B
50
65
50
65
C
78
84
78
84
E
140
162
140
162
F
32
44
32
44
G
4.3x5.5
5.3x6.5
4.3x5.5
5.3x6.5
H
1.5
1.5
1.5
1.5
J
M4
M5
M4
M5
X
9.7
9.7
[mm]
E
Measuring Circuit
Attenuation (Static Characteristics)
Representative example: 50A
110
100
90
80
70
60
50
40
30
20
10
0
0.1
0.5
Common mode
PCommon
mode
Insertion Loss (dB)
Normal mode
PNormal
mode
Frequency (MHz)
1.0
5.0
10
20 30
Noise Filters VOL.14
3
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
9615NFSVOL14E1704E1
Casing Type
Plastic box
Plastic Case Single-Phase Noise Filter
GT-SF Series
[RoHS Compliant]
Features
P
Plastic shell of the product eliminates resin filling (weight reduction)
P
DIN rail installation types available
P
Featuring mechanism of self-jump-up to prevent loss of screw (easy to install)
P
Safety cover integrating contact terminal
Model
GT-2060SF-10
GT-2100SF-10
GT-2160SF-10
GT-2200SF-10
Operating
Withstanding Insulation resistance Leakage
Self-
Rated
Rated
1 min.,
current
voltage
current
voltageground 500VDC 1 min., 250V/60Hz, temperature temperature
range
line to
line to ground
rise
AC/DC (V) AC/DC (A)
AC (V)
(M ) min.
(mA) max.
(K) max.
(°C)
250
6
1500
300
1
45
-25~+100
250
10
1500
300
1
45
-25~+100
250
16
1500
300
1
45
-25~+100
250
20
1500
300
1
45
-25~+100
Applications
P
Industrial equipment, electronic devices
Certified
standard
cCSAus,ENEC14
cCSAus,ENEC14
cCSAus,ENEC14
cCSAus,ENEC14
Weight
(g)
210
220
220
220
Shape and Dimensions
Earth connection:
M4 screw
Circuit Diagram
8.5
38
93
103
IN
1
E
3
51
3
4
1
30.7
φ4.4
2
10
2
75
4
*Recommended torque (N.m) max.
RLine
terminal (M4: 1.00)
REarth
terminal (M4: 1.00)
[mm]
Measuring Circuit
Attenuation (Static Characteristics)
Representative example: 20A
100
90
80
70
60
50
40
30
20
10
0
0.1
0.5
Common mode
Normal mode
PCommon
mode
PNormal
mode
Insertion Loss (dB)
Frequency (MHz)
1.0
5.0
10
20 30
Noise Filters VOL.14
4
●All specifications in this catalog and production status of products are subject to change without notice. Prior to the purchase, please contact TOKIN for updated product data.
●Please request for a specification sheet for detailed product data prior to the purchase.
●Before using the product in this catalog, please read "Precautions" and other safety precautions listed in the printed version catalog.
9615NFSVOL14E1704E1

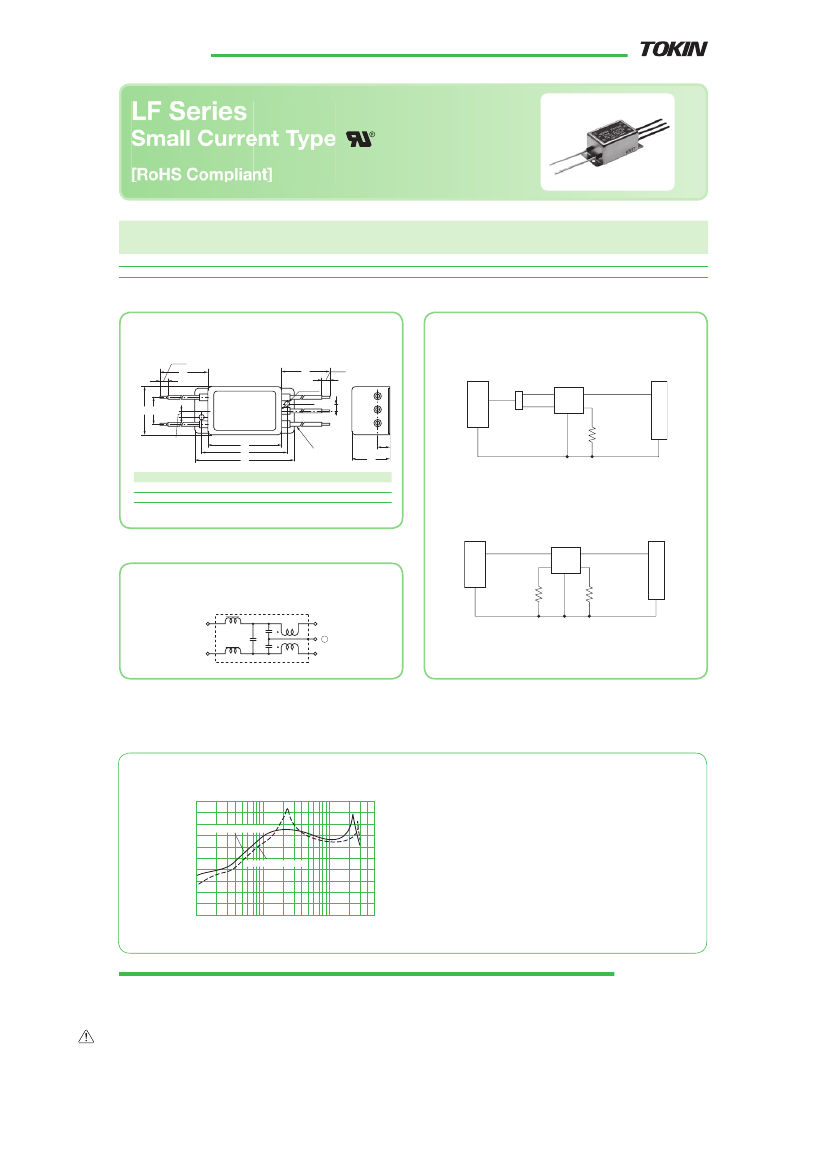

Casing Type
Metal box
LF Series
Small Current Type
[RoHS Compliant]
Rated
Rated
voltage
current
AC/DC (V) AC/DC (A)
250
250
2
2
Operating
Self-
Withstanding Insulation resistance Leakage
voltage 1 min.,
500VDC 1 min.,
current
temperature temperature
range
line to ground
line to ground
250V/60Hz,
rise
AC (V)
(M ) min.
(mA) max.
(K) max.
(°C)
Model
LF-202A
LF-202U-1
Certified
standard
UL
Weight
(g)
95
95
1500
1500
300
300
1
1
30
30
-20~+55
-20~+55
Shape and Dimensions
Measuring Circuit
bLF-202A,
LF-202U-1
10.0
A
G
2-3.5ø
Label
B
C
4.0
(White)
(White)
4.0
(Black)
(Black)
D
E
F
Lead wire
UL1015AWG#22
H
8.0
10.0
PCommon
mode
Oscillator
EMI/EMC
filter
P
Z0
Z0
Level meter
Level meter
(Green/Yellow)
Model
LF-202A
LF-202U-1
A
100
200
B
32
32
C
17
17
D
48
48
E
56
56
F
64
64
G
100
200
H
25
25
[mm]
P: Power divider
Z 0 : 50
PNormal
mode
Oscillator
EMI/EMC
filter
Z0
Z0
Z0
Circuit Diagram
PLF-200
Series
Z 0 : 50
E
IN
Attenuation (Static Characteristics)
100
Insertion Loss (dB)
80
LF-202A Common mode
60
LF-202A Normal mode
40
20
0
0.1
0.5
Frequency (MHz)
1.0
5.0
10
20 30
Noise Filters VOL.14
5
