MEGA BRIGHT LED
BTL-52WHC-XX-X
Product Features
Ultra Bright White Color
High Light Output

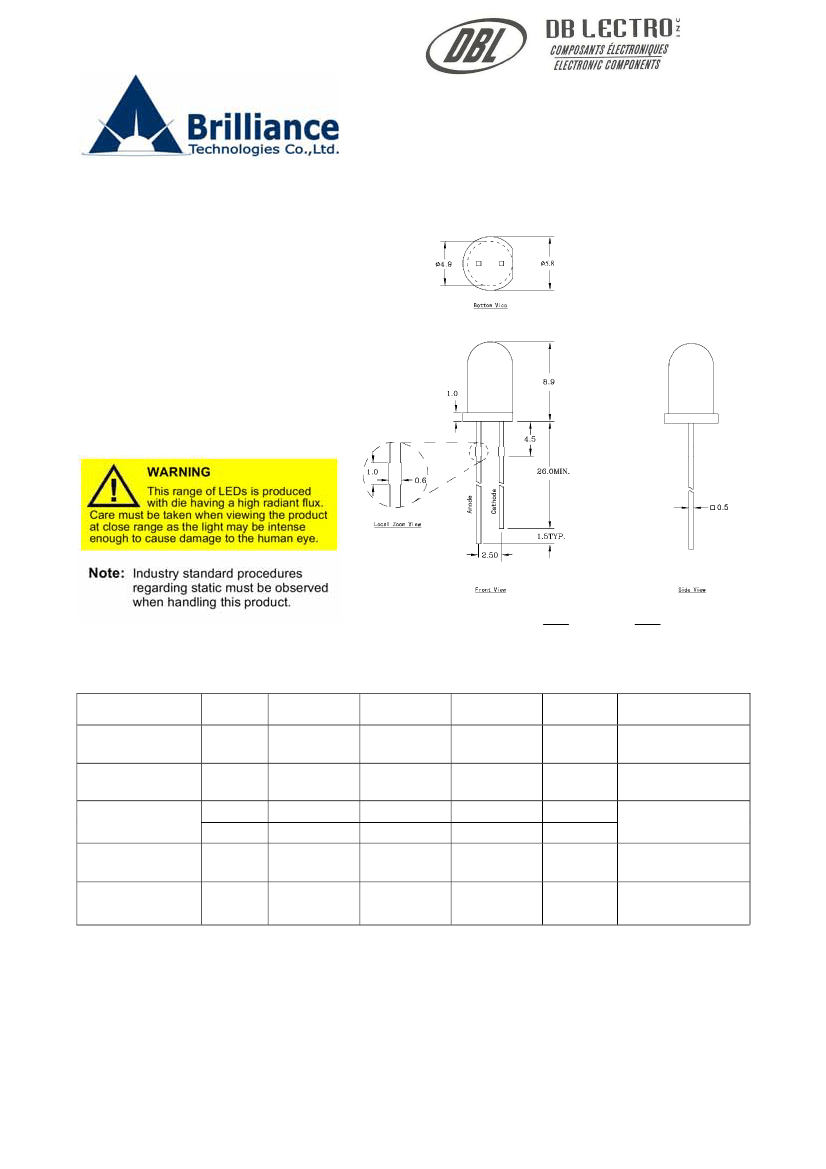

Package Dimension
5mm Diameter Circular Package
Water Clear Lens
Highly Reliable
IC Compatible
Leads without Stand Off
Applications
Automotive
Front Panel Indicator
Special Lighting
General Purpose LEDs
inch
Tolerance:
0.01
Unit:
±
mm
±
0.25
Optical and Electrical Characteristics at T
a
=25℃
Parameter
Luminous
Intensity
Viewing Angle
Color
Coordinates
DC Forward
Voltage
DC Reverse
Current
Symbol
I
v
2θ½
X
Y
V
F
I
R
Minimum
－
－
－
－
－
0
Typical
9000
30
0.34
0.33
3.5
－
Maximum
－
－
－
－
4.0
10
Units
mcd
deg
n/a
n/a
V
µA
Conditions
I
F
= 20mA
(Note 1)
I
F
= 20mA
I
F
= 20mA
(Note 2)
I
F
= 20mA
V
R
=5V
Notes:
1.
Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE
eye-response curve set by International Lighting committee.
Tolerance of minimum and maximum
intensity = ± 15%
2. Please select color coordinates range from the bin selection table. The parameters used fulfilled
the 1932 2 standard
3.
These products are sensitive to static electricity and care must be fully taken when handling
products
Page 1 of 3
MEGA BRIGHT LED
BTL-52WHC-XX-X
Absolute Maximum Ratings at T
a
=25℃
Symbol
P
D
V
R
I
F
I
FP
T
opr
T
stg
Power Rating
Reverse Voltage (I
R
=10µA)
Continuous Forward Current
Peak Forward Current (0.1 duty cycle @ 1kHz)
Operating Temperature Range
Storage Temperature Range
Parameter
Max.
100
5
30
100
–35 ~ + 80
–40 ~ + 100
Unit
mW
V
mA
mA
℃
℃
Lead Soldering Temperature [1.6mm (0.063inch) from body]
260℃ - max 5 seconds
Wavelength and Brightness Selection
BTL-52WHC-XX-X
Color Bin Selection
Brightness Bin Selection
Bin
WA
(Bluish
White)
White
X
0.20
0.27
0.31
0.31
0.24
Y
0.20
0.28
0.27
0.20
0.28
0.36
0.36
0.28
0.36
0.45
0.45
0.36
Bin
U
V
W
Range(mcd)
5515~7170
7170~9320
9320~12000
WB
(Pure
White)
0.32
0.36
0.36
0.29
WC
(Yellowish
White)
0.38
0.42
0.42
XX
All Range
Page 2 of 3
MEGA BRIGHT LED
BTL-52WHC-XX-X

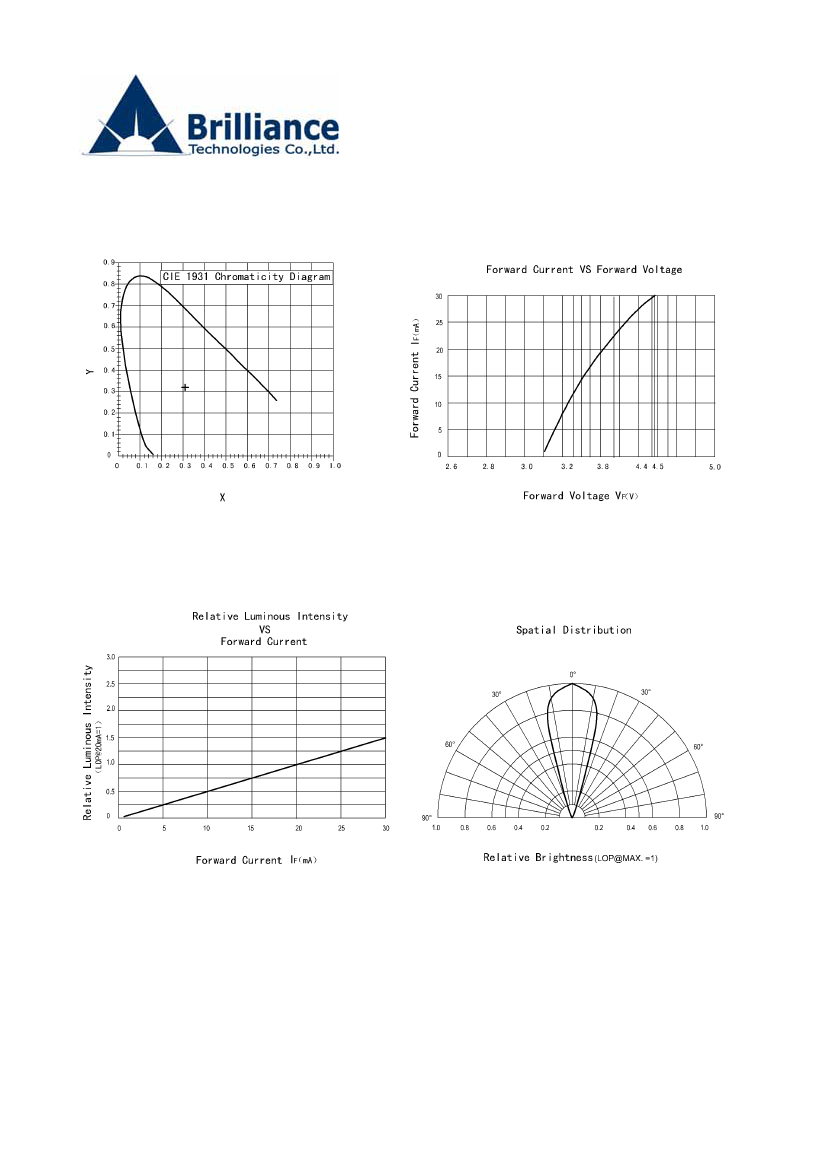

Typical Electro-Optical Characteristics Curves at T
a
=25℃
BT-Rev. 1.0a
Specifications are subject to change without notice.
Copyright © 2003 Brilliance Technologies Co., Ltd. All rights reserved.
Page 3 of 3
