BTL-32PGC-XX-S Overview

MEGA BRIGHT LED

Preview

Download Datasheet

View All

MEGA BRIGHT LED

BTL-32PGC-XX-X

Product Features

Ultra Bright Pure Green Color

High Light Output

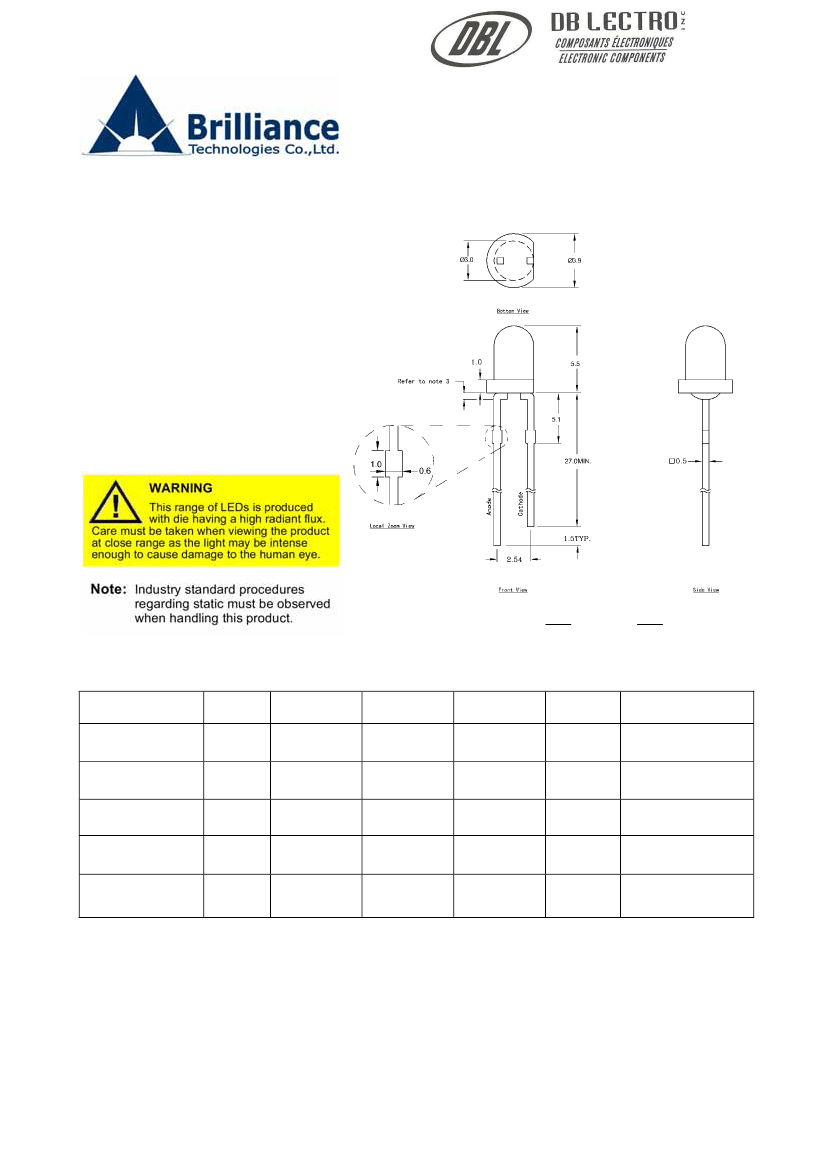

Package Dimension

3mm Diameter Circular Package

Water Clear Lens

Highly Reliable

IC Compatible

Leads without Stand Off

Applications

Automotive

Front Panel Indicator

Special Lighting

General Purpose LEDs

Tolerance:

inch

Unit:

0.01

0.25

Optical and Electrical Characteristics at T

=25℃

Parameter

Luminous

Intensity

Viewing Angle

Dominant

Wavelength

DC Forward

Voltage

DC Reverse

Current

Symbol

2θ½

Minimum

－

520

2.8

Typical

3000

525

3.5

－

Maximum

－

535

4.0

Units

mcd

deg

µA

Conditions

= 20mA

(Note 1)

= 20mA

(Note 2)

= 20mA

=5V

Notes:

Light intensity measures the light sensing response standard using chromatic meter. Refer to the CIE

eye-response curve set by International Lighting committee.

Tolerance of minimum and maximum

intensity = ± 15%

2. Wavelength range can be selected from the bin selection table. Tolerance of minimum and

maximum = ± 2nm

3. These products are sensitive to static electricity and care must be fully taken when handling

products

Page 1 of 3
