133729: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Solder Terminal, Jack,; CategoryThe connector The connector; File Size42KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

133729 Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Solder Terminal, Jack,

133729 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	4 PORTS, 8-POSITIONS EACH, PANEL MOUNTABLE, SHIELDED
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

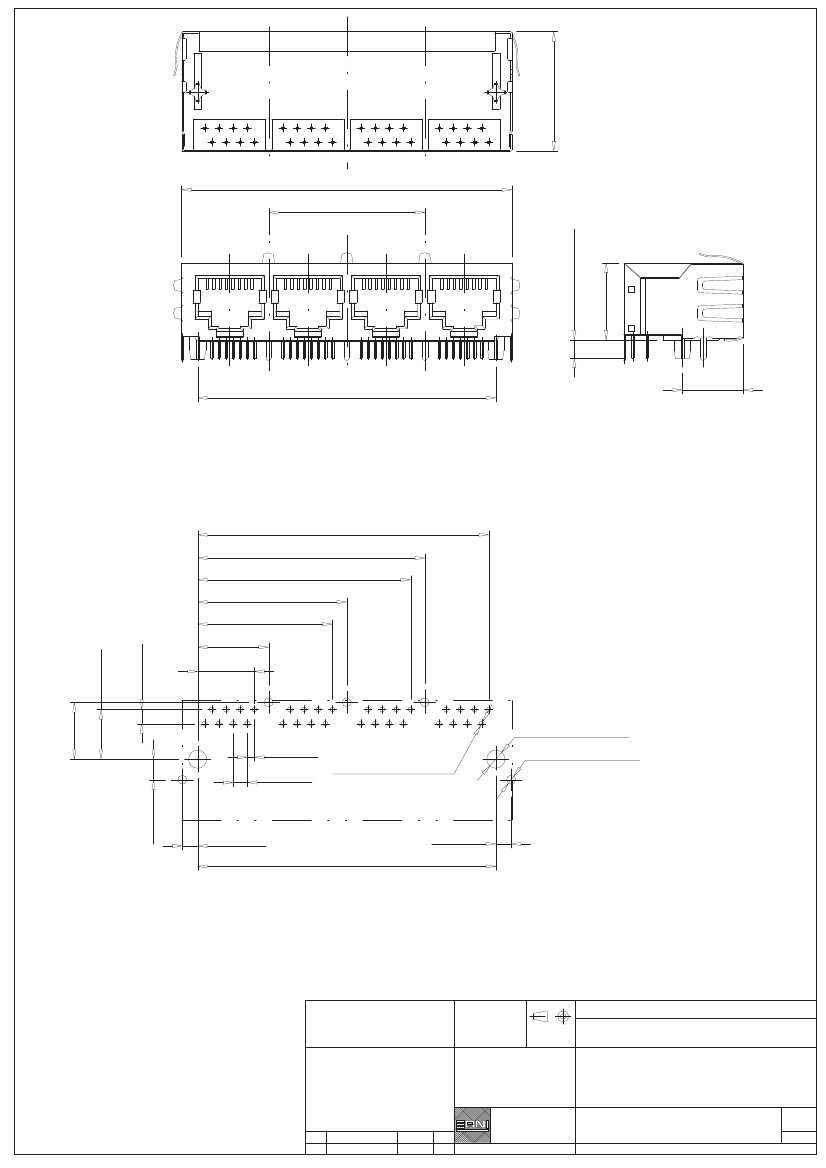

59.09 [2.326]

3 x 13.97[.550] = (27.94 [1.100])

21.39 [.842]

3.20±0.20 [.126±.008]

13.80 [.543]

53.34±0.13 [2.100±.005]

10.89 [.429]

RECOMMENDED PCB LAYOUT - COMPONENT SIDE VIEW

EMPFOHLENER FUER LEITERPLATTE - BESTUCKUNGSSEITE

ALL TOLERANCES

±0.05

[.002] UNLESS NOTED

52.07 [2.050]

40.64 [1.600]

38.10 [1.500]

26.67 [1.050]

24.13 [.950]

12.70 [.500]

8.89 [.350]

2.54 [.100]

10.16 [.400]

1.27 [.050]

2.54 [.100]

˚0.89±0.07 [

˚.035±0.003] X32

˚3.25±0.07 [

˚1.60±0.07 [

˚.128±0.003] X2

˚.063±0.003] X5

3.68 [.145]

2.73 [.107]

53.34 [2.100]

2.73 [.107]

MATERIALS AND FINISH

HOUSING: GLASS FILLED POLYESTER UL 94 V-0 BLACK

SHIELDING: Cu ALLOY, PLATED WITH Ni

CONTACTS: PHOSPHOR BRONZE

CONTACTS FINISH: Au, 0.8

µm

[30

µin]

TERMINAL FINISH: Sn

MECHANICAL CHARACTERISTICS

DURABILITY: 1000 MATING CYCLES

ELECTRICAL CHARACTERISTICS

CURRENT/VOLTAGE: 150 Vac @ 1.5 AMPS MAX @ 25˚C

DIELECTRIC WITHSTAND VOLTAGE: 1000 Vac RMS MIN., 60Hz

INSULATION RESISTANCE: 500 MEGAOHMS MIN.

CONTACT REISITANCE: 30 MILLIOHMS MAX

OPERATING TEMPERATURE: 0˚C TO 70˚C

NOTE 1: PANEL GROUND TOP, BOTTOM, SIDES (GF5)

NOTE 2: GROUNDING PIN BETWEEN EACH PORT (T)

Information:

Tolerances

All Dimensions

Scale

2:1

MAXCONN P.N.:

MJFS-G-88-4B-GF5T-52F3

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

in mm [in]

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

Consider protection memo from DIN 34

MOD JACK - MJIM

8P8C, 1X4, INTEGRATED MAGNETICS

ERNI Components

Rev.

26SEP02

Date

CHESTER, VA U.S.A.

Group/Type

133729

MAXM
