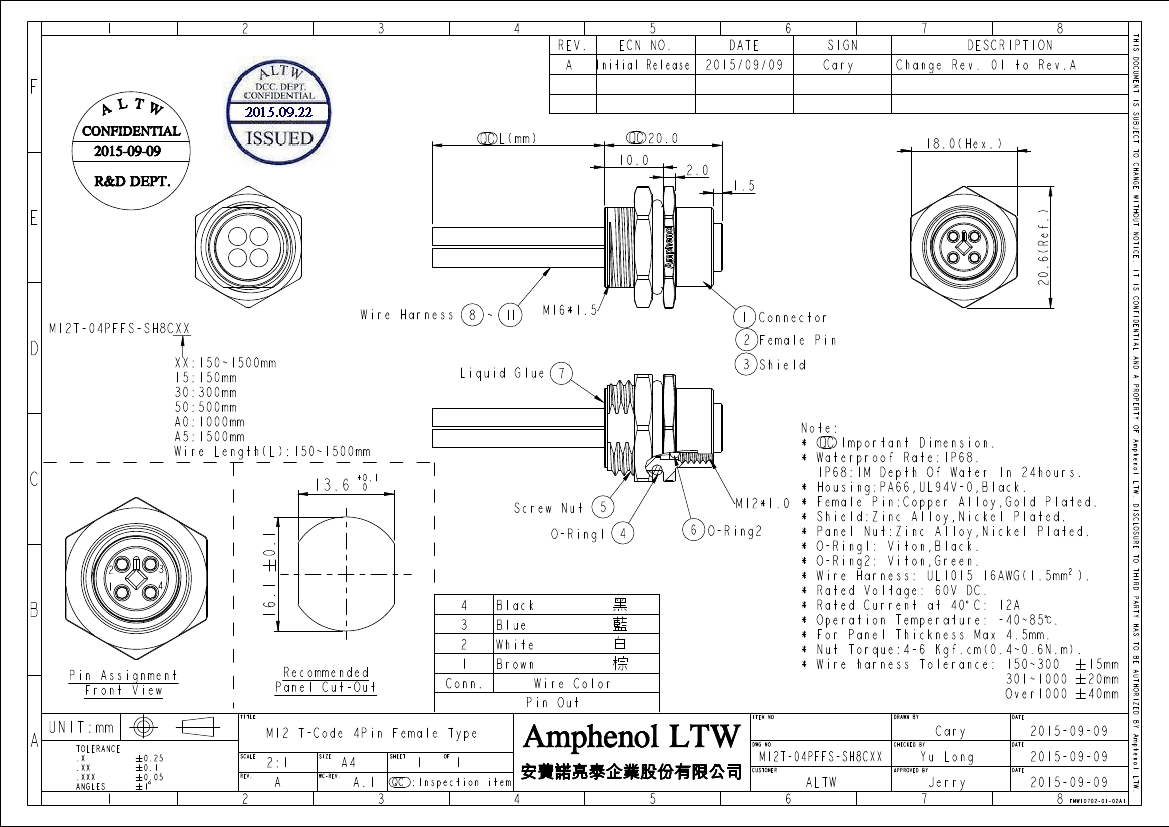

Wire Harness
M12T-04PFFS-SH8CXX
8 ~
11
M16*1.5
1 Connector
2 Female Pin
D
XX:150~1500mm
15:150mm
30:300mm
50:500mm
A0:1000mm
A5:1500mm
Wire Length(L):150~1500mm
Liquid Glue
7
3 Shield
20.6 (Ref.)
E
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
13.6
+0.1
0
Screw Nut
5
4
M12*1.0
6 O-Ring2
2
1
3
4
16.1
#
0.1
O-Ring1
B
4
3
2
1
Conn.
Black
Blue
White
Brown
Wire Color
Pin Out
黑
藍
½
Pin Assignment
Front View
Recommended
Panel Cut-Out
TITLE
棕
ITEM NO
Note:
* Important Dimension.
QC
* Waterproof Rate:IP68.
IP68:1M Depth Of Water In 24hours.
* Housing:PA66,UL94V-0,Black.
* Female Pin:Copper Alloy,Gold Plated.
* Shield:Zinc Alloy,Nickel Plated.
* Panel Nut:Zinc Alloy,Nickel Plated.
* O-Ring1: Viton,Black.
* O-Ring2: Viton,Green.
2
* Wire Harness: UL1015 16AWG(1.5mm ).
* Rated Voltage: 60V DC.
* Rated Current at 40°C: 12A
* Operation Temperature: -40~85℃.
* For Panel Thickness Max 4.5mm.
* Nut Torque:4-6 Kgf.cm（0.4~0.6N.m）.
* Wire harness Tolerance: 150~300
# 15mm
301~1000 # 20mm
Over1000 # 40mm
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
M12 T-Code 4Pin Female Type
SCALE
2:1
A
SIZE
A4
A.1
3
SHEET
1
OF
Amphenol LTW
4
5
Cary
DWG NO
CHECKED BY
DATE
2015-09-09
2015-09-09
DATE
Amphenol LTW.
1
M12T-04PFFS-SH8CXX
CUSTOMER
Yu Long
APPROVED BY
REV.
WC-REV.
QC :Inspection item
ALTW
6
7
Jerry
1
2
2015-09-09
8
FMW10702-01-02A1
