Lead-free
BAS70TW /DW-04 /
DW-05 /DW-06 /BRW

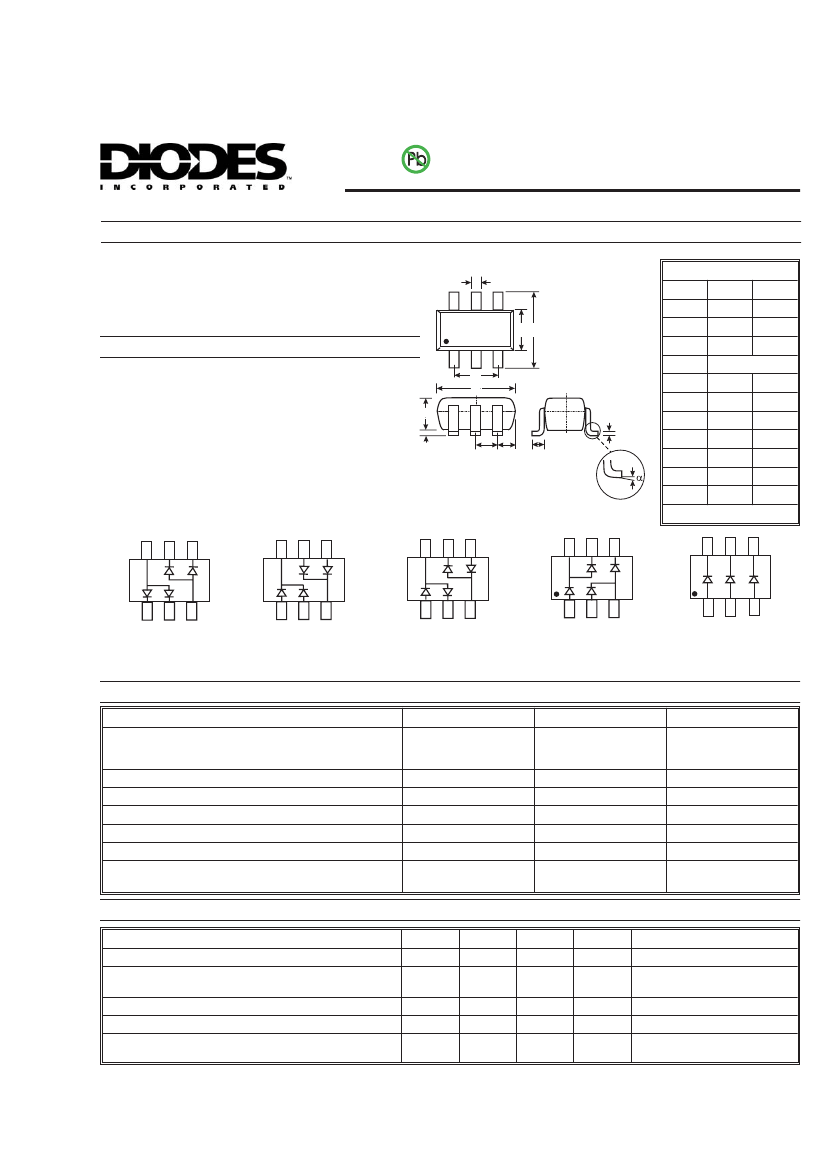

SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
Features
·
·
·
·
·
·
·
·
·
·
·
·
·
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Lead Free/RoHS Compliant (Note 3)
TOP VIEW
B C
SOT-363
A
Dim
A
B
C
D
Min
0.10
1.15
2.00
0.30
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
8°
Mechanical Data
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed
over Alloy 42 leadframe).
Orientation: See Diagrams Below
Marking: See Diagrams Below & Page 3
Weight: 0.006 grams (approximate)
A
1
0.65 Nominal
G
H
K
M
F
H
J
K
L
M
a
J
D
F
L
All Dimensions in mm
A
2
AC
1
C
2
C
2
C
1
A
2
C
2
A
2
AC
1
C
1
C
2
C
1
C
2
C
3
C
1
C
1
A
2
A
1
A
1
C
2
A
1
C
1
AC
2
A
1
A
2
AC
2
A
1
A
2
A
3
BAS70DW-06*
Marking: K76
BAS70DW-05*
Marking: K71
BAS70DW-04*
Marking: K74
BAS70BRW
Marking: K75
BAS70TW
Marking: K73
*Symmetrical configuration, no orientation indicator.
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
P
d
R
qJA
T
j
T
STG
Value
70
49
70
100
200
625
-55 to +125
-65 to +125
Unit
V
V
mA
mA
mW
°C/W
°C
Electrical Characteristics
@ T
A
= 25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
70
¾
¾
¾
¾
Max
¾
410
1000
100
2.0
5.0
Unit
V
mV
mV
nA
pF
ns
Test Condition
I
R
= 10mA
t
p
<300µs, I
F
= 1.0mA
t
p
<300µs, I
F
= 15mA
t
p
< 300µs, V
R
= 50V
V
R
= 0V, f = 1.0MHz
I
F
= I
R
= 10mA to I
R
= 1.0mA,
Irr = 0.1 x I
R
, R
L
= 100W
1. Part mounted on FR-4 board with recommended pad layout, which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
2. Short duration test pulse used to minimize self-heating effect.
3. No purposefully added lead.
DS30158 Rev. 10 - 2
1 of 3
www.diodes.com
BAS70TW /DW-04 /DW-05 /DW-06 /BRW
ã
Diodes Incorporated
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
100
T
A
= 125ºC
T
A
= 75ºC
T
A
= 25ºC
10
1.0
T
A
= 0ºC
0.1
0
0.2
0.4
T
A
= -40ºC
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

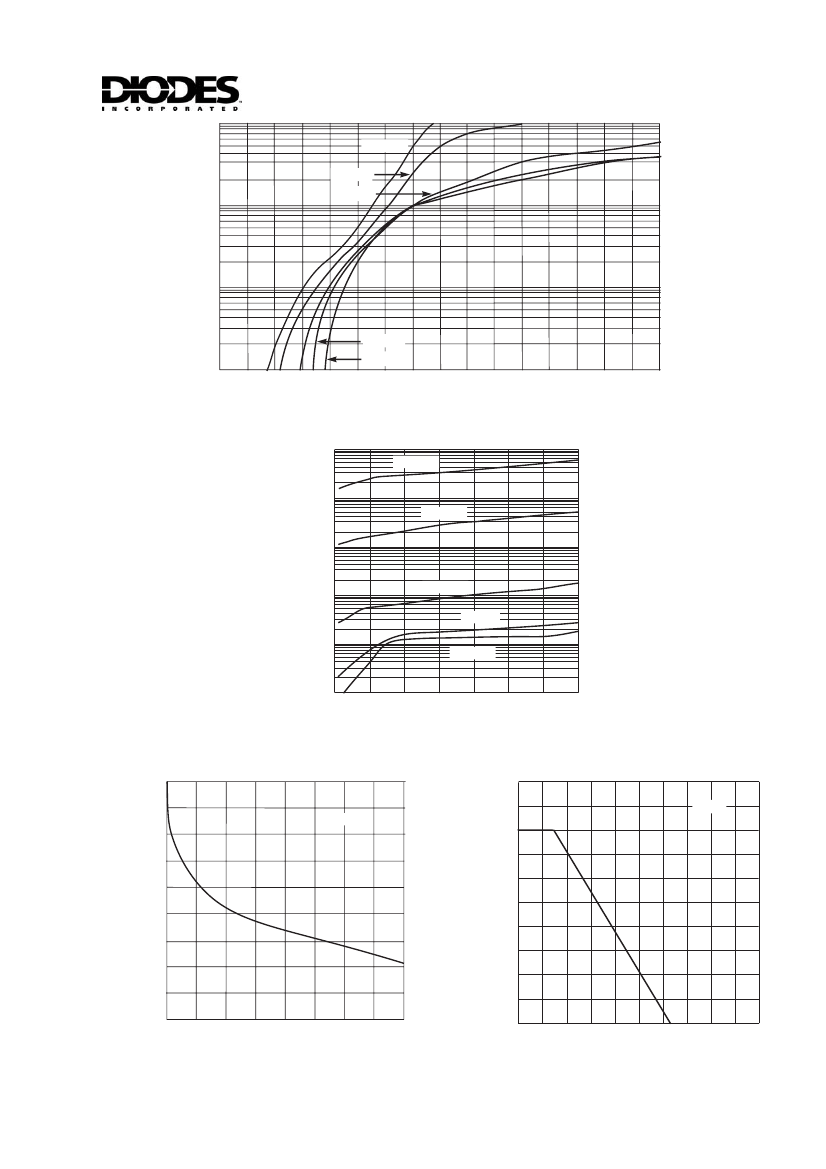

Fig. 1 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10000
T
A
= 125ºC
1000
T
A
= 75ºC
100
10
T
A
= 25ºC
T
A
= 0ºC
1
T
A
= -40ºC
0.1
0
10
20
30
40
50
60
70
V
R
, REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
1.8
1.6
250
Note 1
f = 1.0MHz
P
d
, POWER DISSIPATION (mW)
40
C
T
, TOTAL CAPACITANCE (pF)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
200
150
100
50
0
0
40
80
120
160
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 4 Power Derating Curve, Total Package
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance
DS30158 Rev. 10 - 2
2 of 3
www.diodes.com
BAS70TW /DW-04 /DW-05 /DW-06 /BRW
Ordering Information
Device
(Note 4)
Packaging
SOT-363
SOT-363
SOT-363
SOT-363
SOT-363
Shipping
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
BAS70DW-04-7-F
BAS70DW-05-7-F
BAS70DW-06-7-F
BAS70BRW-7-F
BAS70TW-7-F
Notes:
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KXX
KXX = Product Type Marking Code (See Page 1)
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
YM
2004
R
KXX
YM
Date Code Key
Year
Code
2001
M
2002
N
2003
P
Month
Code
Jan
1
Feb
2
3
YM
KXX
KXX = Product Type Marking Code (See Page 1)
For Symmetrical Configuration, No Orientation Indicator
YM = Date Code Marking
Y = Year ex: N = 2002
M = Month ex: 9 = September
2005
S
2006
T
2007
U
2008
V
2009
W
2010
X
2011
Y
2012
Z
March
Apr
4
May
5
Jun
6
Jul
7
Aug
8
Sep
9
Oct
O
Nov
N
Dec
D
